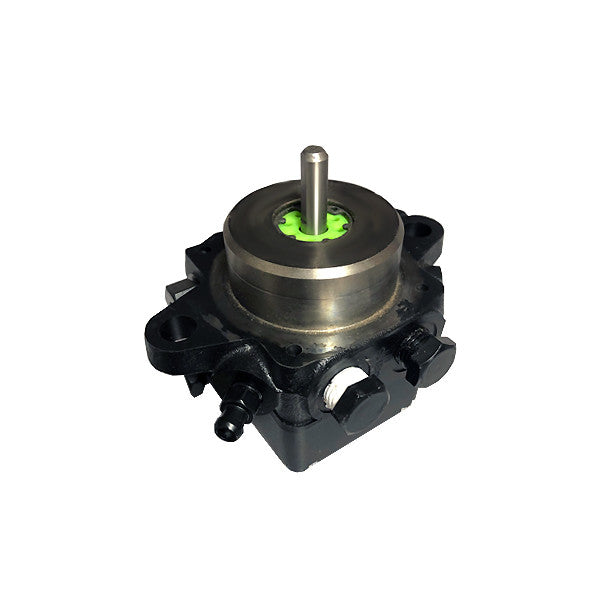

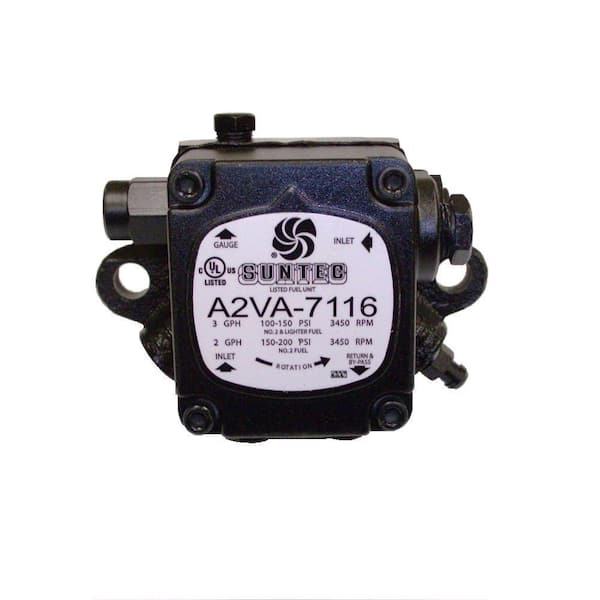

Suntec Industries A2VA-7116 Pump 1-Stage

Product Description

The SUNTEC INDUSTRIES A2VA-7116 is a 1-Stage oil burner pump used on oil burners. It features a strainer and nozzle rating of 3 GPH at 100 PSI and a speed rating of 3450 RPM. Compatible with kerosene and fuel oil, this pump is designed for easy installation and reliable performance in oil burner systems.

• Suitable for single-pipe installations to 6" Hg vacuum
• Capable of two-pipe installations to 12" Hg vacuum
• Designed for lift or gravity feed applications with 10 PSI maximum inlet/return pressure

Product Highlights

This oil burner pump is designed for use in oil burner systems and is compatible with kerosene and fuel oil.

Product Information

Standard Information

• Brand: SUNTEC INDUSTRIES
• Manufacturer Part Number: A2VA-7116

Technical Specifications

• Item: Pump, 1-Stage
• Used On: Oil Burner
• Speed Rating: 3450 RPM
• Strainer and Nozzle Rating: 3 GPH at 100 PSI
• Manufacturer Name: Suntec Industries
• Manufacturer Part Number: A2VA-7116
• Series/Model: A-7000
• UNSPSC Code: 40101800
• Features/Benefits: 1-Pipe Installation to 6 Inch Hg Vacuum; 2-Pipe Installation to 12 Inch Hg Vacuum; Lift or Gravity Feed Application with 10 PSI Maximum Inlet/Return Pressure; Mounting in any Position; Factory-Set at 100 PSI
• Single Stage: Single Stage
• 20% Bio Fuel: 20% Bio Fuel
• Right Hand Rotation (Viewed From The Shaft End), Right Hand Nozzle Port: Right Hand Rotation (Viewed From The Shaft End), Right Hand Nozzle Port
• Hub 54 mm, Lip Seal: Hub 54 mm, Lip Seal
• Mounting Style Standard (29 and Under): Mounting Style Standard (29 and Under)
• 100-200 PSI Rated (Factory Preset At 100 PSI): 100-200 PSI Rated (Factory Preset At 100 PSI)
