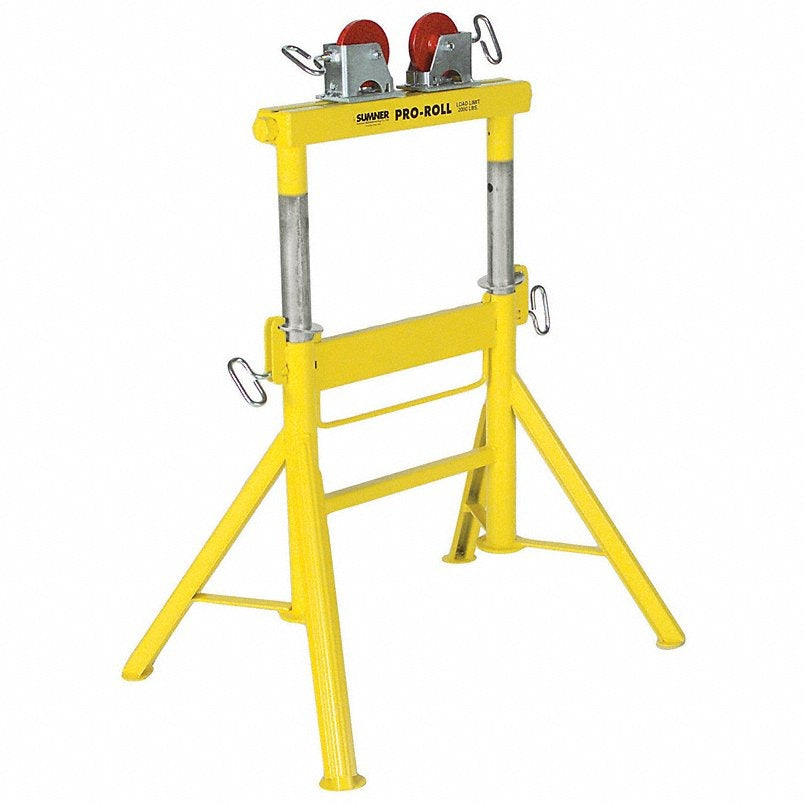

Sumner 4375swh Roller Head Pipe Stand 1000 Lb

Product Description

The SUMNER 4375swh is a straight roller head pipe stand designed to support, position, and rotate pipe during threading, roll grooving, welding, and fitting assembly. The straight-beam roller head allows the rollers to slide laterally, centering pipe on the stand and accommodating a range of pipe diameters. The head adjusts up or down to set pipe at a comfortable working height and to align pipe ends for welding or fittings. The stand is constructed of metal and carries a maximum load capacity of 1,000 pounds. It is used by pipefitters, welders, and plumbers in both shop and field environments.

This pipe stand is suited for residential and commercial piping work where controlled pipe rotation and stable support are needed. Typical applications include pipe threading operations, roll grooving prep, and alignment work before welding or installing couplings and fittings. Two or more stands are generally required to support a full pipe length, spaced along the run to keep the pipe level and stable during fabrication or assembly.

Key Features

• Straight roller head with laterally adjustable rollers to center various pipe diameters
• Pipe rotates freely with the rollers to ease threading and roll grooving operations
• Adjustable leg allows height changes to set proper working elevation and align pipe ends
• 1,000 lb maximum load capacity for heavy pipe support
• Metal construction for durability in shop and field use
• Wide base design resists tipping on level, flat, solid surfaces

Compatibility

Designed as an OEM-style replacement or direct-use pipe stand suitable for general pipefitting and welding support applications across a range of pipe diameters.

Installation Notes

Pipe stands should be placed on a level, flat, solid floor to ensure stable footing and prevent tipping. Use two or more stands spaced appropriately along the pipe length to distribute load evenly. No power source is required, but always confirm the stand is fully locked at the desired height before loading pipe. Installation and pipe fabrication work should comply with applicable mechanical and plumbing codes.

Technical Specifications

• Head Type: Straight Roller Head
• Max Load Capacity: 1000 pounds
• Leg Type: Adjustable
• Material: Metal

Standard Information

• Brand: SUMNER
• Manufacturer Part Number: 4375swh
