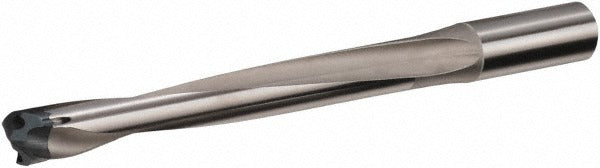

Sumitomo 5L00W07 Replaceable-tip Drill 13.5-14.5mm

Product Description

The SUMITOMO 5L00W07 is a replaceable-tip drill body engineered for precision hole-making in metalworking and industrial machining applications. Built from steel, this drill accepts SMDT-style indexable inserts to deliver consistent bore diameters ranging from 13.5 mm (0.5315 inches) to 14.5 mm (0.5709 inches). It achieves a maximum drill depth of 4.961 inches, with an 8xD depth-to-diameter ratio suited for deeper drilling cycles without a dedicated deep-hole setup. Through-coolant capability channels cutting fluid directly to the tip, managing heat and chip evacuation in demanding operations. The overall length is 7.48 inches, with a 3/4-inch whistle notch shank for secure toolholder engagement.

This drill body is intended for use in CNC machining centers and turning centers where indexable-insert drills are preferred over solid-carbide tooling for cost-per-hole efficiency. The 8xD depth ratio makes it well suited for deep-hole drilling cycles in steel, cast iron, and similar workpiece materials. It is compatible with SMDH-style toolholders and is installed by machinists, toolroom technicians, and CNC setup personnel in production and job-shop environments. The whistle notch shank ensures positive rotational drive and axial positioning in the spindle or turret.

Key Features

• Replaceable SMDT indexable insert tip allows quick tip changes without removing the drill body from the machine
• Through-coolant design directs coolant to the cutting zone for improved chip evacuation and tool life
• 8xD depth-to-diameter ratio supports drilling up to 4.961 inches deep in a single setup
• 3/4-inch whistle notch shank provides secure, repeatable positioning in SMDH-style toolholders
• Covers a diameter range of 13.5 mm to 14.5 mm with appropriate SMDT insert selection
• Steel body construction balances rigidity and weight for stable high-feed drilling operations

Compatibility

Designed for use with SMDT-style replaceable-tip inserts and SMDH-series toolholders. Part of the SMD drill series.

Installation Notes
