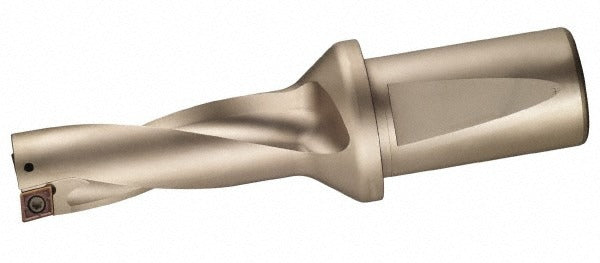

Sumitomo 2A00W2J Indexable Insert Drill 7/8 in 3xd Wdx

Product Description

The SUMITOMO 2A00W2J is a WDX-series indexable insert drill designed for general-purpose drilling in metal cutting applications. The body is built from steel and accepts two WDXT-style inserts, delivering a drill diameter of 0.875 inches with a maximum drill depth of 2.743 inches, representing a 3xD depth-to-diameter ratio. The straight cylindrical shank measures 1 inch in diameter and 2.5 inches in length, making it compatible with standard drill chucks and toolholders used in machining centers and CNC lathes. Coolant-through capability via a 1/4 NPT coolant hole thread supports chip evacuation and tool life in production environments.

This drill is suited for right-hand cutting operations in general-purpose drilling setups on machining centers and similar CNC equipment. The 3xD ratio makes it appropriate for moderate-depth hole applications in steel, cast iron, and similar workpiece materials where controlled chip flow and stable insert seating are required. The modular connection size of 1 inch allows integration with compatible tooling systems. Machinists and CNC operators working in job shops and production facilities will find this drill body suitable for standard through-hole and blind-hole applications.

Key Features

• WDX series steel drill body accepts two WDXT 063006 indexable inserts for repeatable cutting geometry
• Drill diameter of 0.875 inches with a 3xD maximum drill depth of 2.743 inches
• Straight cylindrical shank at 1 inch diameter for compatibility with standard toolholders
• Coolant-through design with 1/4 NPT coolant hole thread supports chip removal and heat management
• Right-hand cutting direction for standard CNC machining center spindle rotation
• Collar diameter of 1.299 inches provides positive stop and accurate axial positioning

Compatibility

Compatible insert style is WDXT, specifically WDXT 063006. The modular connection size is 1 inch. Designed as an OEM-style replacement or production tooling option for setups requiring WDX-series indexable insert drills.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the control is in an safe state before loading or changing the tool body or inserts. Verify toolholder runout and retention torque per the machine and toolholder manufacturer specifications before cutting. Follow all applicable shop safety protocols when handling indexable carbide inserts.
