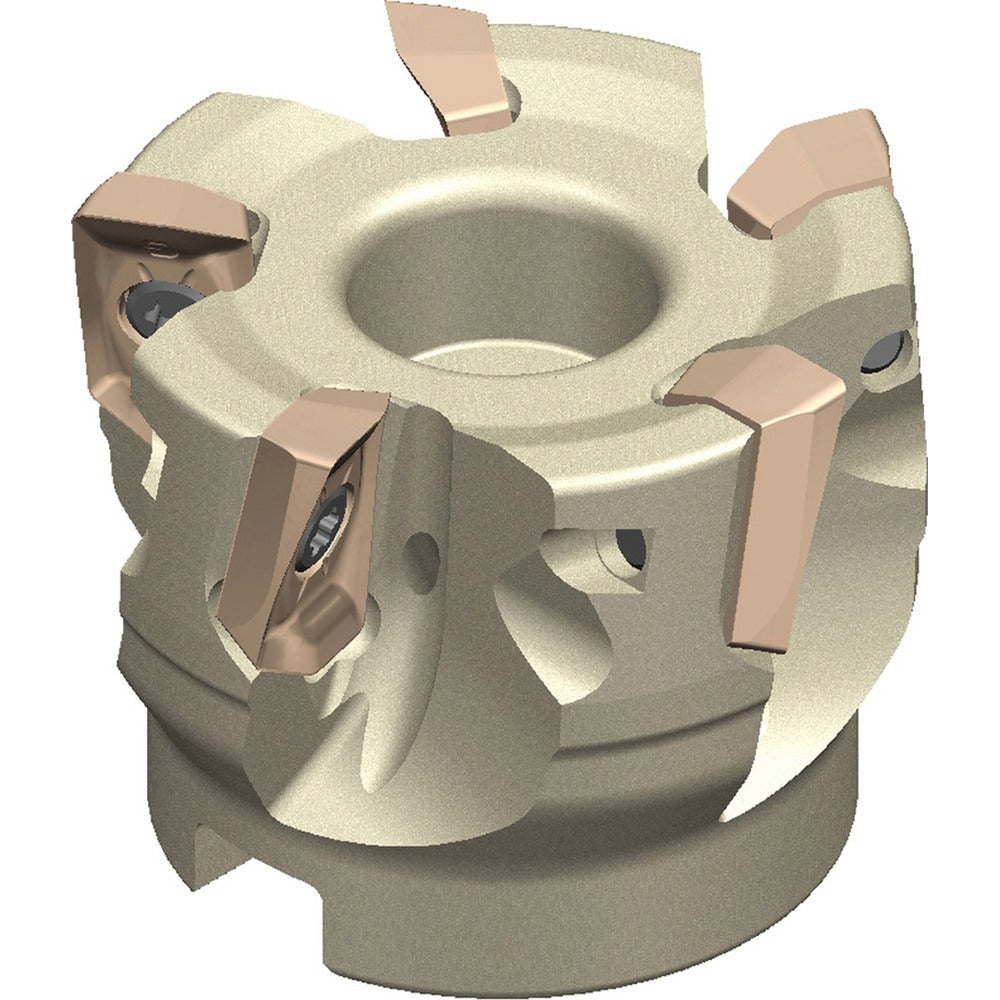

Sumitomo 2200WNB Square-shoulder Face Mill 2in 5 Insert

Product Description

The SUMITOMO 2200WNB is an indexable square-shoulder face mill designed for precision milling operations in metalworking and machining applications. Built on the WEZ cutter style platform, this tool accepts AOMT17 and AOET17 insert sizes and holds up to 5 inserts using a clamp and screw holding method. It delivers a maximum cutting diameter of 2 inches and a maximum depth of cut of 0.591 inches, making it well suited for shoulder milling, face milling, and step milling on steel and similar workpiece materials. The toolholder body is constructed from steel for rigidity and durability under continuous cutting loads. Coolant-through capability supports chip evacuation and thermal management during high-feed passes.

This face mill is intended for use on CNC machining centers and manual milling machines equipped with a 3/4-inch arbor. The right-hand cutting direction and 90-degree lead angle produce true square shoulders, which is critical for part features requiring perpendicular walls relative to the machined face. It is well suited for production and job-shop environments where consistent shoulder geometry and insert changeability are priorities. Machinists, tool-and-die makers, and CNC operators working on steel and similar materials will find this cutter a practical fit for standard roughing and semi-finishing passes.

Key Features

• 2-inch maximum cutting diameter with 90-degree lead angle for true square-shoulder profiles
• Accepts AOMT17 and AOET17 insert sizes for broad insert availability
• 5-insert capacity with clamp and screw holding method for secure insert retention
• Coolant-through design aids chip removal and controls heat at the cutting zone
• Right-hand cutting direction; WEZ series cutter style
• Steel toolholder construction for rigidity and resistance to deflection

Compatibility

Compatible insert size codes are AOMT17 and AOET17. Manufacturers catalog number for this cutter body is WEZ32000R05. Verify arbor and spindle interface dimensions before installation to confirm fitment with your specific machine spindle.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician familiar with rotating cutting tools and machine tool setup procedures. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter. Torque all insert clamping screws to the toolholder manufacturer specifications using the appropriate Torx or hex key supplied with the inserts. Confirm runout with a dial indicator after mounting before taking the first cut.
