Sumitomo 1PZCW02 Milling Insert Solid Carbide Rectangle

Product Description

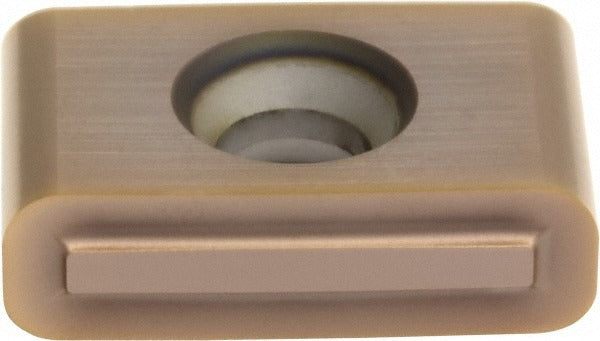

The SUMITOMO 1PZCW02 is a solid carbide milling insert designed for precision metal removal in milling applications. Featuring an LNGX insert style with a rectangular shape, this insert measures 0.6250 inches in length, 0.3750 inches in width, and 0.1870 inches in thickness. The corner radius of 0.0630 inches provides controlled edge geometry suited for consistent chip formation. With an included angle of 90 degrees and a cutting edge effective length of 0.6250 inches, this insert is intended for use in compatible milling cutter bodies by qualified machinists and tool-room technicians working in production or job-shop environments.

This insert is suited for milling operations where solid carbide tooling is required for hardness, wear resistance, and dimensional stability. The LNGX insert style and size code 1605 place it in a standard indexable insert family used across a range of face milling and shoulder milling setups. It is compatible with the GFV cutter series and is appropriate for use in CNC machining centers and manual milling machines where indexed replaceable inserts are specified. Thickness falls within the 0.1850 to 0.2000 inch range and length within 0.6000 to 0.6500 inches per insert size specification.

Key Features

• Solid carbide construction for high hardness and wear resistance in demanding milling operations
• LNGX insert style with rectangular shape and 90-degree included angle for shoulder and face milling geometry
• Cutting edge effective length of 0.6250 inches with a 0.0630-inch corner radius
• Insert size code 1605 with length range 0.6000 to 0.6500 inches and thickness range 0.1850 to 0.2000 inches
• Compatible with GFV cutter series for direct indexable tool body fitment
• Manufacturer grade K246L9 for traceability and grade-specific application matching

Compatibility

Designed for use with the GFV cutter series. Insert size code 1605 and LNGX style govern seat and pocket compatibility in indexable milling cutter bodies accepting this insert geometry.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the cutter body is fully secured and the machine spindle is locked out before seating or indexing inserts. Use the correct torx or hex key specified for the cutter body clamp screw and tighten to the cutter manufacturer's fastener specification. Inspect the insert seat and clamp pocket for chips or debris before seating a new insert to prevent improper seating and premature edge failure.
