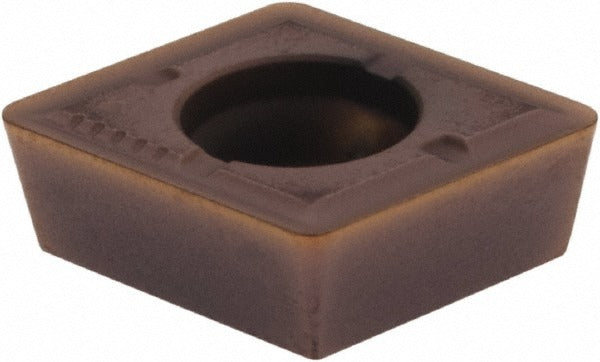

Sumitomo 1AHB022 Indexable Drill Insert WDXT09G ACP300

Product Description

The SUMITOMO 1AHB022 is a solid carbide indexable drill insert designed for use in indexable drilling operations requiring precise, repeatable cutting performance. Manufactured to the WDXT09 insert style in grade ACP300, this insert features a PVD coating applied over a solid carbide substrate for improved wear resistance and edge retention across a broad range of workpiece materials. The insert has an inscribed circle of 0.378 inches, a thickness of 0.1575 inches, and a corner radius of 0.0315 inches. The parallelogram shape and G chipbreaker geometry are suited for controlled chip evacuation during drilling. Installation is performed by qualified machinists or tooling technicians.

This insert is intended for use in indexable drill toolholders that accept WDXT09-series inserts. It is rated for universal primary workpiece material compatibility, covering material codes K, M, N, P, and S, which correspond to cast iron, stainless steel, non-ferrous materials, steel, and heat-resistant superalloys respectively. The right-hand cutting direction makes it suitable for standard spindle rotation on CNC machining centers, lathes with live tooling, and dedicated drill presses running conventional setups.

Key Features

• Solid carbide substrate with PVD coating for extended tool life and thermal stability
• ACP300 manufacturer grade rated for universal workpiece material compatibility
• WDXT09 insert style with G chipbreaker for effective chip control during drilling
• 0.0315 inch corner radius reduces edge chipping on entry and exit
• Parallelogram insert shape with right-hand cutting direction
• Insert size code 09, with 0.378 inch inscribed circle geometry

Compatibility

Designed as an OEM-style replacement or spare insert for indexable drill toolholders accepting WDXT09-series solid carbide inserts in the 09 insert size.

Installation Notes

This insert is installed and indexed by tooling technicians or machinists following machine downtime and spindle lockout procedures. Use the correct torque wrench and insert screw specified by the toolholder manufacturer when seating the insert. Inspect the insert pocket and clamping screw for wear or damage before installing a new insert. Do not exceed the cutting parameters specified in the toolholder manufacturer documentation for the WDXT09 insert size.
