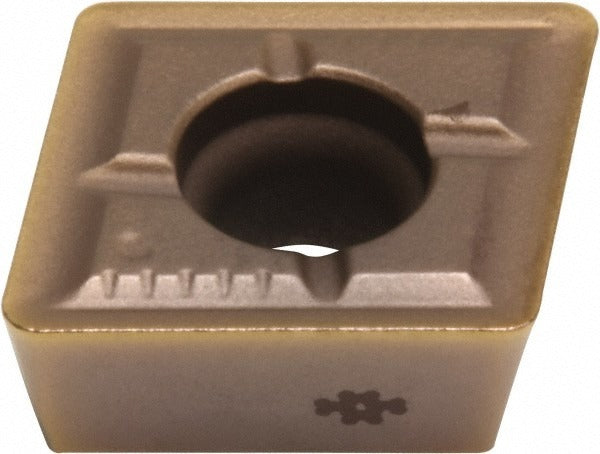

Sumitomo 1AHB017 Indexable Drill Insert WDXT06L ACP300

Product Description

The SUMITOMO 1AHB017 is a solid carbide indexable drill insert designed for use in indexable insert drills across a range of machining applications. Built to the WDXT06L style in manufacturer grade ACP300, this parallelogram-shaped insert features a 0.2362 inch inscribed circle, a 0.1181 inch thickness, and a 0.0236 inch corner radius. The TiAlN and AlCrN dual-coating is applied via PVD process, providing high heat resistance and wear performance in demanding cutting environments. Machinists and CNC operators working in job shops, production facilities, or maintenance machining environments are the primary installers of this insert type.

This insert is suited for universal workpiece material applications, covering material grade classifications C5, C5A, and C6, with primary workpiece material codes K, M, N, P, and S. That range spans cast iron, stainless steel, non-ferrous metals, steel, and heat-resistant superalloys. The L chipbreaker geometry supports chip control across this broad material spectrum. Insert size code is 06, corresponding to an insert size designation of 063006. It is sold individually but must be ordered in multiples of 10.

Key Features

• WDXT06L insert style in parallelogram shape for use in compatible indexable drill bodies
• ACP300 grade solid carbide substrate with PVD-applied TiAlN and AlCrN coating for extended tool life
• 0.2362 inch inscribed circle and 0.1181 inch thickness for precise seating and cutting geometry
• 0.0236 inch corner radius for controlled edge engagement
• L chipbreaker optimized for universal material grades including steel, stainless, cast iron, non-ferrous, and superalloys
• Lightweight at 0.04 pounds, minimizing mass at the cutting zone

Compatibility

Designed as an OEM-style replacement or equivalent insert for indexable drill systems accepting WDXT06L style inserts with insert size code 06.

Installation Notes

Insert indexing and replacement should be performed by qualified machinists or CNC tooling technicians with the machine powered down and spindle locked. Use the appropriate torx or hex key as specified by the drill body manufacturer to achieve proper clamping torque — do not overtighten or undertighten the insert screw. Inspect the insert pocket for chips or debris before seating the new insert. Always verify insert orientation and chipbreaker direction before resuming cutting operations.
