Sumitomo 19T2226 Carbide Turning Insert CNMA544 AC4015K

Product Description

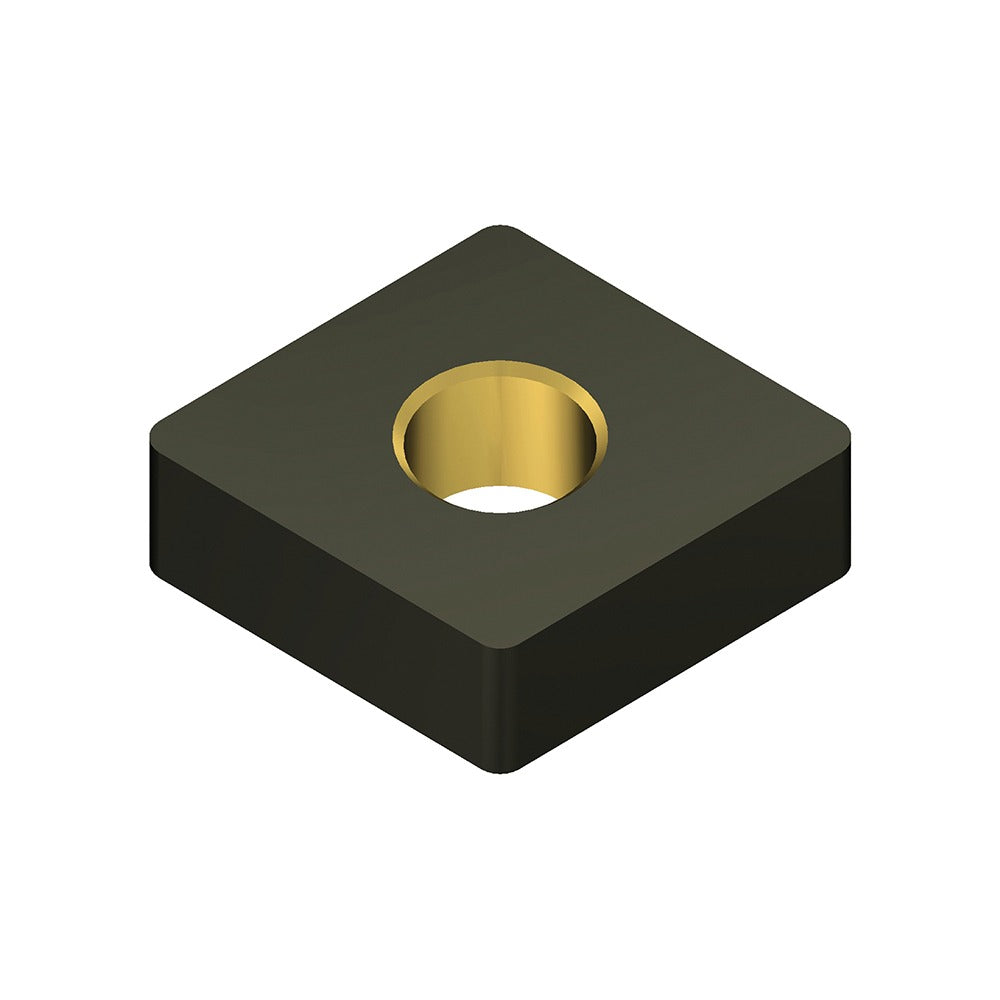

The SUMITOMO 19T2226 is a CNMA544 carbide turning insert graded AC4015K, designed for high-wear-resistance to moderate-wear-resistance and toughness applications in cast iron machining. It features an 80-degree diamond (rhombic) insert shape with a 5/8 inch inscribed circle and a 1/16 inch corner radius. The insert carries a CVD-applied Al2O3/TiCN multilayer coating under the proprietary Super FF designation, providing thermal resistance and extended tool life on K-grade workpiece materials. Insert thickness is 0.25 inches with a flat top chip breaker geometry and negative rake and side clearance. This insert is used by CNC machinists and toolroom operators running turning centers and engine lathes.

This insert is suited for external and internal turning operations on cast iron workpieces in production and job-shop environments. The AC4015K grade is positioned for K15 material applications, targeting conditions that range from high-wear to moderate-wear with acceptable toughness. The flat top chip breaker and negative rake geometry are well matched to interrupted and semi-continuous cuts typical in cast iron turning. It is held in the toolholder by pin or screw clamping methods compatible with CNMA-style pockets.

Key Features

• AC4015K grade carbide with CVD Al2O3/TiCN multilayer coating for cast iron turning
• 80-degree diamond (C-shape) insert geometry with negative rake and negative side clearance
• 5/8 inch (0.6250 inch) inscribed circle for standard CNMA toolholder pockets
• 1/16 inch corner radius for general-purpose finish and semi-finish turning
• Flat top chip breaker supports consistent chip control on K-grade materials
• Compatible with pin and screw clamping insert holding methods

Compatibility

Designed for use in CNMA-style toolholders accepting a 544 ANSI size code insert (ISO size code 160616). Tolerance code M and clearance code N apply. Pin or screw clamping holding methods are required. Hole diameter is 6.35 mm for pin-lock toolholders.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. The machine spindle must be stopped and the toolholder fully de-energized before seating or removing the insert. Ensure the toolholder pocket is clean and free of chips or debris before clamping to maintain accurate insert seating. Torque the clamping screw or pin to the toolholder manufacturer specification; do not exceed the recommended clamping force to avoid insert fracture.
