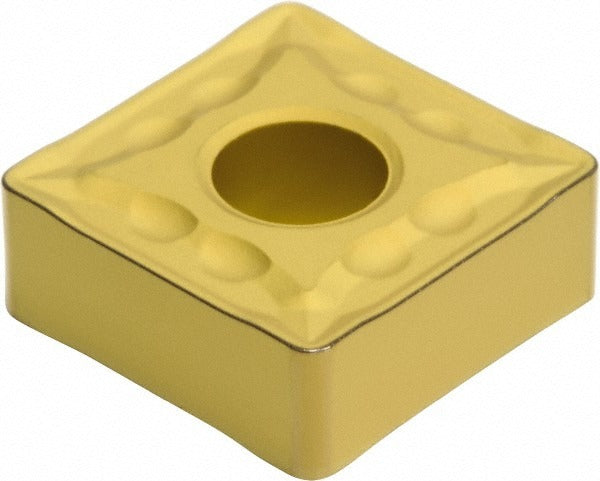

Sumitomo 19PWAFG Turning Insert SNMG432 AC630M Carbide

Product Description

The SUMITOMO 19PWAFG is a SNMG432 indexable turning insert designed for precision metal cutting in CNC lathe and turning center applications. Built from solid carbide with a chemical vapor deposition (CVD) Al2O3 coating, this insert carries the AC630M grade designation, which is engineered for moderate wear resistance and toughness in stainless steel machining. The insert features a neutral hand orientation, a 0.5000 inch inscribed circle, a 1/32 inch corner radius, and a 90-degree square shape with a negative side clearance and positive rake angle of 4 degrees. The EMU chip breaker geometry supports light to medium machining operations.

This insert is suited for turning stainless steel workpieces in production and job shop environments. The AC630M grade targets ISO material group M applications, making it a practical choice when machinists need a balance of edge toughness and wear resistance during interrupted or continuous turning cuts. The SNMG432 form factor fits standard SNMG-style toolholders that accept clamp or pin holding methods. It conforms to ANSI insert code SNMG432 and ISO code SNMG120408, with the full ISO designation SNMG120408N-MU. Licensed machinists and CNC operators in production shops are the primary installers and users.

Key Features

• AC630M grade CVD Al2O3 coating for moderate wear resistance and toughness on stainless steel
• EMU chip breaker geometry supports light and medium machining operations
• Neutral hand insert fits a wide range of SNMG-style toolholders
• Positive rake angle of 4 degrees reduces cutting forces on difficult materials
• Conforms to ANSI and ISO 13399 standards for consistent toolholder fitment
• Square insert shape with 90-degree included angle provides up to 8 usable cutting edges

Compatibility

Designed for use in SNMG-style turning toolholders that accept clamp or pin insert holding methods and conform to ANSI size code 432 or ISO size code 120408. Compatible with toolholder systems designed for SNMG inserts with a 0.2031 inch hole diameter and 0.1875 inch insert thickness.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct clamp or pin hardware specified by the toolholder manufacturer to secure the insert at the proper clamping torque per the toolholder documentation. Inspect the toolholder pocket for debris or wear before seating a new insert to ensure accurate positioning and full edge engagement.
