Sumitomo 19HVWBD Turning Insert Tpmt 0.25 in Ic Carbide

Product Description

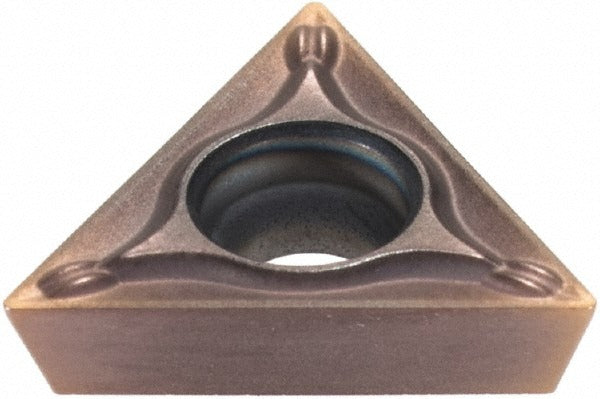

The SUMITOMO 19HVWBD is a solid carbide turning insert in the TPMT series, designed for precision external turning operations on CNC and manual lathes. It features a 60-degree triangular insert shape with a positive rake angle of 8 degrees and an 11-degree relief angle, delivering clean, efficient cutting action on difficult workpiece materials. The insert is coated with TiAlN and AlCrN via a PVD process under SUMITOMO's proprietary Super ZX coating designation, providing thermal and wear resistance suited to interrupted and continuous cuts. Installed by machinists and tool-room technicians, this insert seats via screw-lock (Torx or similar) into compatible TPMT-style toolholders.

The 19HVWBD is engineered for primary use on cast iron, stainless steel, and superalloy workpiece materials, corresponding to ISO material codes K, M, and S. The ESU chip breaker geometry supports finishing and light-to-medium roughing passes where chip control is critical. Typical applications include close-tolerance shaft turning, flange facing, and contour work on aerospace, medical, and industrial components where surface finish and dimensional accuracy are priorities. The insert conforms to ANSI code TPMT21.50.5ESU and ISO code TPMT110202N-SU, making it straightforward to cross-reference for toolholder selection.

Key Features

• Solid carbide substrate with TiAlN and AlCrN PVD dual-layer coating (Super ZX designation) for extended tool life on hard and abrasive materials
• ESU chip breaker geometry provides positive rake cutting action and reliable chip control in finishing to light roughing operations
• 60-degree triangular insert shape (TPMT style) with three usable cutting edges per insert
• 0.0078 inch corner radius delivers fine surface finish on ferrous and superalloy workpieces
• Screw-lock holding method (clearance code P, tolerance code M) for secure, repeatable seating in standard TPMT toolholders
• Compliant with ANSI and ISO 13399 standards, enabling direct integration with tool management systems

Compatibility

Designed for use in TPMT-style screw-lock turning toolholders accepting a 1/4 inch inscribed circle insert with a 3/32 inch insert thickness and a 0.1070 inch hole diameter. Verify toolholder pocket geometry against ANSI code TPMT21.50.5ESU or ISO code TPMT110202N-SU before installation.

Installation Notes
