Sumitomo 196DCNT SNMG643EEM AC6040M Carbide Turning Insert

Product Description

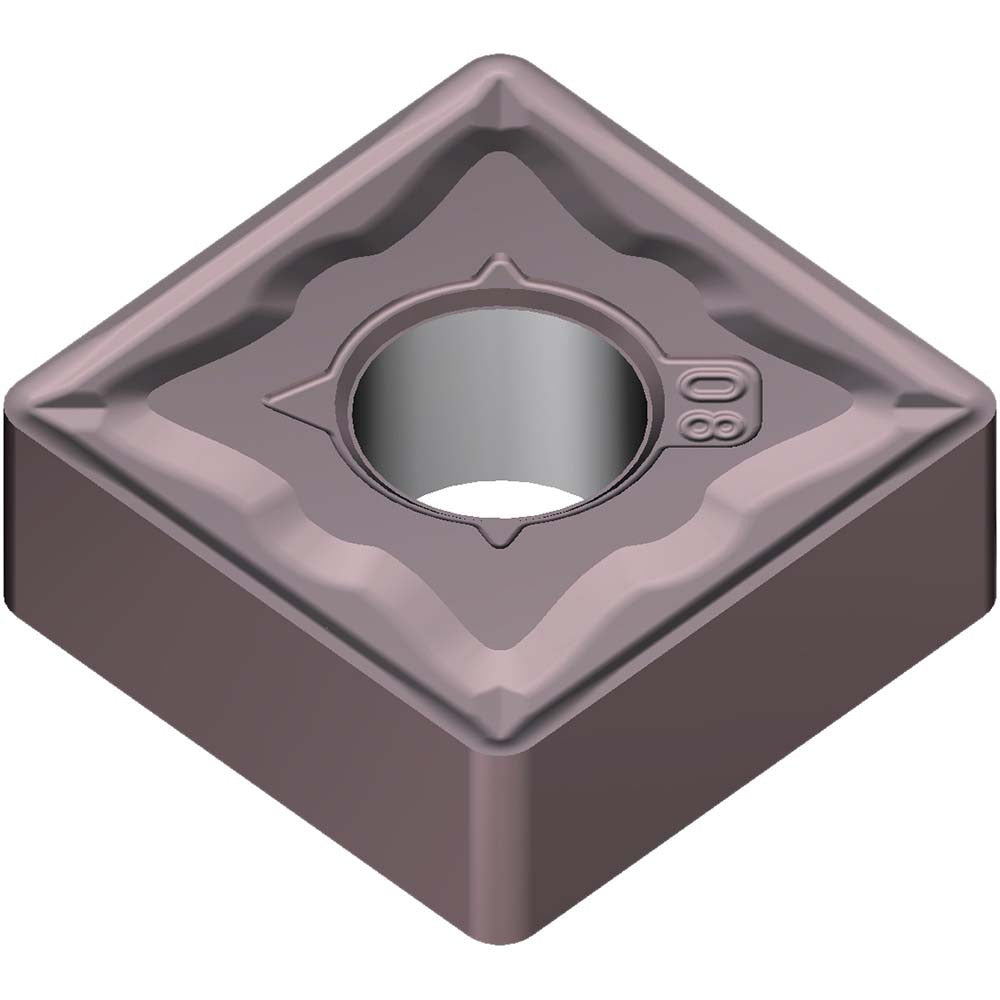

The SUMITOMO 196DCNT is a solid carbide turning insert in the SNMG643EEM configuration, ground to ANSI and ISO 13399 standards for precision metal cutting in CNC and manual turning applications. This insert features a 3/4-inch inscribed circle, a 3/64-inch (0.0469 inch) corner radius, and a 1/4-inch thickness. The AC6040M grade uses a PVD coating process, giving the cutting edge enhanced wear resistance and thermal stability. The negative rake geometry and square insert shape make it well suited for moderate to heavy interrupted and continuous cuts. Machinists and tooling technicians install and replace these inserts as part of a rotating tool management program.

This insert is designed primarily for turning stainless steel (ISO material code M). The SNMG style with EEM chip breaker geometry controls chip flow effectively at moderate feed rates and cutting depths typical in stainless steel finishing and semi-finishing passes. It mounts using a clamp and pin holding method, compatible with standard SNMG-style toolholders. The neutral hand orientation allows use in both left-hand and right-hand toolholder bodies.

Key Features

• AC6040M PVD-coated solid carbide grade optimized for stainless steel turning
• SNMG square insert shape with 90-degree included angle and negative rake for stable cutting
• EEM chip breaker geometry for controlled chip formation in stainless steel applications
• 3/4-inch inscribed circle and 3/4-inch insert length for consistent tool engagement
• Clamp and pin holding method for secure seating in SNMG-compatible toolholders
• Conforms to ANSI and ISO 13399 standards; ISO code SNMG190612N-EM

Compatibility

Designed as an OEM-style replacement insert for SNMG-style toolholders accepting a 3/4-inch inscribed circle square insert with a 0.3126-inch hole diameter and clamp-and-pin holding. Verify toolholder pocket geometry and clamping system before installation.

Installation Notes

Carbide turning inserts are replaced by a machinist or tooling technician during scheduled insert indexing or replacement. Power down and lock out the machine spindle before accessing the toolholder. Use the manufacturer-recommended torque wrench and clamp screw to seat the insert; do not over-torque the clamping pin or clamp screw. Inspect the toolholder pocket for chips or damage before seating a new insert.
