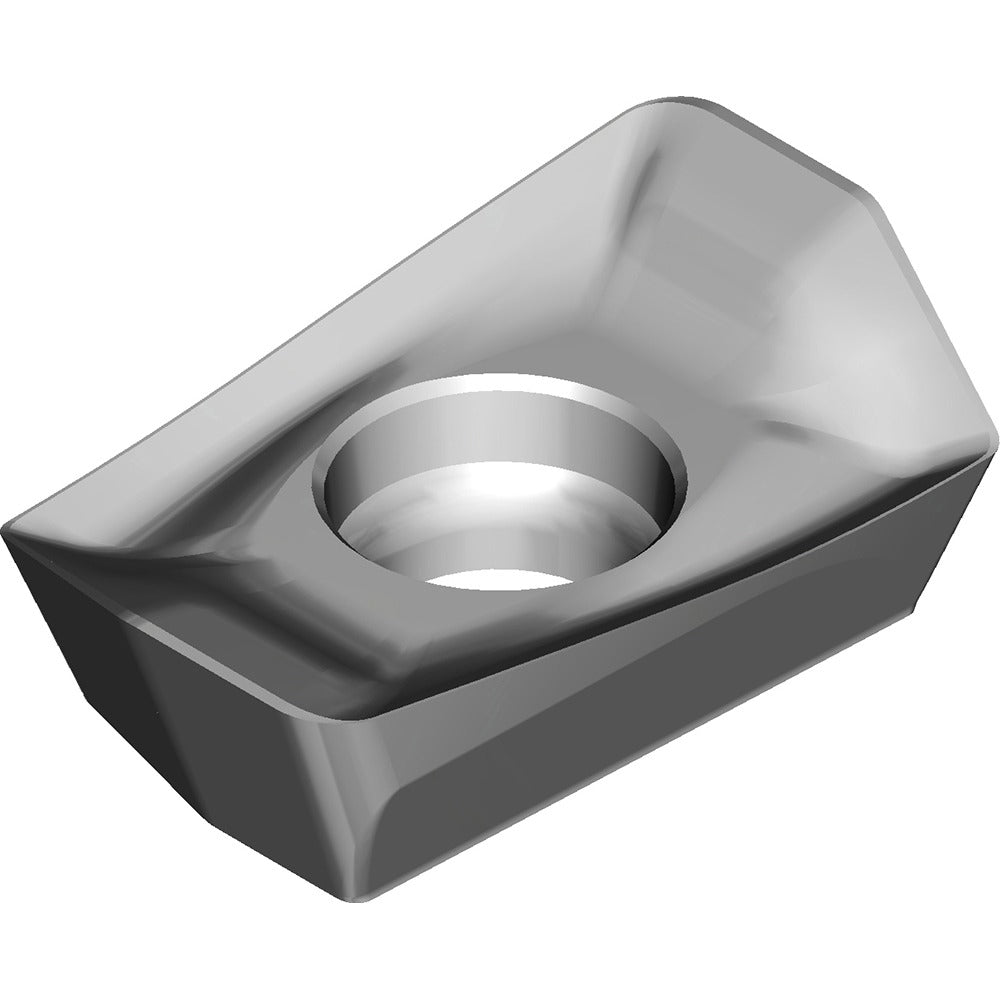

Sumitomo 14U4ARH Milling Insert H20 Solid Carbide

Product Description

The SUMITOMO 14U4ARH is a solid carbide milling insert designed for precision metal removal in indexable milling operations. Manufactured to the AOET insert style in a rectangular shape, this insert carries a manufacturer grade of H20 and is supplied in a bright, uncoated finish. It measures 12.80 mm wide and 3.60 mm thick, with a corner radius of 0.80 mm, making it suited for fine-to-medium finishing passes. The right-hand cutting orientation and S-style chip breaker geometry support controlled chip evacuation during milling. Licensed HVAC, machining, and metalworking professionals specify this insert for consistent performance in compatible cutter bodies.

This insert is intended for use in milling applications where solid carbide tooling is required for material hardness or surface finish demands. It is compatible with the WEZ cutter series and supports a maximum depth of cut of 10.00 mm. Typical installations occur in production machining environments, job shops, and precision manufacturing settings where indexable tooling systems are used on milling machines or machining centers. The insert size designation is 11T3 and follows ANSI/ISO indexable insert standards.

Key Features

• Solid carbide construction for rigidity and wear resistance
• H20 manufacturer grade suitable for a range of milling applications
• AOET insert style in rectangular shape with right-hand cutting orientation
• 0.80 mm corner radius for controlled surface finish
• S-style chip breaker for improved chip control
• Maximum depth of cut of 10.00 mm
• Bright, uncoated finish — no coating delamination risk

Compatibility

Designed for use with the WEZ cutter series as an OEM-style indexable milling insert replacement. Insert size designation 11T3 applies to compatible cutter body seat specifications.

Installation Notes

Indexable insert replacement should be performed by a qualified machinist or tooling technician. Power down and lock out the machine before changing inserts. Use the appropriate torque wrench and insert screw as specified by the cutter body manufacturer — do not over-tighten or substitute hardware. Inspect the cutter body seat for wear or debris before seating the new insert.
