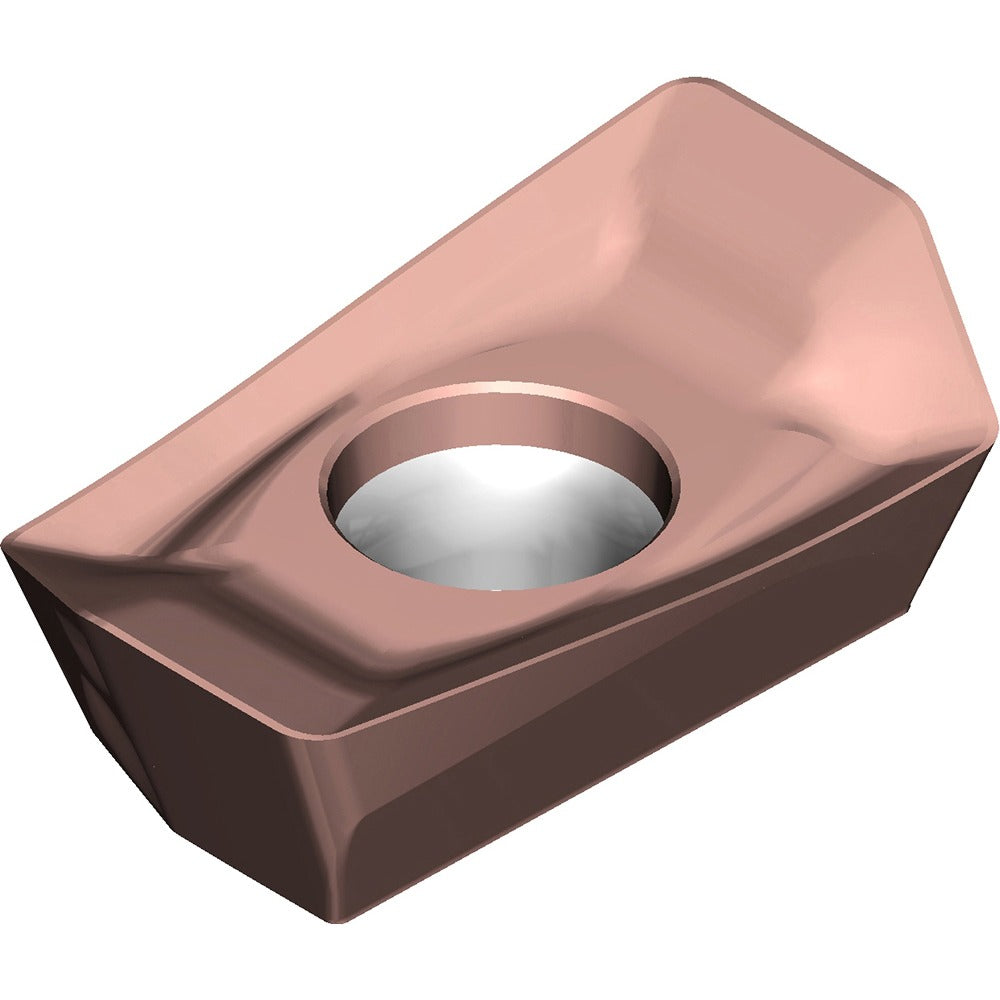

Sumitomo 14U2ALH Milling Insert ACU2500 Solid Carbide

Product Description

The SUMITOMO 14U2ALH is a solid carbide milling insert designed for use in indexable face and shoulder milling applications. It carries the ACU2500 manufacturer grade and features a PVD-applied Absotech coating, which provides wear resistance and thermal stability during high-speed cutting operations. The insert measures 19.5 mm wide and 5.5 mm thick, with a 1.60 mm corner radius and a G-style chip breaker geometry. It is sized to the 1705 insert size designation and is right-hand oriented. This insert is installed by machinists and CNC mill operators working with compatible toolholders in the WEZ cutter series.

This insert is suited for milling ferrous and non-ferrous materials in production machining environments where consistent chip control and edge life are priorities. The AOMT insert style and rectangular shape make it appropriate for face milling, shoulder milling, and similar operations on machining centers. The maximum depth of cut is 15.00 mm. This part is sold individually, with a minimum order quantity of 10 units per order.

Key Features

• ACU2500 grade solid carbide substrate with PVD Absotech coating for extended tool life
• G-style chip breaker for controlled chip evacuation during milling
• 1.60 mm corner radius reduces cutting edge stress and surface finish variability
• Maximum depth of cut of 15.00 mm supports a range of milling pass depths
• Right-hand insert orientation for use in standard right-hand WEZ series cutter bodies
• AOMT insert style in 1705 size for direct toolholder fitment

Compatibility

Designed for use with Sumitomo WEZ cutter series toolholders accepting AOMT-style inserts in the 1705 size designation.

Installation Notes

This insert is installed by qualified machinists or CNC tooling technicians. The machine spindle must be fully stopped and locked out before indexing or replacing inserts. Use the appropriate torx or hex key as specified by the toolholder manufacturer when seating the insert clamp screw. Inspect the insert pocket and seating surfaces for debris or damage before installing a new insert to ensure proper seating and runout.
