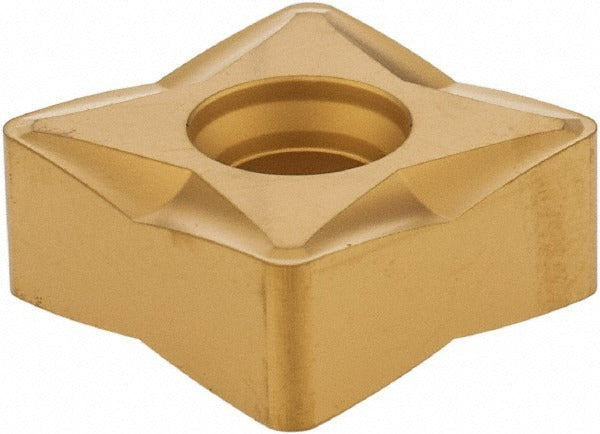

Sumitomo 14HCW2X Milling Insert DP200 Solid Carbide Square

Product Description

The SUMITOMO 14HCW2X is a solid carbide milling insert designed for demanding metal-removal operations. Manufactured to the DP200 grade, this insert features a square SNEX style geometry with a 90-degree included angle and a 0.0470-inch corner radius. The 0.266-inch thickness and 0.625-inch inscribed circle diameter place it in the 1566 size code category. It is installed in compatible milling toolholders and cutters used in production machining environments across aerospace, die-mold, and general metalworking applications. Machinists and tool-crib technicians handle procurement and changeover of these inserts.

This insert is suited for milling applications requiring a square insert geometry with a neutral 0-degree relief angle. The DP200 carbide grade is formulated for consistency in moderate to high-demand milling cuts. Typical install scenarios include face milling, shoulder milling, and pocket milling operations on ferrous and non-ferrous workpiece materials. The SNEX style designation indicates a specific seat and clamping configuration; confirm toolholder compatibility before ordering. This product is sold individually, with a minimum order quantity of 10 pieces.

Key Features

• Solid carbide construction for rigidity and wear resistance in milling applications
• DP200 manufacturer grade for consistent performance in production cutting
• Square SNEX insert style with 90-degree included angle for versatile milling geometry
• 0.0470-inch corner radius reduces stress concentration at the cutting edge
• 0-degree relief angle suits positive-rake toolholder systems
• 0.625-inch inscribed circle fits standard 1566 insert size toolholders

Compatibility

Designed for use in milling toolholders and cutter bodies that accept the SNEX insert style in the 1566 size code with an inscribed circle range of 0.600 to 0.700 inches and a thickness range of 0.250 to 0.350 inches. Confirm seat geometry and clamping method with your toolholder documentation before installation.

Installation Notes

Insert changeover should be performed by a qualified machinist or toolroom technician with the machine powered down and the spindle locked. Use the correct torque wrench and insert screw specified by the toolholder manufacturer to seat the insert properly against the pocket walls. Inspect the insert pocket for wear, chips, or debris before seating a new insert. Handle carbide inserts carefully to avoid chipping the cutting edges prior to use.
