Sumitomo 14DVW47 Milling Insert ACZ120 Solid Carbide Size 2.5

Product Description

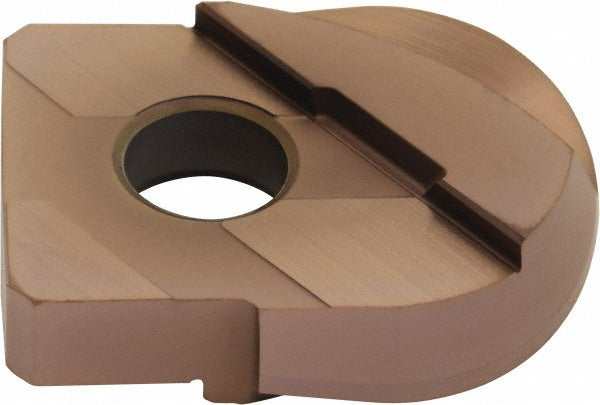

The SUMITOMO 14DVW47 is a solid carbide coated milling insert designed for precision metal removal in milling applications. Manufactured to grade ACZ120, this insert features a ball nose rounded tip geometry with a corner radius of 0.3125 inches, making it suited for profiling, contouring, and finishing passes. It carries an inscribed circle of 0.625 inches, a thickness of 0.24 inches, and a cutting edge effective length of 0.805 inches. The 11-degree relief angle supports reduced cutting forces and improved chip clearance. Licensed machinists and tooling technicians working in production or job-shop environments are the primary installers of this insert type.

This insert is intended for use in steel workpiece applications, corresponding to ISO material classification code P. It fits the WBMR cutter series and is appropriate for milling operations requiring accurate radius geometry and repeatable edge performance. Typical applications include die and mold work, part profiling, and contour finish milling on ferrous materials in both CNC machining centers and manual mill setups where compatible toolholders are used.

Key Features

• Grade ACZ120 solid carbide with coating for wear resistance in steel cutting
• Ball nose rounded tip geometry for profiling and contour milling
• Corner radius of 0.3125 inches for consistent radius reproduction
• 11-degree relief angle supports chip clearance and reduced cutting force
• Maximum depth of cut of 0.47 inches
• Compatible with WBMR cutter series toolholders

Compatibility

Designed for use with the WBMR cutter series. Primary workpiece material is steel (ISO material code P). Insert size code 2.5 with an inscribed circle range of 0.600 to 0.700 inches.

Installation Notes

This insert should be installed by a qualified machinist or tooling technician familiar with indexable carbide insert toolholders. Ensure the machine spindle is fully stopped and locked out before seating or removing inserts. Use the correct torque wrench and clamping hardware specified by the toolholder manufacturer — do not overtighten or substitute fasteners. Inspect the insert pocket for debris or damage before seating the insert to ensure proper contact and alignment.
