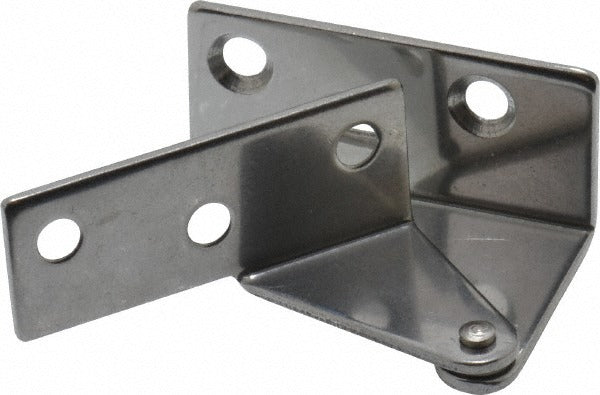

Sugatsune WP-3R Right Hand Overlay Door Pivot Hinge

Product Description

The SUGATSUNE WP-3R is a right-hand overlay door pivot hinge constructed from 430 stainless steel in a plain finish. It is designed for light-duty door and cabinet applications where corrosion resistance and a clean appearance are required. The hinge measures approximately 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick, with a leaf height of 45/64 inches. The single-knuckle design features 6 mounting holes and a 3.9-pound load capacity, making it suitable for small overlay panel or door installations. Licensed cabinet installers and millwork tradespeople are the primary installers for this type of hardware.

The WP-3R is intended for overlay door configurations where the door face sits proud of the frame or cabinet opening. This style of pivot hinge is commonly used in residential and light-commercial cabinetry, access panels, and specialty enclosures. Its stainless steel construction makes it appropriate for environments with moderate humidity exposure, including kitchens, utility rooms, and marine-adjacent applications. The right-hand orientation must be confirmed against the door swing before installation.

Key Features

• 430 stainless steel construction for corrosion resistance in moderate-humidity environments
• Right-hand overlay configuration for doors that sit proud of the frame
• Single-knuckle design with 6 mounting holes for secure attachment
• 3.9-pound rated load capacity suitable for small panels and cabinet doors
• Compact form factor: 1-7/64 inches long by 1-37/64 inches wide by 1-1/2 inches thick
• Plain finish for a clean, unobtrusive appearance

Compatibility

Designed as an OEM-style pivot hinge for right-hand overlay door applications in residential and light-commercial cabinetry or panel enclosures.

Installation Notes

Installation is typically performed by a cabinetmaker, millwork installer, or general contractor using standard hand tools. Confirm right-hand orientation relative to the door swing before fastening. Verify that the mounting surface material and screw size are appropriate for the 3.9-pound load rating of this hinge. Power down any associated electrical enclosures before installing hardware on access panels.
