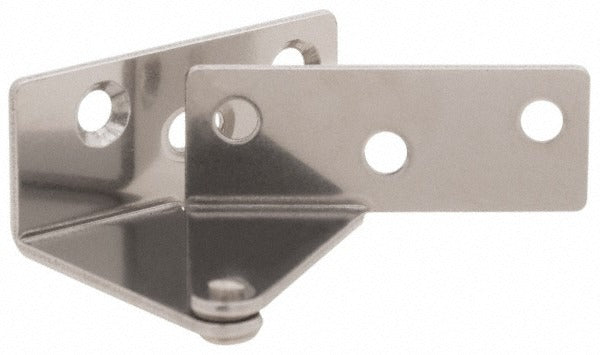

Sugatsune WP-1L Left Hand Overlay Door Pivot Hinge

Product Description

The SUGATSUNE WP-1L is a left-hand overlay door pivot hinge constructed from 430 stainless steel in a plain finish. It measures 1-11/32 inches long by 1-37/64 inches wide by 1-1/2 inches thick and features a single knuckle design with a 3-inch pin diameter. The hinge provides a rated load capacity of 3.9 pounds and is designed for overlay door installations where the door panel covers the frame face. Installation is performed by cabinetmakers, millwork contractors, and commercial fixture installers working with stainless steel door assemblies requiring a corrosion-resistant pivot point.

The WP-1L is suited for light-duty overlay door applications in commercial and residential settings where a compact pivot hinge is required. Its 430 stainless steel construction makes it appropriate for environments with moderate exposure to moisture or cleaning agents. The 6-hole mounting pattern and 45/64-inch leaf height accommodate standard door frame and panel thicknesses common in cabinetry and light architectural door assemblies. The left-hand designation indicates the pivot orientation and must be matched to the door swing direction prior to ordering.

Key Features

• 430 stainless steel construction for corrosion resistance in light commercial environments
• Left-hand overlay configuration for proper door swing alignment
• Single knuckle design with 3-inch pin diameter
• 6-hole mounting pattern for secure attachment to door and frame
• 3.9-pound load capacity appropriate for light overlay door panels
• Compact footprint: 1-11/32 inches long by 1-37/64 inches wide by 1-1/2 inches thick

Compatibility

Designed as an OEM-style pivot hinge for left-hand overlay door assemblies requiring a compact 430 stainless steel single-knuckle hinge with a 6-hole mounting pattern.

Installation Notes

This hinge is installed by cabinetmakers or millwork contractors as part of an overlay door assembly. Confirm the left-hand swing orientation against the door and frame before installation. Use appropriately sized fasteners for the substrate material to achieve full holding strength at each of the 6 mounting holes. Verify door panel weight does not exceed the 3.9-pound rated load capacity before completing the installation.
