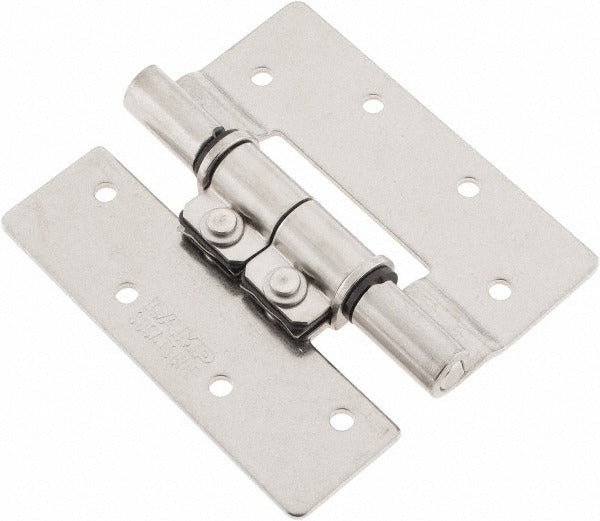

Sugatsune SFTH-05-35 Stainless Steel Torque Hinge

Product Description

The SUGATSUNE SFTH-05-35 is a stainless steel torque hinge designed to hold doors, panels, or lids at any set angle without additional support hardware. It measures 3-35/64 inches in length and 3-1/4 inches in wide, with a leaf thickness of 5/64 inches and a pin diameter of 19/32 inches. The hinge delivers 30.10 inch-pounds of torque, providing consistent resistance throughout the range of motion. Its polished stainless steel construction suits applications where corrosion resistance and clean aesthetics are both required. The 3-knuckle design and 8 mounting holes offer secure fastening across a range of panel and door configurations. Minimum door thickness is 1-1/8 inches.

This torque hinge is suited for light industrial enclosures, electronic equipment panels, medical device housings, food service equipment, and architectural millwork where a panel or access door must remain open at a fixed position. The polished finish makes it appropriate for visible installations in commercial and institutional settings. It is typically installed by finish carpenters, millwork fabricators, equipment manufacturers, and maintenance technicians working on enclosures or access panels requiring controlled positioning.

Key Features

• 30.10 inch-pounds of torque holds panels and doors at any set angle
• Stainless steel construction with polished finish for corrosion resistance
• 3-1/4 inches wide with 3-35/64 inches of length for a compact footprint
• 5/64 inch leaf thickness suits thin-profile panel applications
• 8 mounting holes across 3 knuckles for secure, distributed fastening
• Minimum door thickness of 1-1/8 inches accommodates standard panel stock

Compatibility

Designed as an OEM-style torque hinge replacement or new-installation component for doors and panels with a minimum thickness of 1-1/8 inches where controlled positioning and stainless steel construction are required.

Installation Notes

Installation is typically performed by millwork fabricators, equipment assemblers, or maintenance technicians using standard hand tools. Power down or de-energize any equipment before servicing enclosures or panels that contain electrical components. Ensure mounting surfaces are flat and fastener holes are properly aligned before tightening to avoid binding across the hinge knuckle. Follow the equipment manufacturer's guidelines for fastener size and torque when securing to thin panel stock.
