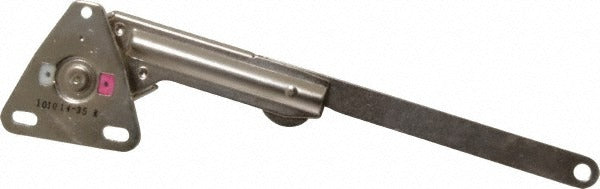

Sugatsune NSDX-35RK Soft-down Stay Damper 60 Lb

Product Description

The SUGATSUNE NSDX-35RK is an adjustable soft-down stay damper designed to control the descent of upward-opening flap doors, lids, and access panels. The damper applies controlled resistance as the flap lowers, preventing hard drops and reducing wear on cabinet joints and hardware. Rated for a 60-pound load capacity, it is constructed from steel and zinc alloy with a nickel finish. The right-hand orientation makes it suitable for installations where the hinge point is on the left side of the opening. Woodworkers, finish carpenters, and millwork installers commonly specify this hardware in commercial and residential cabinetry and furniture applications.

The NSDX-35RK is used in upward-opening flap applications such as wall-mounted cabinet lids, fold-down workbenches, display case tops, and similar hinged panels. Its adjustable damping mechanism allows the installer to tune the descent speed to match the weight and balance of the specific flap assembly. At 8.5 inches overall length and a 0.875-inch width, it fits into standard frameside mounting locations without major modification to the cabinet or enclosure structure.

Key Features

• Adjustable soft-down damping controls flap descent speed to reduce impact and hardware fatigue
• 60-pound load capacity suits a wide range of residential and light commercial flap applications
• Right-hand orientation for correct installation on left-hinged upward-opening flaps
• Steel and zinc alloy construction with nickel finish for corrosion resistance and clean appearance
• Compact profile at 8.5 inches overall length and 0.875 inches wide for easy integration into standard cabinet frames

Compatibility

Designed as an OEM-style replacement or new-installation stay damper for upward-opening flap assemblies in cabinetry and furniture requiring controlled soft-down motion.

Installation Notes

Installation is typically performed by finish carpenters, cabinet installers, or millwork technicians using standard hand tools. Confirm the flap weight does not exceed the 60-pound rated capacity before installation. Mount both pivot points securely to solid substrate to prevent fastener pull-out under repeated load cycling. Adjust the damping resistance setting after initial installation with the flap fully assembled and weighted to achieve the desired descent speed.
