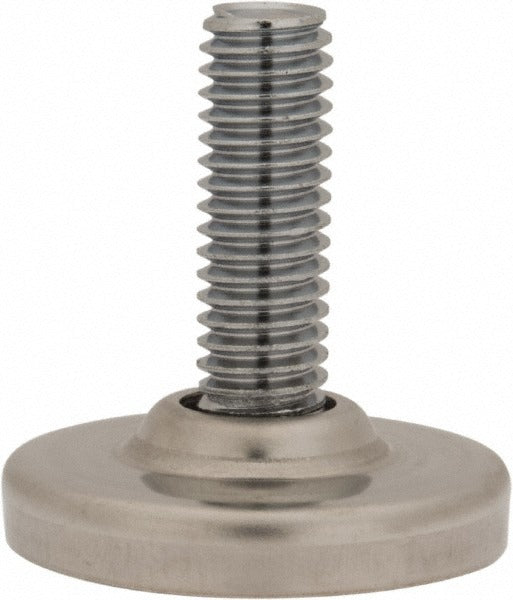

Sugatsune MN-36 Studded Leveling Mount 3/8-16 352 Lb

Product Description

The SUGATSUNE MN-36 is a studded leveling mount designed to provide stable, adjustable support for equipment, machinery, and fixtures in light industrial and commercial applications. Built with a steel stud and polypropylene pad, it combines corrosion-resistant footing with a threaded steel shaft for precise height adjustment. The 3/8-16 thread size is a common standard pitch compatible with a wide range of mounting configurations. With a rated load capacity of 352 pounds, the MN-36 is suited for applications where reliable load distribution and floor protection are both priorities. HVAC technicians, millwrights, equipment installers, and facilities maintenance professionals regularly use leveling mounts of this type to true up units on uneven surfaces.

The MN-36 is used in residential and light commercial settings to level HVAC equipment, compressors, pumps, industrial enclosures, and similar machinery. The polypropylene pad helps protect finished floors and concrete surfaces while dampening minor vibration. The 1-27/64 inch base diameter provides a stable footprint relative to the mount height. This mount is appropriate wherever a 3/8-16 threaded leveling foot is called for in an equipment base or frame.

Key Features

• 3/8-16 thread size for compatibility with standard threaded mounting holes and frames
• 352 pound load capacity supports a wide range of light industrial equipment
• Steel stud provides rigidity and durability under sustained load
• Polypropylene pad protects floor surfaces and provides minor vibration damping
• 1-27/64 inch base diameter delivers stable footing relative to mount profile
• Compact overall length of 1-37/64 inches suits tight clearance installations

Compatibility

Designed as a standard studded leveling mount for equipment frames and bases with 3/8-16 threaded mounting points in residential and light commercial applications.

Installation Notes

Leveling mounts of this type are typically installed by equipment technicians or millwrights during initial setup or repositioning of machinery. Thread the stud into the equipment base until snug, then adjust height as needed before locking in position with a jam nut if the application requires it. Ensure the polypropylene pad contacts the floor surface fully and that the load is distributed evenly across all mounts. Do not exceed the rated load capacity of 352 pounds per mount.
