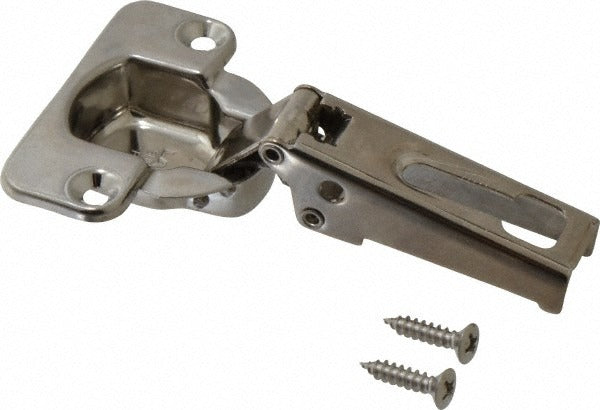

Sugatsune 304B-46/19 Concealed Overlay Hinge Stainless Steel

Product Description

The SUGATSUNE 304B-46/19 is a free-swinging concealed overlay hinge constructed from polished stainless steel. Designed for overlay door applications, this hinge mounts flush to conceal the hardware when the door is closed, delivering a clean finished appearance. It provides a 100-degree range of motion, making it suitable for cabinet doors and access panels where full swing clearance is required. With 4 mounting holes and a leaf thickness of approximately 1.5 inches, the 304B-46/19 offers secure fastening in both residential cabinetry and light commercial millwork installations. Licensed cabinetmakers, finish carpenters, and millwork installers are the primary trades for this component.

This hinge is suited for overlay door configurations in residential and commercial cabinetry, furniture manufacturing, and architectural joinery. It accommodates doors with a minimum thickness of approximately 0.59 inches. The free-swinging action requires no detent or self-closing mechanism, making it appropriate for applications where the door must swing freely without spring tension. Installations where a polished stainless steel finish is specified for corrosion resistance or aesthetic continuity are a natural fit for this hinge.

Key Features

• Concealed overlay design hides hardware when door is closed
• Free-swinging action with 100-degree open angle
• Stainless steel construction with polished finish for corrosion resistance
• 4 mounting holes for secure fastening
• Minimum door thickness of approximately 0.59 inches
• Compact form factor at approximately 2.24 inches in length and 2.16 inches in width

Compatibility

Designed as an OEM-style replacement or direct-install concealed overlay hinge for cabinet doors and access panels requiring a free-swinging, flush-mount stainless steel hinge.

Installation Notes

Installation is typically performed by cabinetmakers or finish carpenters using standard woodworking tools. Power down or secure the work surface before drilling mounting pilot holes to prevent splitting. Follow the door and frame manufacturer specifications for pilot hole diameter and fastener torque. Verify door overlay dimension and minimum door thickness before installation to ensure proper fitment.
