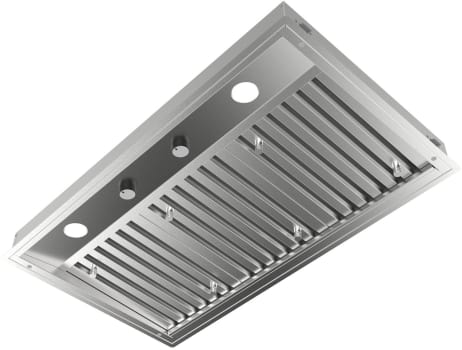

Sub-zero inpl4822ssnb-b Insert Range Hood 48x22 in

Product Description

The SUB-ZERO inpl4822ssnb-b is a professional-grade insert range hood liner designed for custom cabinet installations. Built for demanding kitchen environments, this unit ships without a blower, allowing the installer to select from multiple compatible blower options to match the ventilation requirements of the space. Variable speed dial control gives the user precise airflow adjustment. Stainless steel baffle filters capture grease efficiently and are dishwasher safe for easy maintenance. Integrated 5-watt LED bulbs provide task lighting over the cooking surface while drawing minimal power. The all-metal pro motor housing and metal impellers support sustained high-performance operation. Licensed HVAC or kitchen ventilation contractors typically handle the install.

This insert liner is intended for residential or light-commercial custom hood applications where the range hood cabinet is built or finished on-site. The unit measures 47 9/16 inches wide by 23 11/16 inches deep and fits into a custom-built surround or cabinetry. The blower is sold separately, giving the installing contractor flexibility to size the blower unit to local code requirements and kitchen layout. Snap mounting clips are included to simplify the liner positioning and securing process during installation.

Key Features

• Blower sold separately — compatible with 5 blower options for application-specific airflow sizing
• Variable speed dial control for precise ventilation adjustment
• Stainless steel baffle grease filters — dishwasher safe
• 5-watt LED bulbs provide energy-efficient task lighting
• All-metal pro motor housing with metal impellers for durability
• Easy snap mounting clips for streamlined liner installation

Compatibility

Designed as an OEM-style insert liner for custom-built residential and light-commercial range hood cabinet applications requiring a 48-inch wide by 22-inch deep liner opening.

Installation Notes

Installation should be performed by a licensed contractor familiar with kitchen ventilation systems and local mechanical codes. Power to the installation circuit must be shut off at the breaker before any wiring work begins. The blower unit is not included and must be selected and installed separately according to the manufacturer guidelines and local ventilation code requirements. Verify cabinet rough opening dimensions against the product dimensions of 47 9/16 inches wide by 23 11/16 inches deep before mounting.

Technical Specifications

• Product Width: 47 9/16 inches
• Product Depth: 23 11/16 inches
• Lighting: 5-watt LED bulbs
• Grease Filter: Dishwasher-safe stainless steel baffle
• Speed Control: Variable speed dial
• Blower: Sold separately
• Warranty: 1-year limited parts and labor

Standard Information

• Brand: SUB-ZERO
• Manufacturer Part Number: inpl4822ssnb-b
