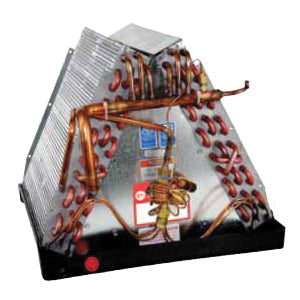

Stylecrest 1844S4A Sweat Fit Housing Coil, 2.5 to 3.5 ton, R-410A Refrigerant

Product Description

The Style Crest 1844S4A Sweat Fit Housing Coil is designed for use with R-410A refrigerant and suitable for systems with a nominal capacity of two point five to three point five tons. The coil features a three eighths inch liquid line and three quarter inch suction line. Its dimensions are eighteen inches wide, nineteen and five-eighths inches deep, and sixteen and one-half inches high.

• Factory-installed TXV valve for A/C or heat pump applications
• UL listed for safety and reliability
• Built-in strainer for coil protection

Product Highlights

This evaporator coil includes a code-approved two-opening drain pan that is designed to prevent standing water, promoting better air quality.

Product Information

Standard Information

• Brand: Style Crest
• Manufacturer: Style Crest

Technical Specifications

• Nominal Capacity: 2.5 to 3.5 ton
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Dimensions: 18 in W x 19-5/8 in D x 16-1/2 in H
