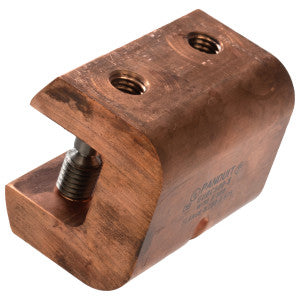

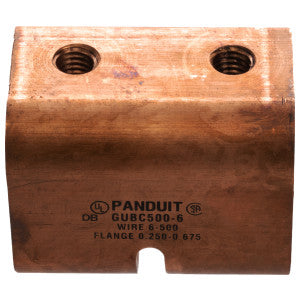

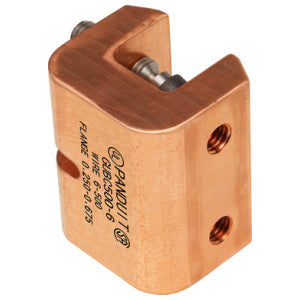

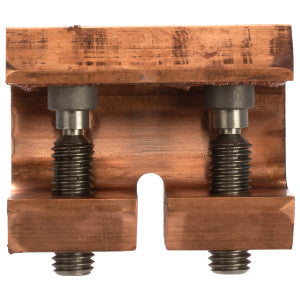

StructuredGround GUBC500-6 Universal Beam Ground Clamp Copper 3.15 in. L

Product Description

The StructuredGround GUBC500-6 is a universal beam grounding clamp designed to fit a variety of standard and wide flange structural steel beams. This product provides a secure mounting pad for a two-hole compression lug. Installation is straightforward and can be completed quickly using a standard one-fourth inch key hex wrench tooling. This grounding clamp is engineered to improve the crimp process and meets the standards set by IEEE STD 837 - 2002 and REV 2014.

• Fits standard and wide flange beams
• Quick installation with standard tools
• Meets IEEE standards for reliability

Product Highlights

The StructuredGround GUBC500-6 clamp enhances grounding solutions for various applications, ensuring reliable performance and compliance with safety standards in electrical installations.

Product Information

Standard Information

• Brand: StructuredGround
• Manufacturer: Panduit

Technical Specifications

• MPN: GUBC500-6
• Length: 3.15 inches
• Width: 2.13 inches
• Height: 2.5 inches
• Hole Size: 1 inch
• Run Conductor Size: 6 to 500 AWG
• Country of Origin: MX - Mexico
• ECCN: EAR99
• UNSPSC: 46182103
