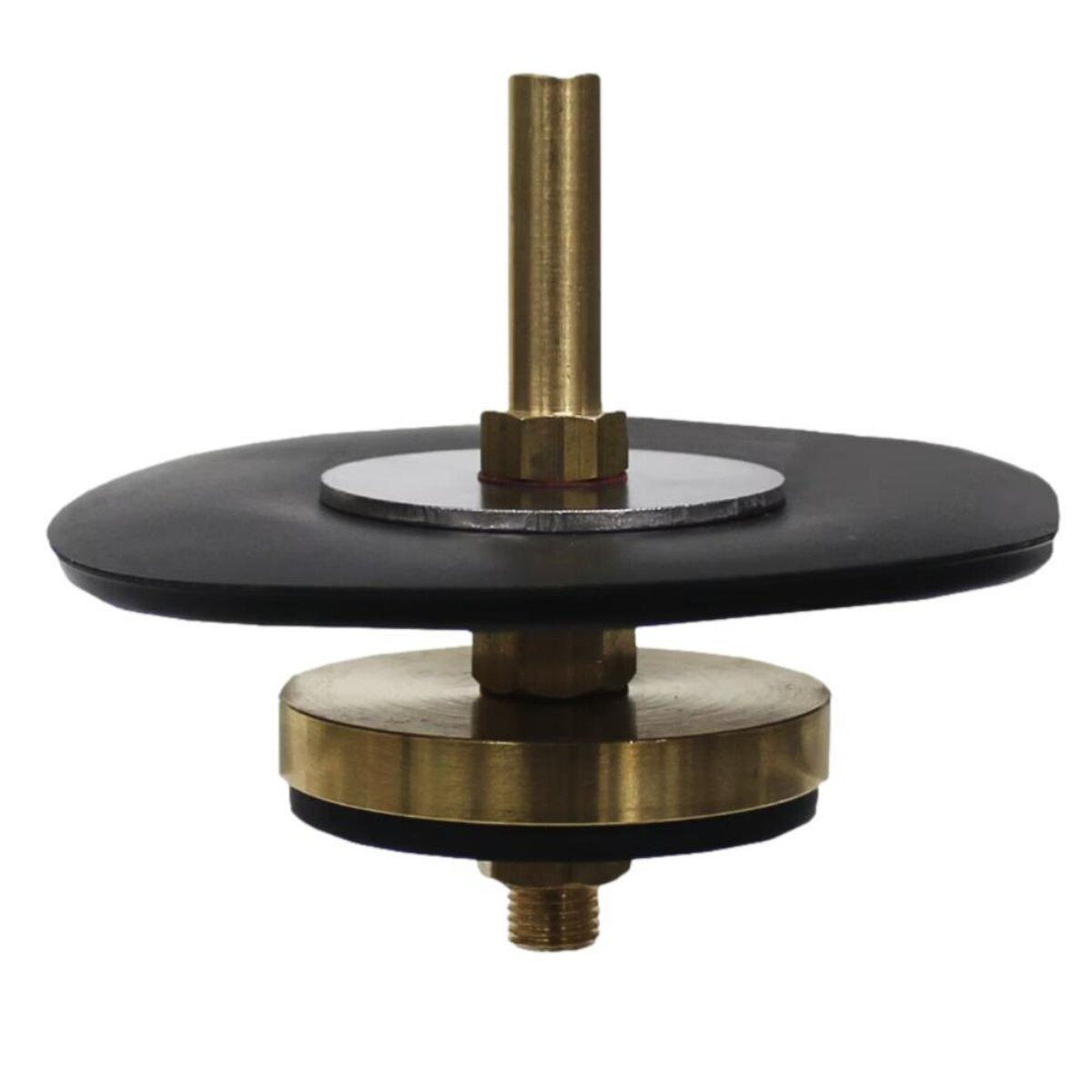

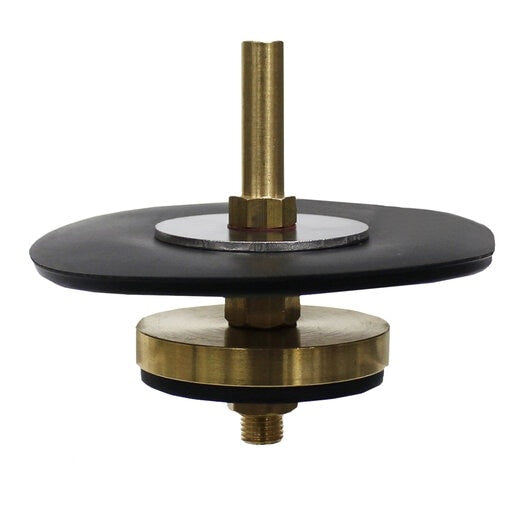

Storm 16214 Diaphragm Assembly 1.5 in 950 Series

Product Description

The STORM 16214 is a diaphragm assembly designed for use in 950 Series gas pressure regulators and control valves. The diaphragm is a critical internal component that responds to pressure differentials to regulate gas flow through the valve body. When the diaphragm wears, cracks, or loses flexibility, it must be replaced to restore proper valve operation. This assembly is sized at 1.5 inches and is intended for installation by licensed gas technicians and HVAC service professionals performing regulator maintenance or rebuild procedures.

This diaphragm assembly is suited for service and repair of 950 Series valve and regulator assemblies found in commercial and residential gas distribution and control applications. It is the appropriate replacement component when a regulator rebuild is required due to diaphragm failure, excessive seat leakage, or loss of pressure control. Technicians typically source this part during scheduled maintenance or emergency service calls on gas train equipment.

Key Features

• Direct-replacement diaphragm assembly for 950 Series regulators
• 1.5-inch size matches original equipment specification
• Restores proper pressure-differential response in the valve body
• Designed for field rebuild without full valve replacement
• Order increment of 1 for single-unit service needs

Compatibility

Designed as an OEM-style replacement diaphragm assembly for 950 Series gas pressure regulators and control valves.

Installation Notes

Installation should be performed by a licensed gas technician or qualified HVAC professional. Shut off all gas supply and depressurize the valve body completely before disassembly. Follow applicable local gas codes and IFGC guidelines during service. Inspect the valve seat and body for wear or debris before installing the new diaphragm assembly.

Technical Specifications

• Size: 1.5 inches
• Series: 950
• Order Increment: 1

Standard Information

• Brand: STORM
• Manufacturer Part Number: 16214
