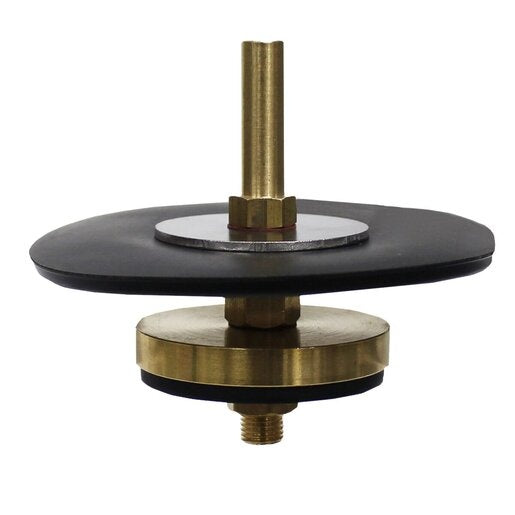

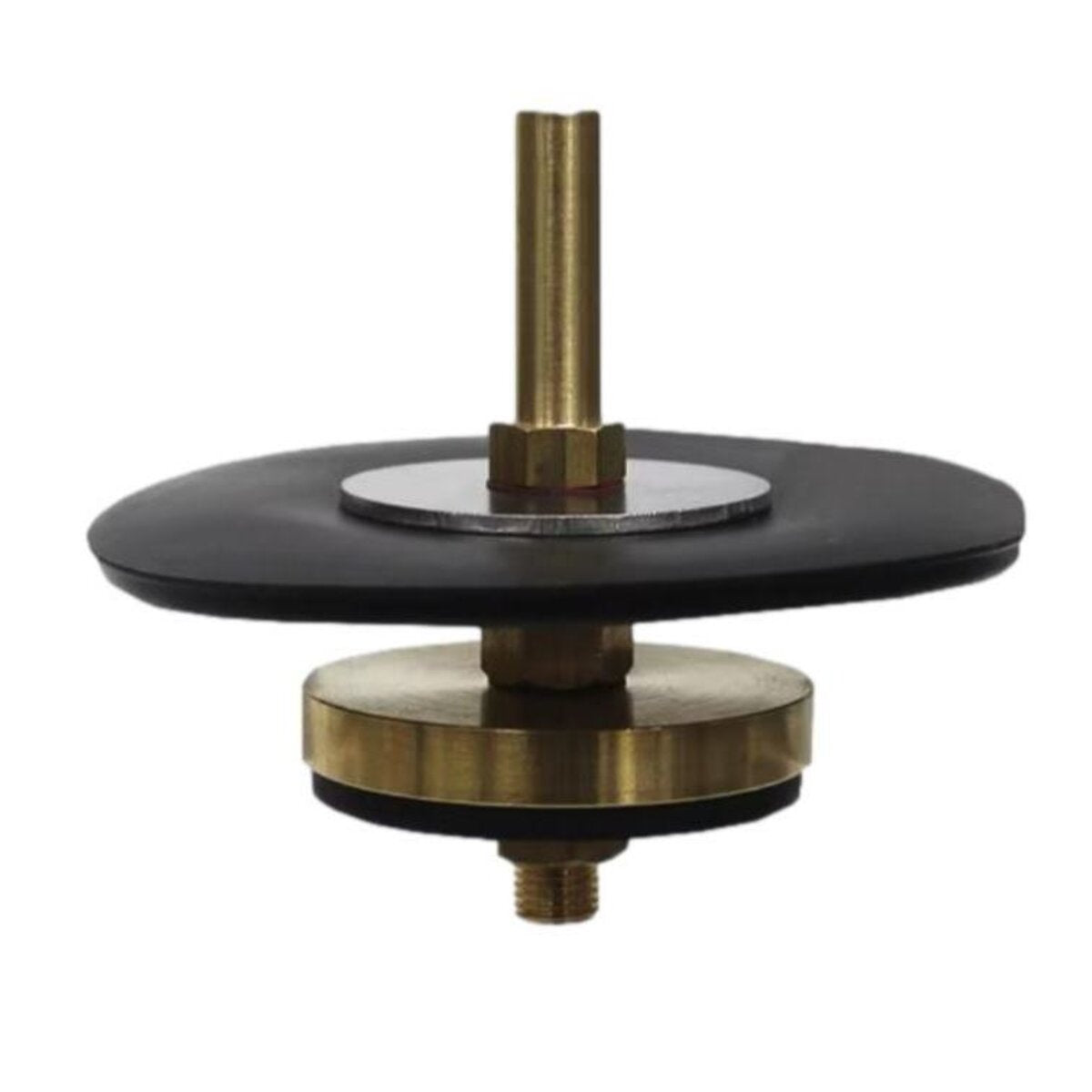

Storm 16211 Diaphragm Assembly 3/4 Inch 950 Series

Product Description

The STORM 16211 is a diaphragm assembly designed for use in 950 Series gas valves and pressure-regulating equipment. The diaphragm assembly serves as the flexible sealing element that responds to pressure differentials, controlling gas or fluid flow through the valve body. At 3/4 inch, it is sized for standard residential and light commercial applications. This component is typically installed by licensed gas technicians or plumbers during valve repair or overhaul procedures when the existing diaphragm shows signs of wear, cracking, or failure to seal.

This diaphragm assembly is intended for service and repair of 950 Series valve assemblies in residential and light commercial gas distribution systems. It is commonly used in maintenance scenarios where the valve body remains serviceable but the internal diaphragm has degraded. The 3/4 inch sizing fits standard pipe connections found in typical gas appliance supply lines and regulator assemblies.

Key Features

• 3/4 inch diaphragm sized for standard valve body fitment
• Designed for the 950 Series valve platform
• Replacement assembly supports field repair without full valve replacement
• Order increment of 1 allows single-unit purchase for targeted repairs

Compatibility

Designed as an OEM-style replacement diaphragm assembly for 950 Series gas valve and regulator assemblies with a 3/4 inch diaphragm configuration.

Installation Notes

Installation should be performed by a licensed gas technician or plumber in accordance with applicable local codes and IFGC requirements. Shut off and lock out the gas supply upstream of the valve before disassembly. Ensure the valve body cavity is clean and free of debris before seating the new diaphragm assembly. Pressure-test the valve and downstream connections after reassembly to confirm a leak-free installation.

Technical Specifications

• Size: 3/4 inch
• Series: 950 Series
• Order Increment: 1

Standard Information

• Brand: STORM
• Manufacturer Part Number: 16211
