STI Sti SS2472ZA-EN Emergency Push Button
STI Sti SS2472ZA-EN Emergency Push Button

Sti SS2472ZA-EN Emergency Push Button

Brand: STI
SKU: SS2472ZA-EN
Availability: In Stock

Ships same day if ordered by 12 pm
$264.28
$264.28
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

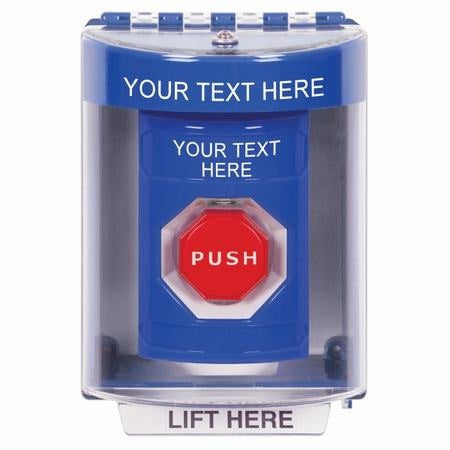

The Sti SS2472ZA-EN is an emergency push button station with a key-to-reset mechanism and a 2 Form C relay, designed for surface cover installation for indoor and outdoor locations. The station supports customizable English text labels and provides relay contacts for signaling or control circuits. It features a polycarbonate housing with a stainless steel backplate, optional illumination, and timer and contact configurations for security and stopper applications.

  • Indoor and outdoor surface cover with surface or flush mount options
  • Key-to-reset operation with 2 Form C relay and relay contact configurations
  • Customizable English text label, illuminated button option, stainless steel backplate

Product Highlights

Key-to-reset emergency station with 2 Form C relay, customizable English label, polycarbonate housing and stainless steel backplate

Product Information

Standard Information

  • Brand: STI
  • Manufacturer Part Number: SS2472ZA-EN
Technical Specifications
Brand
STI
Manufacturer
Safety Technology International (STI)
Manufacturer Part Number
SS2472ZA-EN
Model
SS2472ZA-EN
Product SKU / ID
93269
Also known as
SS2472ZAEN
UPC
662950510048
Button Type
Key-to-reset
Illuminated
Yes
Cover Type
Indoor and outdoor surface cover
Mounting Type
Surface cover
Mounting Options
Flush mount option available
Reset Type
Key-to-reset
Relay
2 Form C relay
Switch Contacts (standard)
One normally open (N.O.) and one normally closed (N.C.) contact (holds up to three sets of isolated contacts)
Contact Rating (gold-plated blocks)
6 amps @ 600 VAC or 1 amp @ 250 VDC
Form C Contact Rating (optional)
Two Form C (DPDT) contacts rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
Switch Rating
10 amps @ 240 VAC resistive
Timer Type
Pneumatic adjustable timer (no electricity to operate)
Timer Range
2 - 60 seconds (
