Description

Product Description

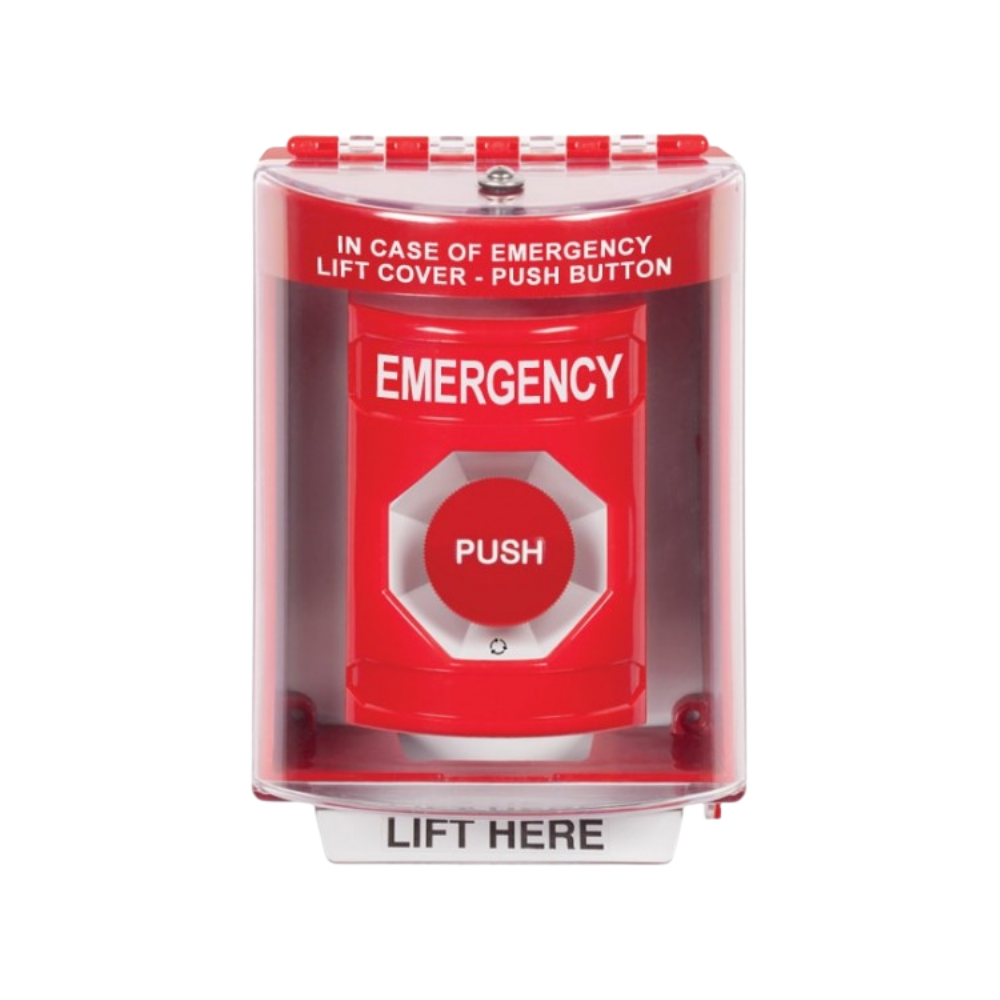

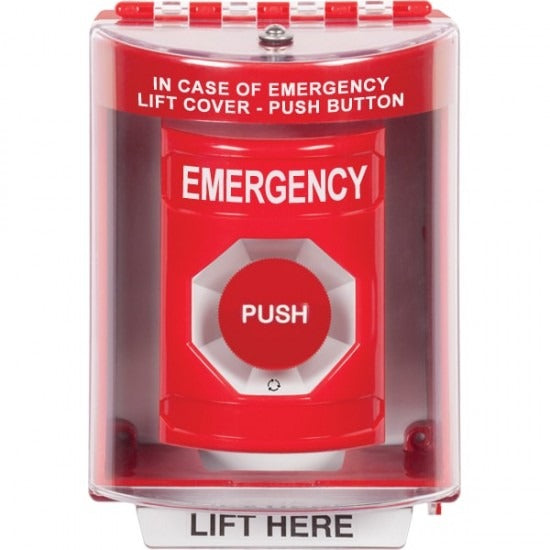

STI SS2071EM-EN is a stopper station button designed for emergency stop applications. The unit features a universal cover and a turn-to-reset manual mechanism and does not include an internal horn. The housing is molded polycarbonate with a stainless steel backplate and uses interchangeable gold-plated contact blocks with optional pneumatic timer capability (2–60 seconds). The station is UL listed and suited for surface-mount installations.

  • Universal cover with turn-to-reset manual operation; no horn included.
  • Interchangeable gold-plated contact blocks; standard includes one N.O. and one N.C.; contact ratings include 6 A at 600 VAC (SPST) and alternate DPDT 10 A @ 125/250 VAC.
  • Housing molded of polycarbonate with stainless steel backplate; UL listed and ADA-compliant push buttons (excludes '3' key switch button); optional pneumatic timer (2–60 s).

Product Highlights

Surface-mount emergency stopper station with universal cover, interchangeable gold-plated contacts, turn-to-reset operation, UL listing, and optional 2–60 s pneumatic timer.

Product Information

Standard Information

  • Brand: STI
  • Manufacturer Part Number: SS2071EM-EN
Technical Specifications
Brand
STI
Manufacturer Part Number
SS2071EM-EN
Product Type
Stopper station button / Emergency stop station
Reset Type
Turn-to-Reset; additional functions reported: Key-to-Reset; Key-to-Activate; Momentary
Cover
Universal cover
Horn
No horn
Legend
EMERGENCY (English)
Mounting Type
Surface mount
Housing Material
Polycarbonate
Backplate Material
Stainless steel
Switch Contacts
Interchangeable gold-plated contact blocks; standard includes one N.O. and one N.C.; holds up to three sets of isolated contacts
Contact Ratings
SPST gold-plated blocks rated 6 A @ 600 VAC or 1 A @ 250 VDC; alternate two Form C (DPDT) rated 10 A @ 125/250 VAC, 1/2 HP, 6 A @ 30 VDC; switch rating 10 A @ 240 VAC resistive
Timer Type
Pneumatic adjustable timer (optional)
Timer Range
2 - 60 seconds (
