Stenner Pump EC500 Flow Switch 3/4 inches

Product Description

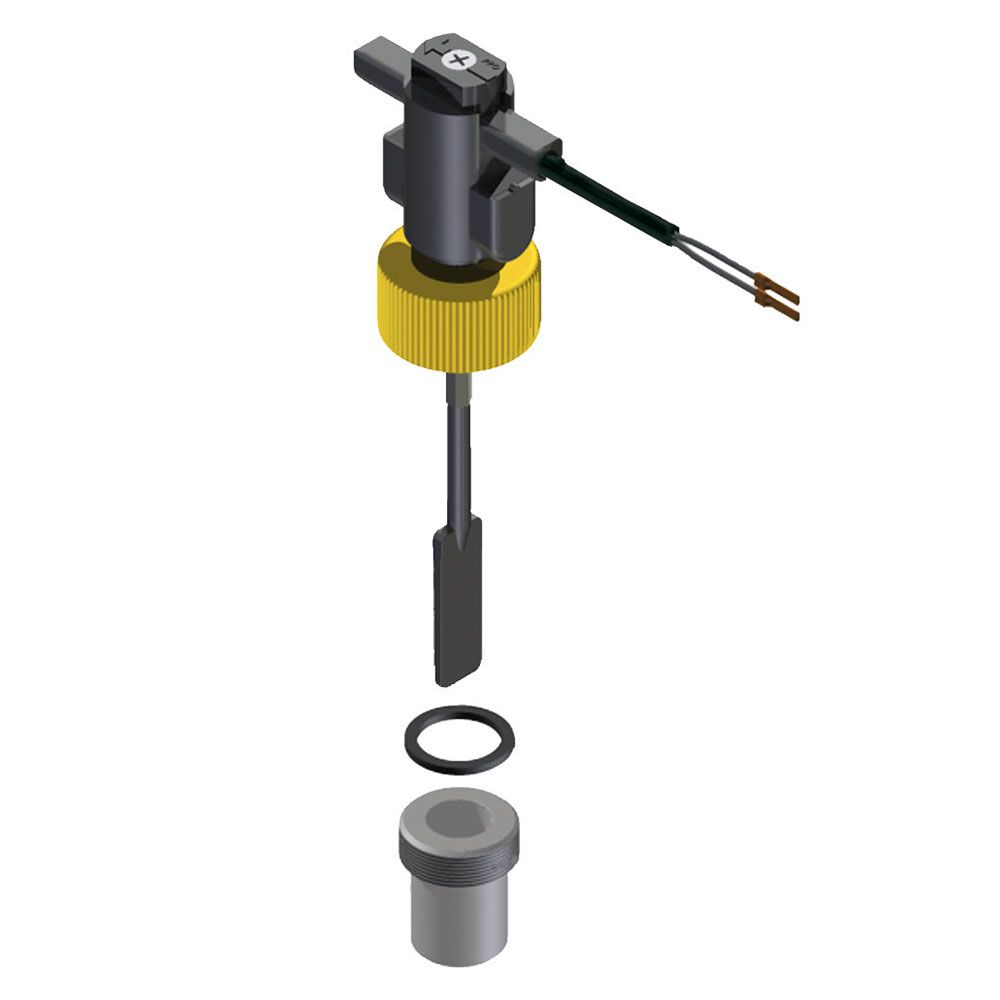

The Stenner Pump EC500 is a paddle-style dry contact flow switch designed for use with Stenner Econ FP and Integrator series pumps and for installation in 3/4" PVC or copper pipe. The paddle is glass-fiber-reinforced plastic with a magnetic reset to eliminate spring fatigue. Nominal activation is 1.2 gallons per minute for 3/4" and 1.9 gallons per minute for 1"; adapters are provided for PVC glue-in or copper solder mounting.

• Dry contact output for metering pump integration; includes wiring harness compatibility with Econ FP pumps
• Paddle constructed of glass-fiber-reinforced plastic with magnetic reset to prevent spring fatigue
• Includes glue-in adapter for standard PVC slip-fit tee and adapter for soldering to copper pipe; activation at 1.2 gpm (3/4") and 1.9 gpm (1")

Product Highlights

Paddle-style dry contact flow switch for metering pumps; magnetic reset paddle; nominal activation 1.2 gpm (3/4"), 1.9 gpm (1"); PVC glue-in and copper solder adapters included.

Product Information

Standard Information

• Brand: STENNER PUMP
• Manufacturer Part Number: EC500
