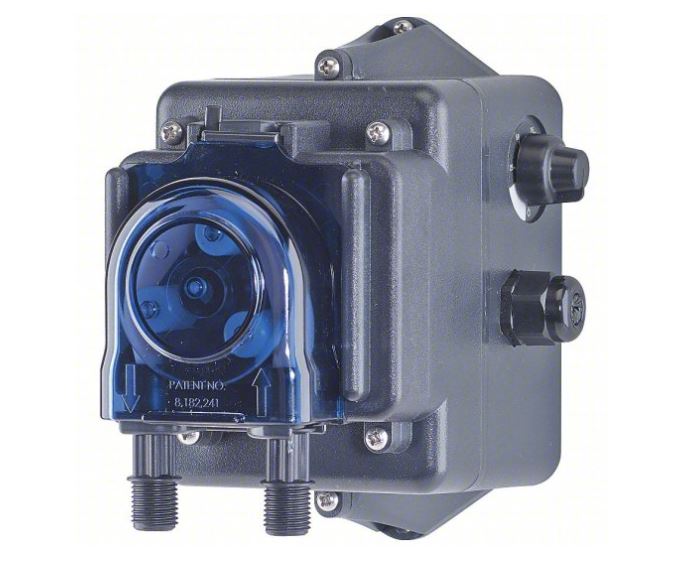

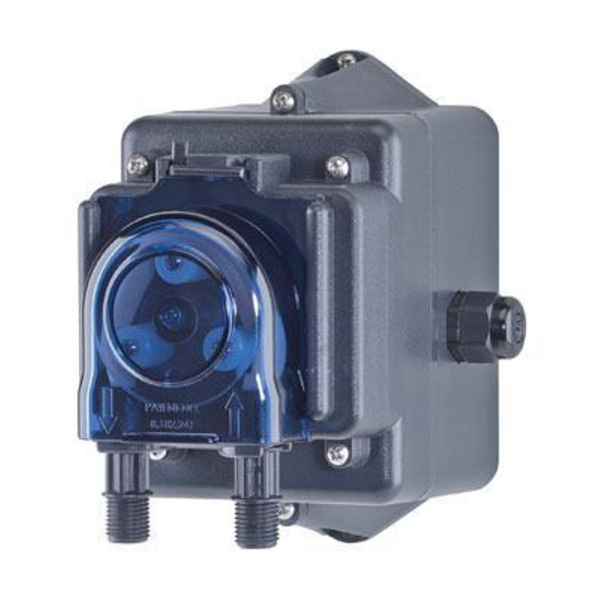

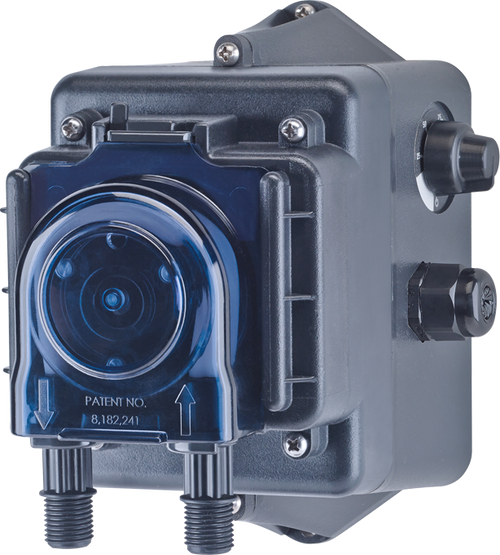

STENNER PUMP E20VXCA1S6 Peristaltic Metering Pump

Product Description

The STENNER PUMP E20VXCA1S6 is a self-priming peristaltic metering pump made for consistent chemical dosing in various applications, including water treatment and sanitation. This pump features variable speed control for precise adjustments through an adjustable potentiometer. It can handle a flow rate of thirty-eight point eight gallons per day and is suitable for both indoor and outdoor settings, thanks to its polycarbonate housing with stainless steel fasteners.

• Features variable speed control for customized flow rates.
• Can achieve a maximum suction lift of twenty-five feet for effective performance.
• Designed for chemical dosing with viscosity limits of one hundred centipoise.

Product Highlights

This pump is engineered for reliable performance in various chemical injection applications, ensuring steady dosing with easy adjustments.

Product Information

Standard Information

• Brand: STENNER PUMP
• MPN: E20VXCA1S6

Technical Specifications

• Flow Rate Output: 38.8 gallons per day
• Maximum Working Pressure: 80 psi (5.5 bar)
• Maximum Operating Temperature: 104°F (40°C)
• Motor Type: 24 VDC, brushed
• Duty Cycle: Continuous
• Maximum Viscosity: 100 centipoise
• Power Cord Length: 6 ft. (1.8 m)
• Classification: Indoor/Outdoor
