Stenner Pump 85MJH2A1STAA Peristaltic Pump 120V 0.25 in Tubing 85MJH2A1STAA

Brand: STENNER PUMP
SKU: 85MJH2A1STAA
Availability: In Stock

Ships same day if ordered by 12 pm
$772.41
$772.41
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

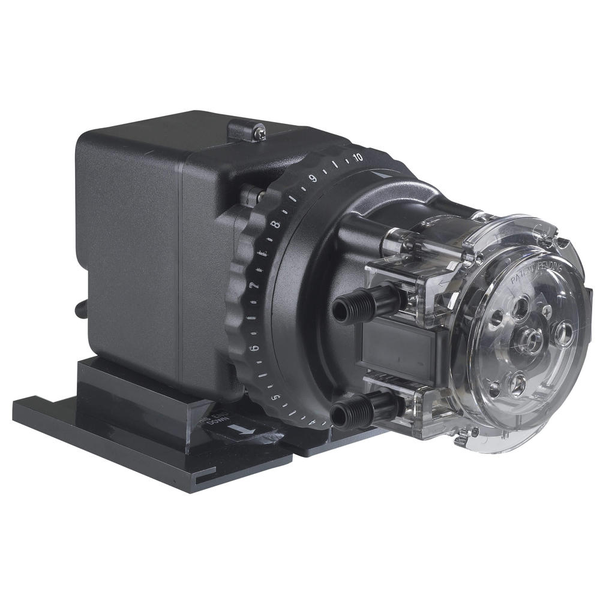

The Stenner Pump 85MJH2A1STAA is a single-head peristaltic chemical metering pump designed for 120V operation and high-pressure applications. It provides an adjustable flow range of 0.8 to 17 GPD with a 20:1 turndown ratio and mechanical feed-rate control in fine increments. The pump uses a Santoprene tube on a polycarbonate pump head, is self-priming with a three-point roller system, and is suitable for water treatment and chemical injection tasks.

  • Adjustable flow 0.8 to 17 GPD; mechanical feed-rate control with 2.5% increments and 20:1 turndown
  • Rated to 100 psi max; self-priming peristaltic design with three-point roller system to prevent backflow
  • Santoprene pump tube (#2, 1/4 in) with polycarbonate pump head; corded 120V AC power and wall-mountable bracket

Product Highlights

Single-head adjustable peristaltic chemical metering pump; 0.8�17 GPD, 100 psi, Santoprene tube, 120V AC

Product Information

Standard Information

  • Brand: STENNER PUMP
  • Manufacturer Part Number: 85MJH2A1STAA
  • Country of Origin: USA
Technical Specifications
Brand
Stenner Pump
MPN
85MJH2A1STAA
Model
85MHP17
Series
Stenner Classic 85 Series
Product Type
Single-head adjustable peristaltic chemical metering pump
Flow Rate
0.8 to 17 GPD
Output (nominal)
17 GPD (maximum of range)
Turndown Ratio
20:1
Control Type
Mechanical feed-rate control (2.5% increments)
Max Pressure
100 psi
Pump Tube Material
Santoprene (FDA approved)
Pump Tube Size
Number 2 tube, 1/4 in (0.25 in)
Suction/Discharge Size
1/4 in tubing (3/8 in tubing may be used but does not change pump output)
Injection Fitting
Designed for 1/4 in or 3/8 in NPT
Pump Head Material
Polycarbonate
Housing Material
Plastic / Polypropylene
Power Supply / Input Voltage
120V AC, 60 Hz
Power Source
Corded electric
Operating Temperature (max)
125 F
Maximum Shaft RPM
44 RPM
Mounting
Wall-mountable (bracket included)
Design Features
Self-priming peristaltic design; three-point roller system; leak-free with no internal valves; quick-tool-free tube replacement
Included Accessories

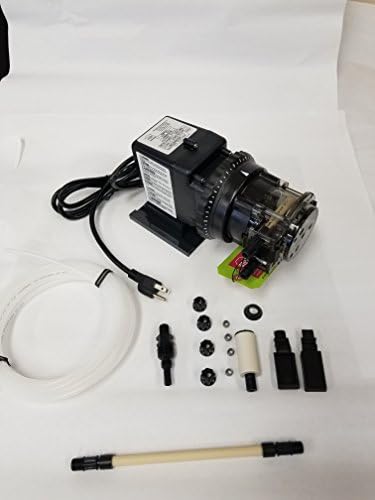

Connecting nuts and ferrules, 100 psi injection check valve, 1/4 in weighted suction line strainer, additional pump tube, 20 ft of 1/4 in suction/discharge tubing, mounting bracket
