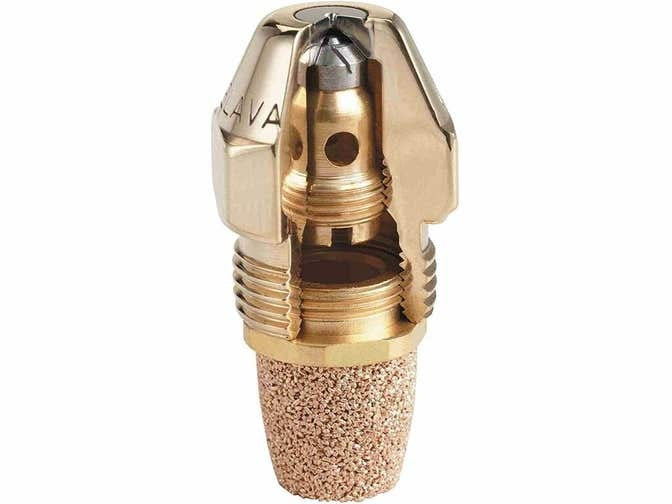

Steinen h.85-60-2f Hollow Oil Burner Nozzle 60 Degree

Product Description

The STEINEN h.85-60-2f is a hollow-cone oil burner nozzle rated at 0.85 gallons per hour (GPH) with a 60-degree spray angle. It meters and atomizes fuel oil before it enters the combustion chamber, directly affecting flame shape, combustion efficiency, and heat output. This nozzle is installed by licensed oil burner technicians during routine service, nozzle replacement, or system commissioning. At 1.55 inches in length and 0.7 inches in both width and height, it is a compact, precision component that must be matched correctly to the burner and boiler or furnace specifications to maintain proper combustion.

This nozzle is suited for residential and light commercial oil-fired heating systems including oil furnaces, oil boilers, and pressure-type oil burners. The hollow-cone spray pattern distributes atomized fuel along the outer edge of the cone, which is commonly specified for burners requiring a defined flame envelope. The 60-degree angle and 0.85 GPH flow rate are standard specifications called out on burner data plates and equipment service manuals. Technicians replacing a nozzle should verify GPH, spray angle, and spray pattern against the original equipment specification before installation.

Key Features

• Hollow-cone spray pattern for defined flame envelope distribution
• 0.85 GPH flow rate matched to standard residential oil burner outputs
• 60-degree spray angle for proper flame geometry in compatible burner heads
• Compact form factor: 1.55 inches tall, 0.7 inches wide, 0.7 inches in length
• Direct replacement nozzle for routine oil burner maintenance and annual tune-ups

Compatibility

Designed as an OEM-style replacement nozzle for pressure-type oil burners in residential and light commercial oil-fired heating equipment. Compatible equipment must call for a hollow-cone, 60-degree, 0.85 GPH nozzle as specified on the burner data plate or equipment service documentation.

Installation Notes

Installation should be performed by a qualified oil burner technician following applicable local codes and manufacturer service procedures. Shut down the burner and allow the nozzle assembly to cool completely before removing the nozzle adapter. Use a properly sized nozzle wrench to avoid damaging the nozzle body or adapter threads. After installation, verify combustion performance with appropriate test instruments before returning the system to service.
