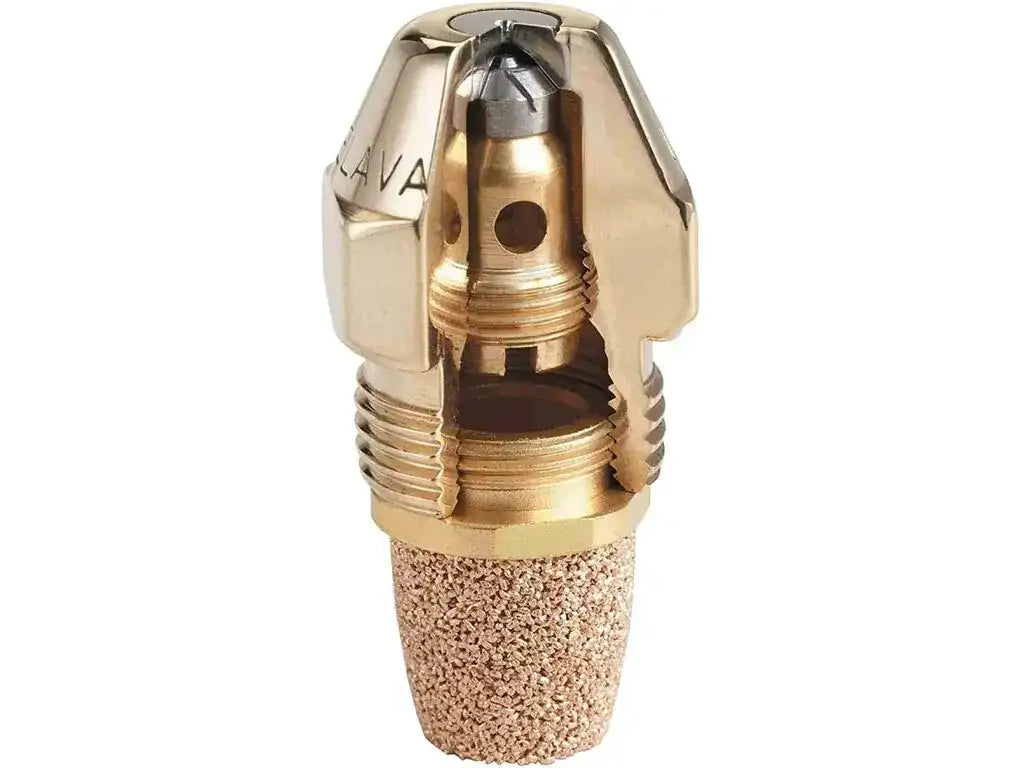

Steinen h.75-80-2f Oil Burner Nozzle 0.75 Gph 80 Degree

Product Description

The STEINEN h.75-80-2f is a hollow cone oil burner nozzle designed for precise fuel atomization and consistent combustion in oil-fired heating systems. It delivers a flow rate of 0.75 gallons per hour (GPH) at 100 psi through an 80-degree hollow cone spray pattern. The hollow cone configuration distributes fuel along the outer edge of the spray envelope, promoting thorough air-fuel mixing at the burner head. Constructed from stainless steel, the h.75-80-2f resists corrosion and heat degradation across repeated firing cycles. Burner technicians and HVAC service professionals install this nozzle as a standard maintenance replacement in residential and light commercial oil-fired equipment.

This nozzle is suited for residential and light commercial oil-fired heating applications where an 80-degree hollow cone spray pattern is specified by the burner manufacturer. It fits standard oil burner nozzle assemblies that accept a 0.75 GPH rated nozzle at 100 psi operating pressure. Typical installations include forced-air oil furnaces and oil-fired boilers serviced during seasonal tune-ups or nozzle replacement intervals. Always verify the spray angle, flow rate, and spray pattern type against the burner manufacturer's nozzle specification chart before installation.

Key Features

• 0.75 GPH flow rate rated at 100 psi for consistent fuel delivery
• 80-degree hollow cone spray pattern for thorough air-fuel mixing
• Stainless steel construction for corrosion and heat resistance
• Compact form factor: 0.7 inches wide by 1.5 inches in length
• Drop-in replacement for standard oil burner nozzle assemblies

Compatibility

Designed as an OEM-style replacement nozzle for oil burner assemblies requiring a 0.75 GPH hollow cone nozzle with an 80-degree spray angle. Verify flow rate, spray angle, and pattern type against the burner manufacturer's nozzle specification chart before installation.

Installation Notes

Oil burner nozzle replacement is performed by licensed oil burner technicians or qualified HVAC service professionals. Shut down the burner and allow the system to cool before removing the nozzle assembly. Use an appropriate nozzle wrench to remove and seat the nozzle without cross-threading or over-torquing the nozzle adapter. Follow all applicable NFPA 31 installation standards and local authority having jurisdiction requirements when servicing oil-fired heating equipment.
