SteelCrest BTU8X8RWHH Fixed Return Grille 8x8 Inch

Product Description

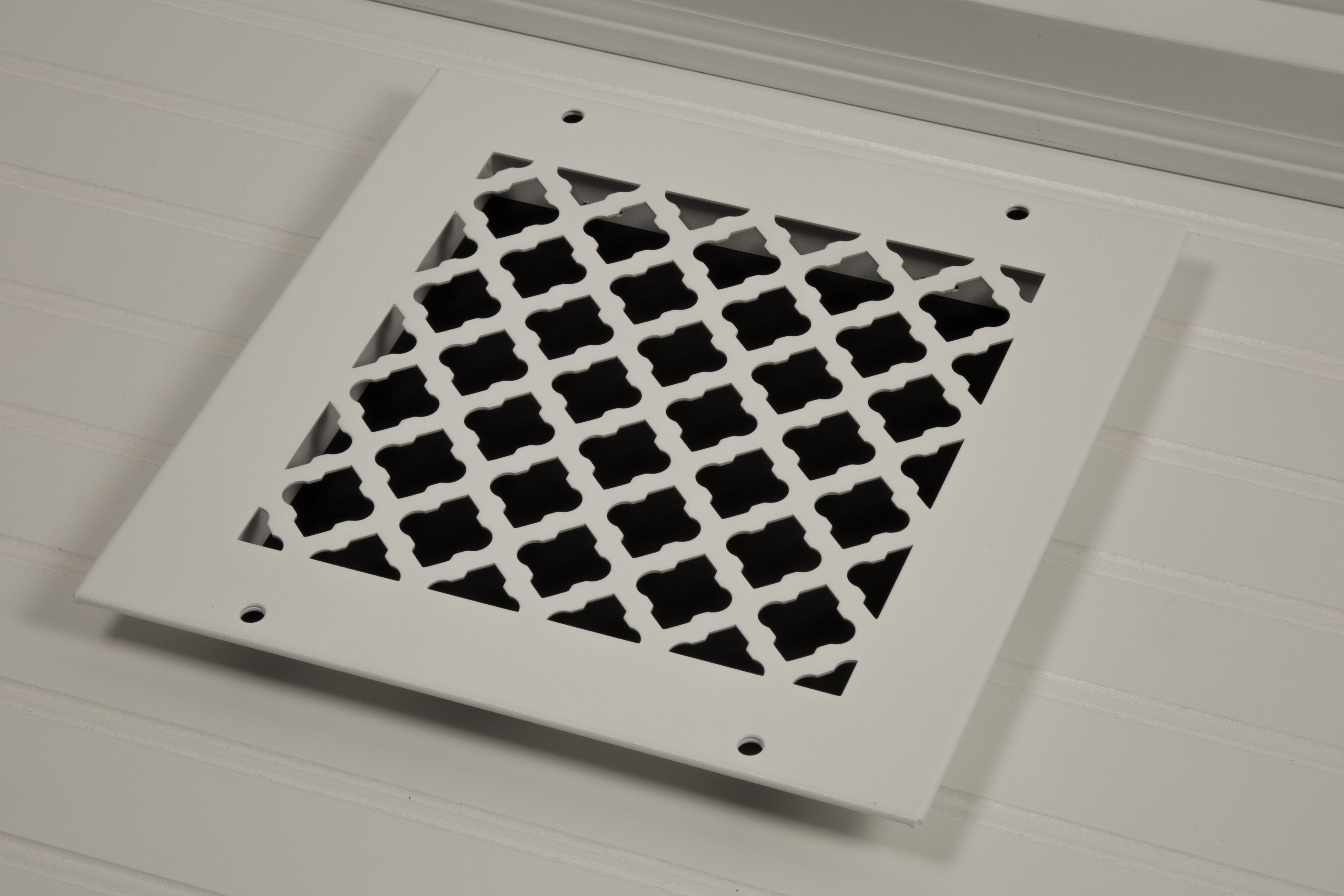

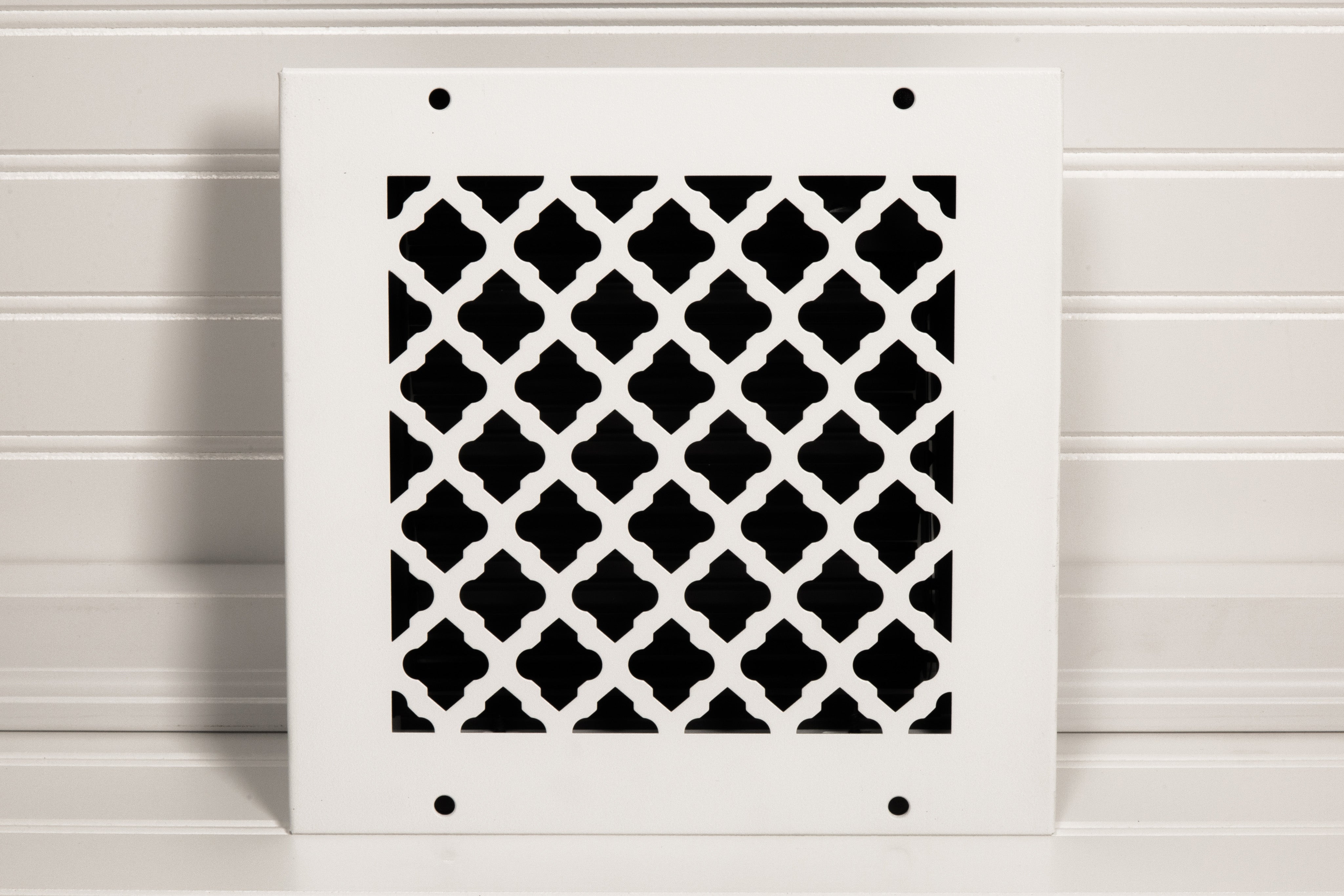

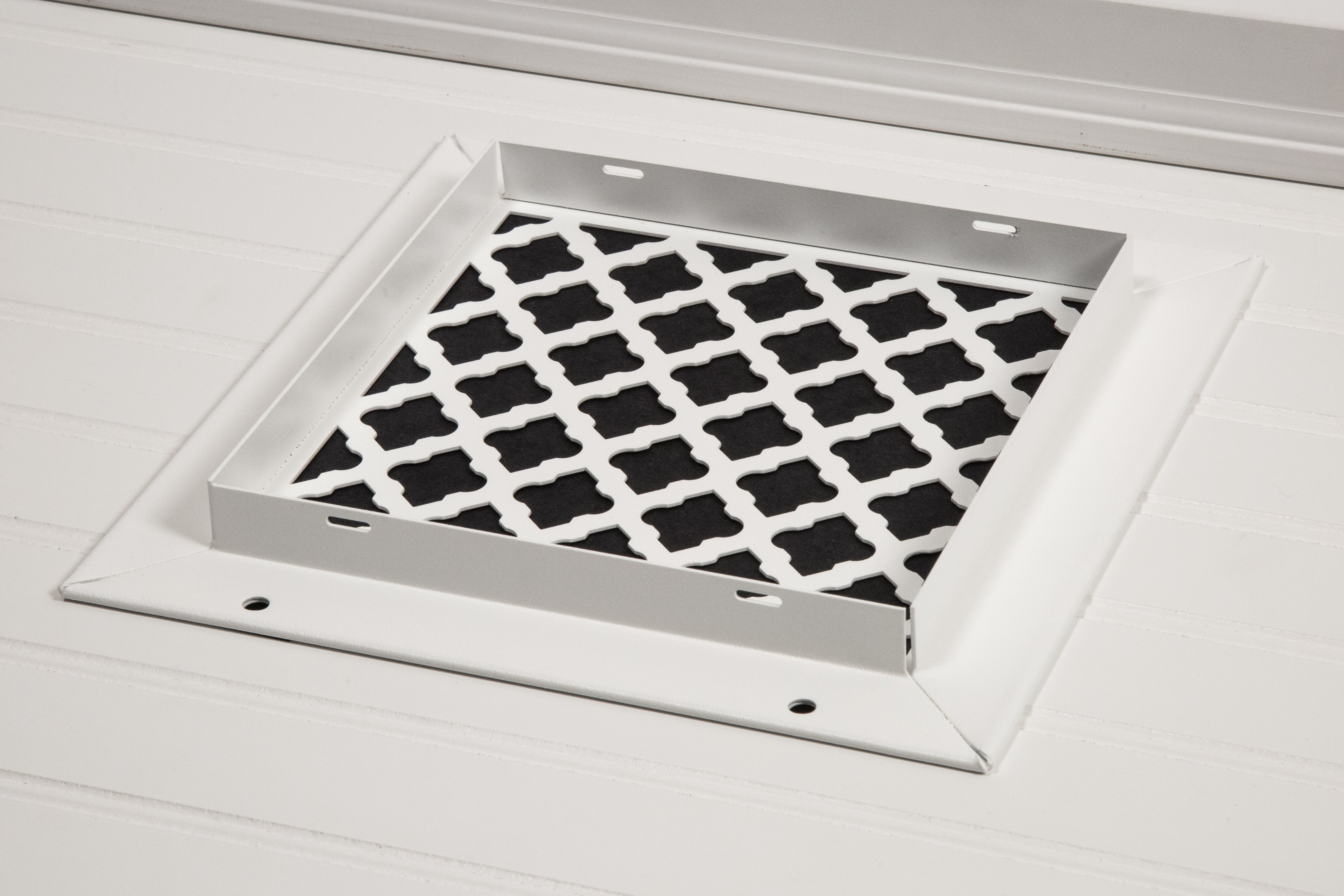

The SteelCrest BTU8X8RWHH is a fixed return air grille constructed from solid steel with a white powder-coat finish. It is designed for installation over 8x8 inch duct openings in walls or ceilings, with an overall finished face size of 10x10 inches. The slotted face design promotes consistent return airflow back to the air handling system while maintaining a clean, architectural appearance. Licensed HVAC technicians and skilled trades installers use this grille in both new construction and renovation projects where a durable, factory-finished vent cover is required.

This grille is suited for residential and light commercial HVAC systems where return air must be collected from a room and directed back to the air handler or furnace. It installs flush against drywall, plaster, or finish surfaces over a standard 8x8 inch duct collar. The 10x10 inch face size provides the overlap needed for a clean finished appearance without additional trim work. Typical applications include hallways, bedrooms, living areas, and utility spaces where a fixed, non-adjustable return grille is appropriate.

Key Features

• Solid steel construction with white powder-coat finish for long-term corrosion resistance
• Fixed slotted face design supports consistent return airflow
• Fits 8x8 inch duct opening with 10x10 inch overall face size for clean wall or ceiling coverage
• Suitable for both wall and ceiling mounting configurations
• Direct-replacement fit simplifies installation in new construction and remodel applications

Compatibility

Designed as an OEM-style direct replacement fixed return grille for residential and light commercial HVAC duct systems with an 8x8 inch return air duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified trades installer. Power down the air handling system at the disconnect or breaker before removing an existing grille or accessing the duct opening. The grille face should seat flat against the wall or ceiling surface with fasteners driven into the duct collar frame or surrounding finish material. Follow local mechanical codes for return air grille placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 8x8 inches
• Overall Face Size: 10x10 inches
• Material: Solid steel
• Finish: White powder coat
• Grille Type: Fixed return
• Mount Location: Wall or ceiling
• Package Weight: 6 pounds
• Package Dimensions: 12 x 12 x 4 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU8X8RWHH
