SteelCrest BTU18X6RWHH Fixed Return Grille 18x6

Product Description

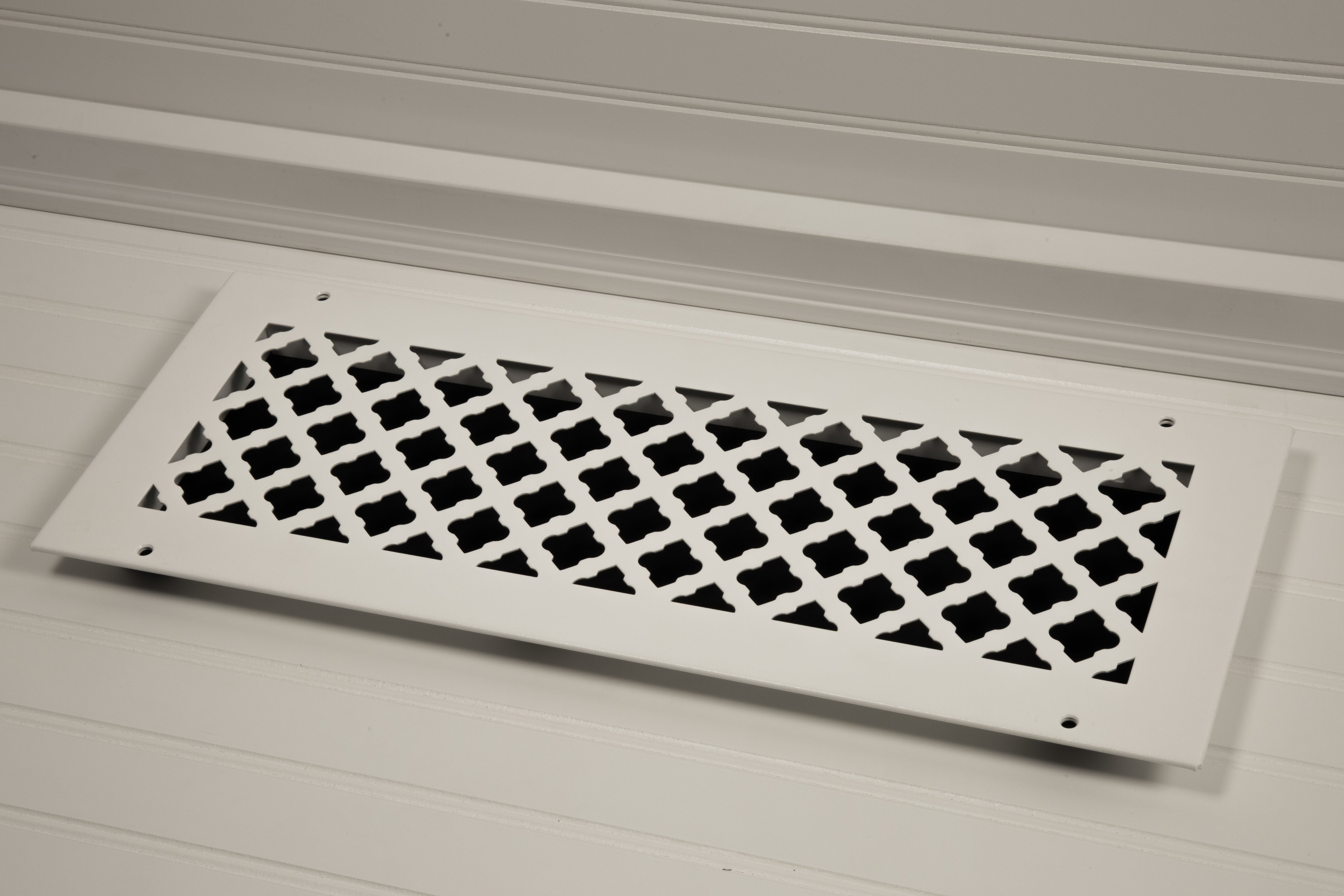

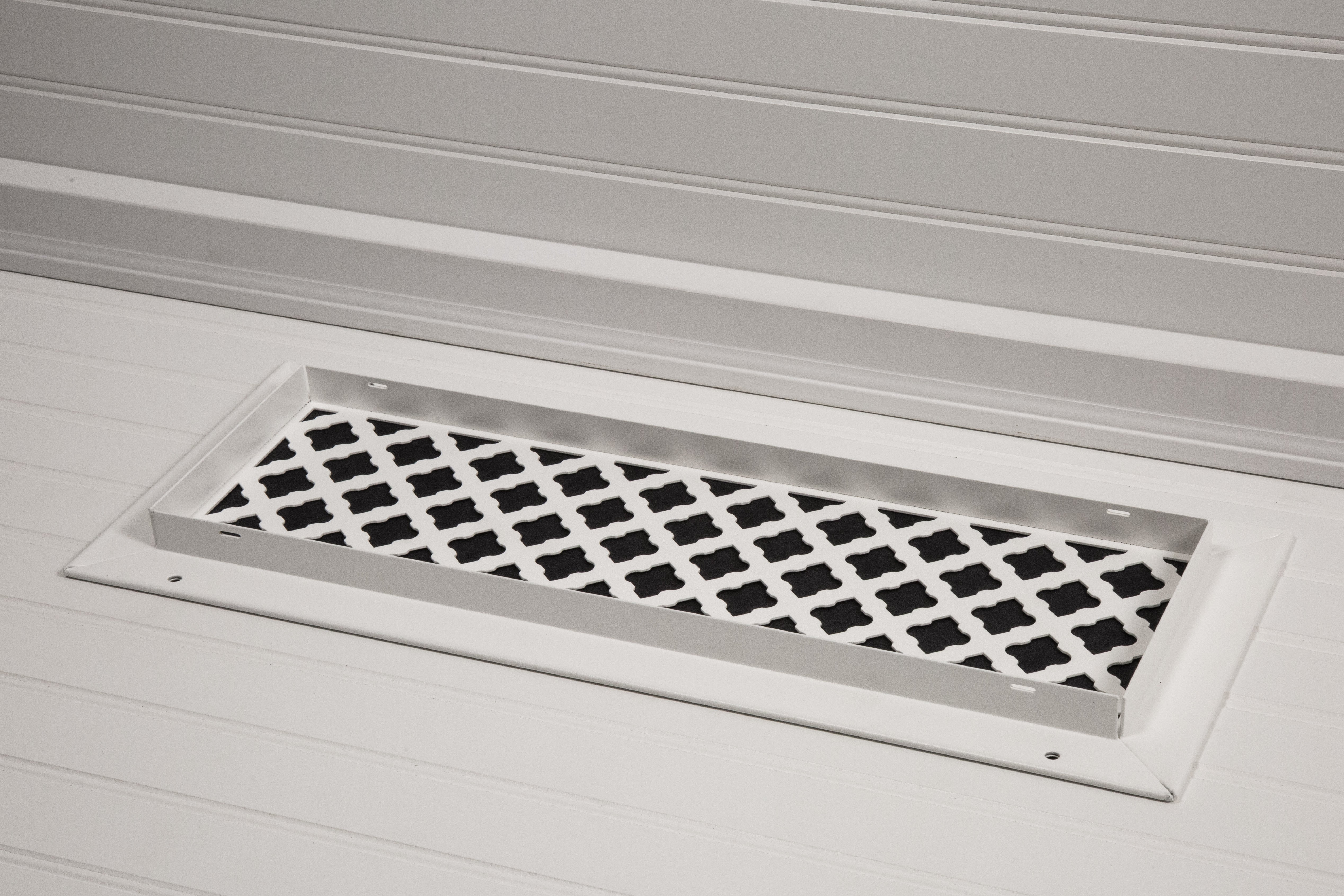

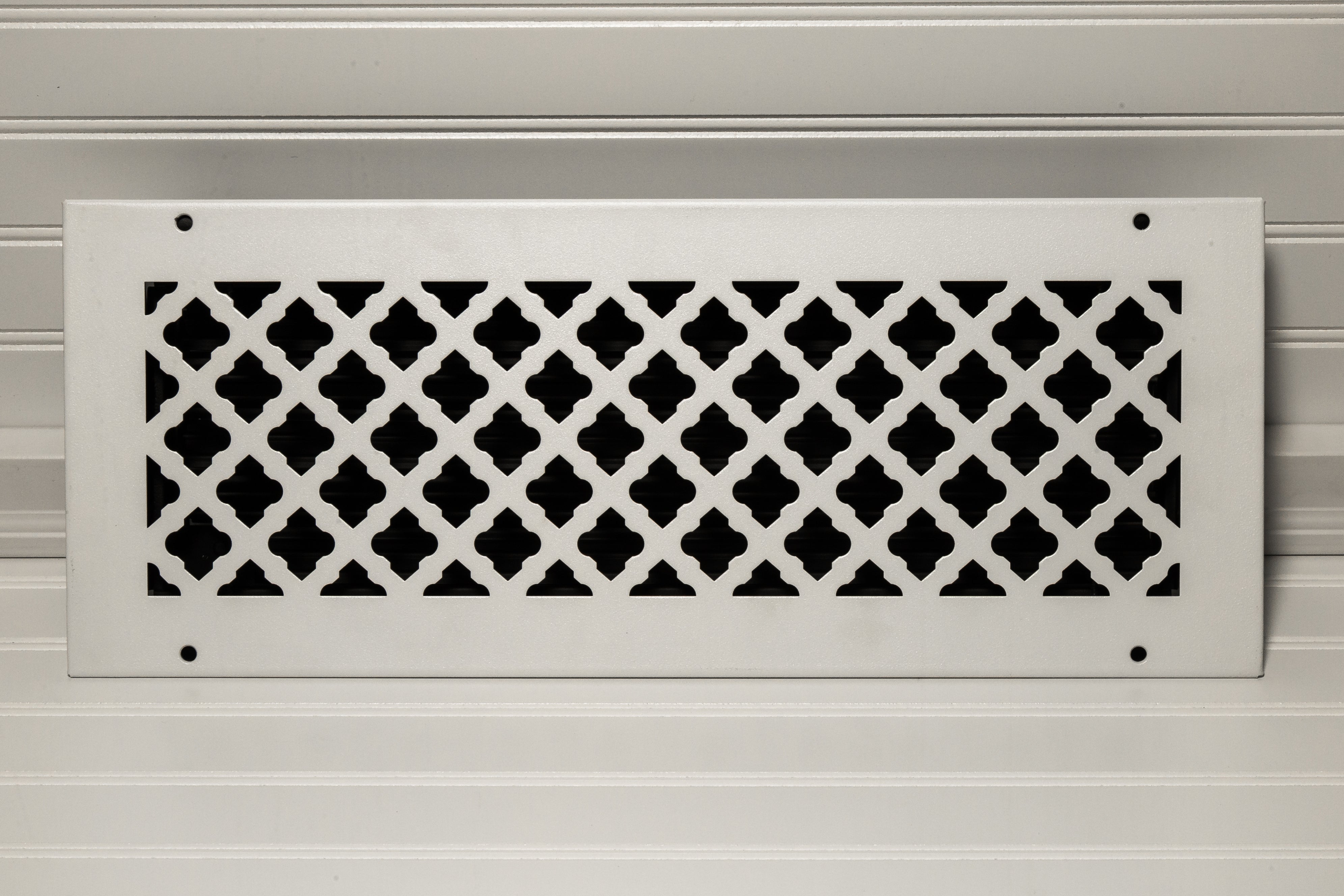

The SteelCrest BTU18X6RWHH is a fixed return air grille engineered for wall and ceiling installations in residential and light commercial HVAC systems. Constructed from solid steel with a white powder-coat finish, it delivers a clean, slotted appearance alongside long-term corrosion resistance. The grille fits an 18 x 6 inch duct opening and installs with an overall face size of 20 x 8 inches, providing a finished look that covers rough duct edges. Licensed HVAC technicians and experienced installers use this grille as a direct replacement during system upgrades, new construction, and remodel work.

This grille is suited for return air applications in ducted forced-air systems. The fixed-blade slotted design maintains consistent airflow direction without adjustment, making it appropriate for low-profile return drops in walls or flush ceiling installations. The 18 x 6 inch duct size is a standard residential return dimension commonly found in single-family homes and light commercial spaces. Its finished face dimensions of 20 x 8 inches allow it to overlap standard drywall or plaster openings cleanly without additional trim work.

Key Features

• Solid steel construction with white powder-coat finish for durability and corrosion resistance
• Fixed slotted blade design supports consistent return airflow
• Fits 18 x 6 inch duct opening with a 20 x 8 inch overall finished face size
• Compatible with wall and ceiling mounting configurations
• Direct-replacement sizing allows fast installation in new construction or remodel applications

Compatibility

Designed as an OEM-style direct replacement for standard 18 x 6 inch return air duct openings in residential and light commercial ducted forced-air HVAC systems.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified tradesperson. Power down the air handling unit at the disconnect or breaker before removing the existing grille or working near the duct opening. Verify the rough duct opening measures 18 x 6 inches before ordering to confirm fit. Secure the grille to the wall or ceiling surface using appropriate fasteners for the substrate material.

Technical Specifications

• Duct Opening Size: 18 x 6 inches
• Overall Finished Face Size: 20 x 8 inches
• Material: Solid steel
• Finish: White powder coat
• Blade Type: Fixed slotted
• Mount Location: Wall or ceiling
• Package Weight: 7 pounds
• Package Dimensions: 22 x 11 x 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU18X6RWHH
