SteelCrest BTU14X14SORBH Supply Vent Damper 14x14

Product Description

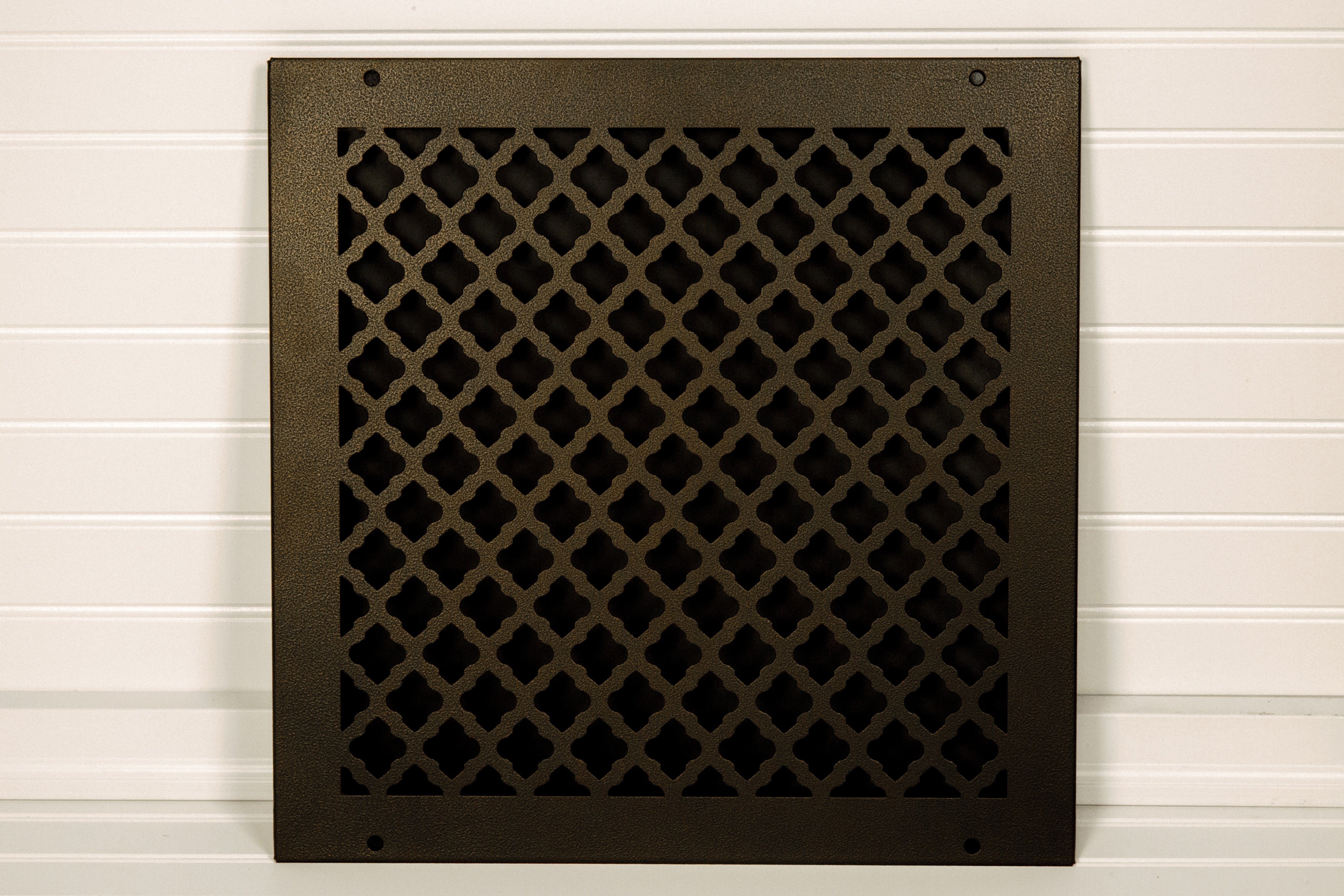

The SteelCrest BTU14X14SORBH is a decorative supply vent with an integrated damper, designed for wall and ceiling installations in residential and light commercial HVAC systems. Built from solid steel with an Oil-Rubbed Bronze powder-coat finish, it fits a 14 x 14 inch duct opening and installs with an overall finished face size of 16 x 16 inches. The slotted face design supports consistent airflow distribution while the adjustable damper allows the technician to regulate air delivery at the register level. Licensed HVAC contractors and skilled remodelers install this grille as a direct replacement or new-construction finish component.

This vent is suited for forced-air supply applications in residential new construction, renovation, and remodel projects. The 14 x 14 inch duct collar size is common in central residential HVAC systems serving larger rooms or return-air zones converted to supply. The Oil-Rubbed Bronze finish is appropriate for period-style interiors, traditional decor, or any application where standard white plastic registers are not acceptable. The 16 x 16 inch face plate provides a clean overlap around the rough duct opening in drywall, plaster, or ceiling tile.

Key Features

• Solid steel construction with Oil-Rubbed Bronze powder-coat finish for long-term durability
• Fits 14 x 14 inch duct opening with a 16 x 16 inch finished face size

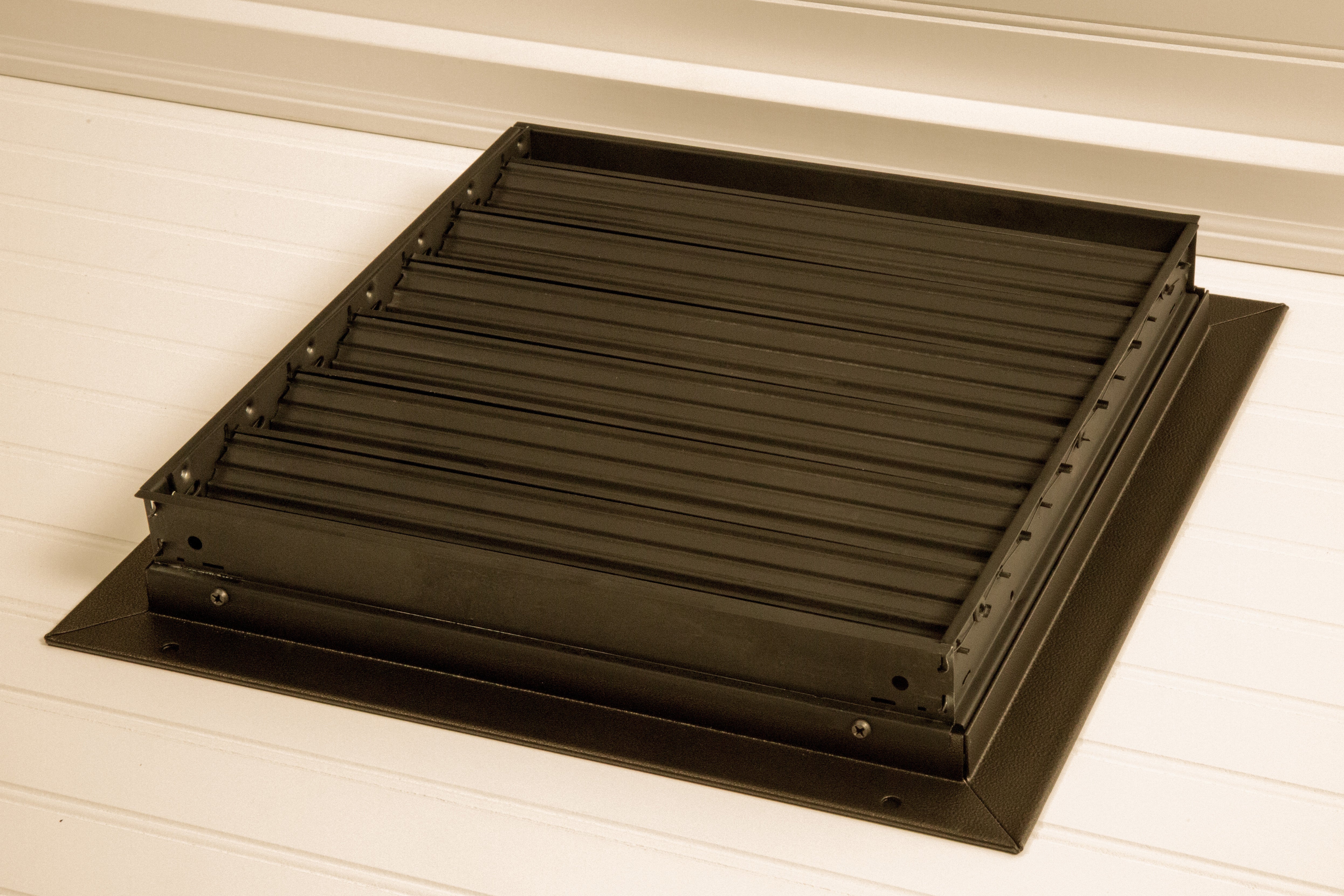

• Integrated damper allows airflow adjustment at the register
• Slotted face design promotes even air distribution across the supply opening
• Suitable for both wall and ceiling mounting
• Direct-replacement fit for standard 14 x 14 inch duct collars in new construction and remodel installs

Compatibility

Designed as a direct-replacement supply grille for standard 14 x 14 inch duct openings in residential forced-air HVAC systems installed in walls or ceilings.

Installation Notes

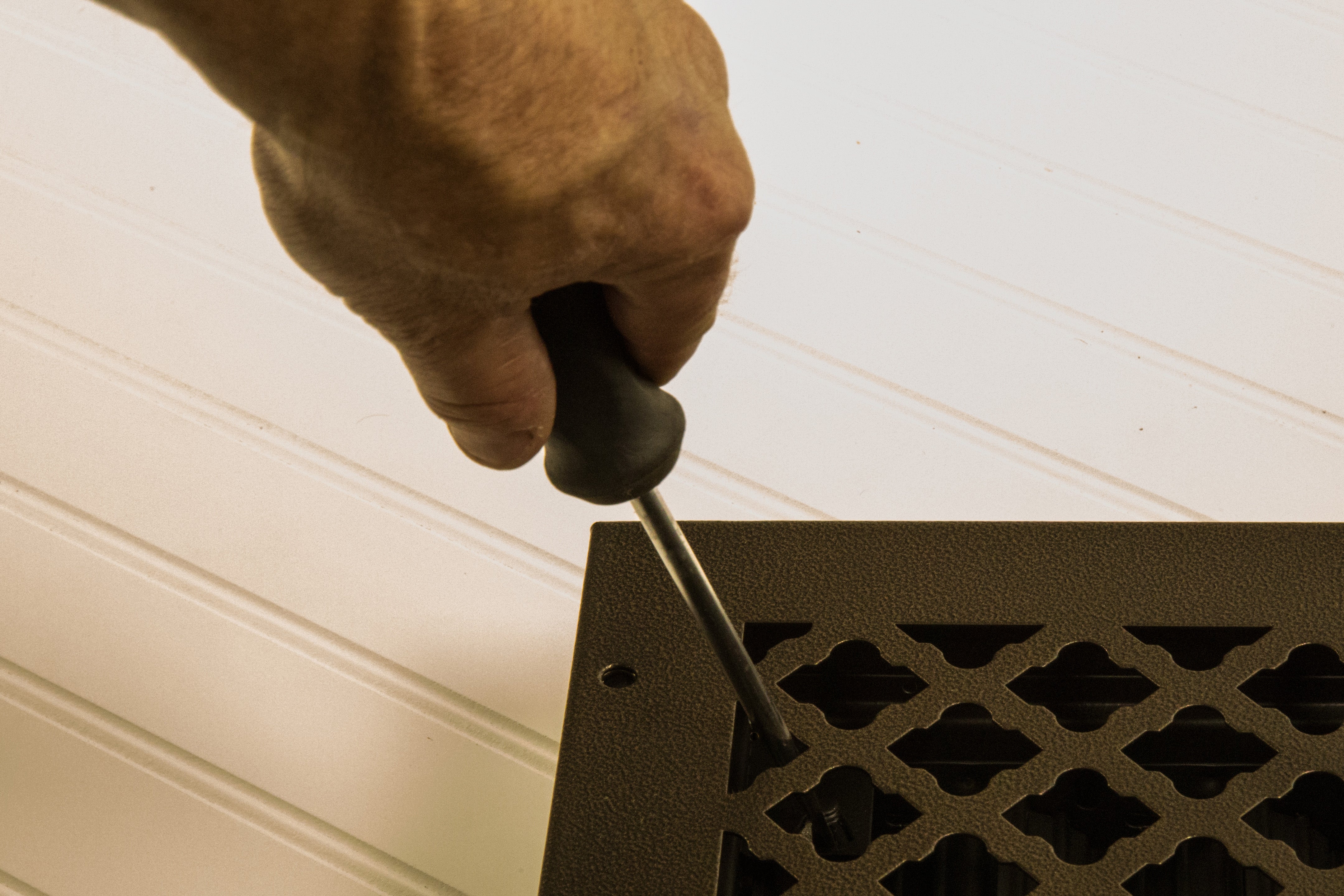

Installation is performed by licensed HVAC technicians or qualified contractors. Power down the air handler or furnace at the disconnect before removing the existing grille or accessing the duct collar. Secure the grille to the wall or ceiling surface using the manufacturer-provided mounting points, ensuring the face plate fully overlaps the duct opening on all sides. Verify the damper blade moves freely and is set to the desired position before completing the install.

Technical Specifications

• Duct Opening Size: 14 x 14 inches
• Finished Face Size: 16 x 16 inches
• Material: Solid Steel
• Finish: Oil-Rubbed Bronze Powder Coat
• Mounting Location: Wall or Ceiling
• Package Weight: 6 pounds
• Package Dimensions: 18 x 18 x 4 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU14X14SORBH
