SteelCrest BTU10X2.25RWHN Fixed Return Floor Grille

Product Description

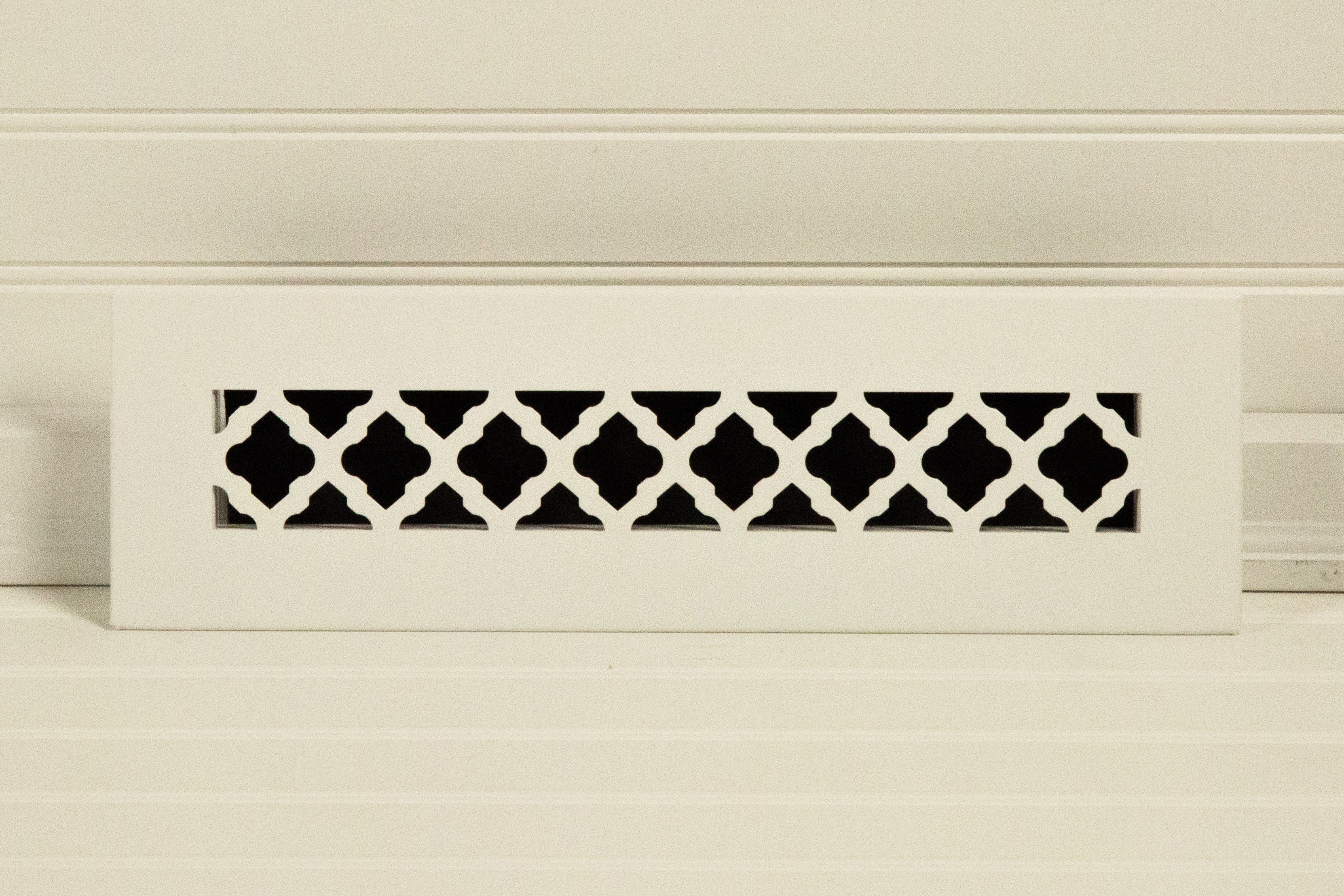

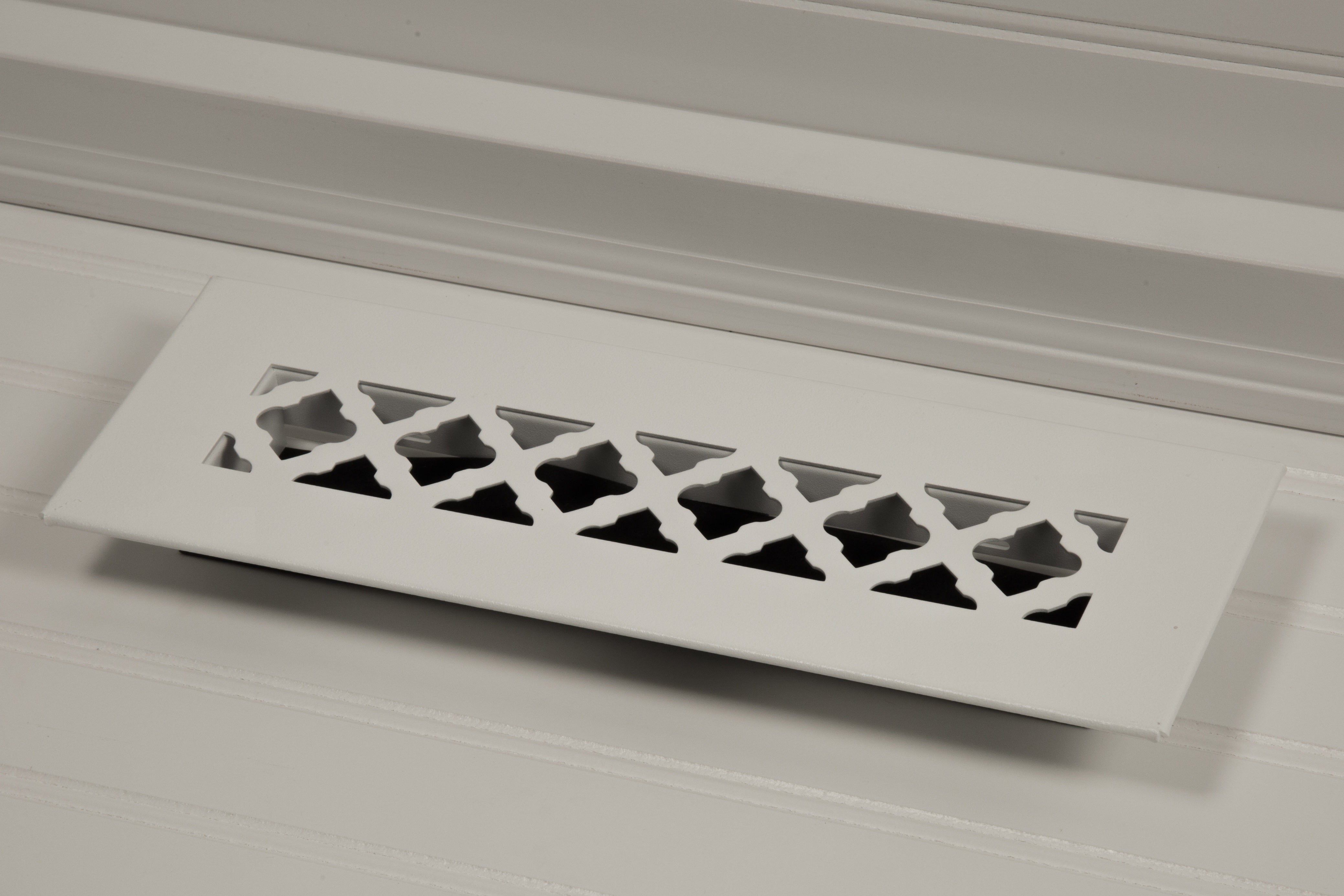

The SteelCrest BTU10X2.25RWHN is a fixed-blade return air grille designed for floor installation in residential HVAC systems. Constructed from solid steel with a white powder-coat finish, it provides long-term corrosion resistance and a clean finished appearance. The slotted grille pattern supports steady return airflow back to the air handler or furnace. It fits a 10 x 2.25 inch duct opening and installs with an overall face size of 12 x 4.25 inches, covering the rough duct opening cleanly. HVAC installers and remodelers reach for this grille when upgrading builder-grade covers or completing new construction rough-ins that require a durable, low-profile floor return.

This grille is suited for residential forced-air systems where a floor-mounted return air location is required. The 10 x 2.25 inch duct size is common in narrow floor joist bays and perimeter return runs. The fixed-blade design makes it appropriate for return air applications only, not supply air where directional airflow control is needed. It works well in new construction, renovation, and remodel projects where a consistent, timeless aesthetic is specified across multiple registers and grilles in the same space.

Key Features

• Solid steel construction with white powder-coat finish for durability and corrosion resistance
• Fixed slotted blade design engineered for return air floor applications
• Fits 10 x 2.25 inch duct opening with a 12 x 4.25 inch overall face size for clean coverage
• Drop-in replacement fit speeds installation in new construction and remodel applications
• Low-profile design suits finished living spaces with hardwood, tile, or other floor surfaces

Compatibility

Designed as a direct-replacement return air floor grille for residential forced-air HVAC systems with a 10 x 2.25 inch duct opening.

Installation Notes

Installation is typically performed by HVAC technicians or finish contractors during rough-in or trim-out phases. Confirm the duct opening measures 10 x 2.25 inches before ordering to ensure proper fit. No fasteners or tools are generally required for drop-in floor grille installations, though some applications may use screws at the frame perimeter to secure the grille flush to the floor surface. This is a return air grille only and must not be used on pressurized supply air duct openings.

Technical Specifications

• Duct Opening Size: 10 x 2.25 inches
• Overall Face Size: 12 x 4.25 inches
• Material: Solid Steel
• Finish: White Powder-Coat
• Blade Type: Fixed Slotted
• Application: Return Air Floor Grille
• Package Weight: 2 pounds
• Package Dimensions: 14 x 7 x 3 inches
• Minimum Order Quantity: 1

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU10X2.25RWHN
