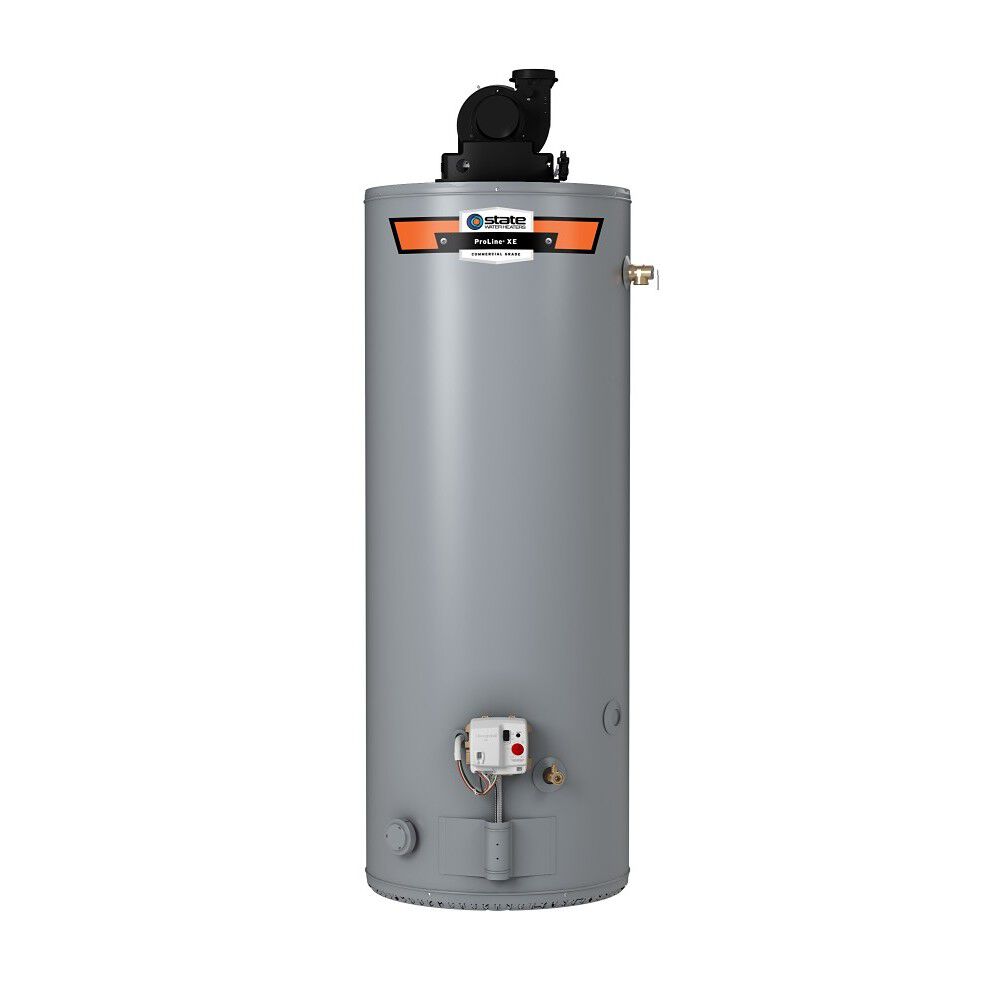

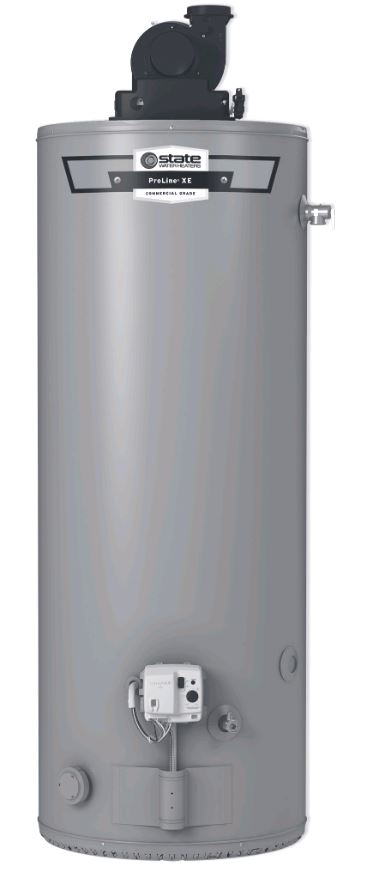

State Water Heaters GS6 75 HRVHTL ProLine XE 75-Gallon Power Vent Liquid Propane Water Heater

Product Description

The STATE WATER HEATERS GS6 75 HRVHTL ProLine XE power vent liquid propane water heater maximizes efficiency and provides flexible installation options. Features a 75-gallon tank and a 76,000 BTU propane burner, delivering a first-hour rating of 116 gallons and a recovery rate of 80.4 gallons per hour.

• Delivers a 116-gallon first hour rating
• 76,000 BTU input power vent design delivers up to 0.69 Uniform Energy Factor
• Patented Green Choice Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This water heater features a rotatable blower outlet, stainless steel CoreGard anode rod, Blue Diamond glass lining, and DynaClean automatic sediment-cleaning.

Product Information

Standard Information

• Brand: STATE WATER HEATERS
• Manufacturer Part Number: GS6 75 HRVHTL
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 75 Gallons
• Rated Storage Volume: 72 Gallons
• UEF: 0.69
• Thermal Efficiency: 82%
• Maximum BTUs: 76,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 0.75"
• Emissions: Low NOx
• First Hour Rating: 116 Gallons
• ASME Certified: No
• Amperes: 5
• Digital Display: Yes
• Flue Diameter: 5.00
• Fuel Source: PROPANE
• Height to T&P: 53.25
• Ignition Type: Electronic Hot Surface Igniter
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: Yes
• Voltage: 120
• Type: Water Heater
• Height: 61.25"
• Diameter: 26"
• Vent Type: Power Vent
• Height to Gas Valve: 13.75"
• Fuel Type: Propane Gas
• Tankless: No
• Tank Size (Gallons): 75
• Building Type: Residential
• Water Heater Height (inches): 61.25
• Diameter/Width (inches): 26
• Water Inlet Size: 3/4 Male
• Gas Connection (inches): 1/2
• Vent Size (inches): 3, 4
• Height Including Draft Hood (inches): 70.625
• Approximate Weight (pounds): 277
• BTU Rating: 76000 Btu/hr
• Capacity: 75 gal
• Dimensions: 61-1/4 in H x 26 in W x 33-1/8 in D
• Efficiency: 69 %
• Energy Factor: 0.69
• First Hour Delivery: 116 gal
• Ignition: Electronic
• Recovery Rate: 80 gal
