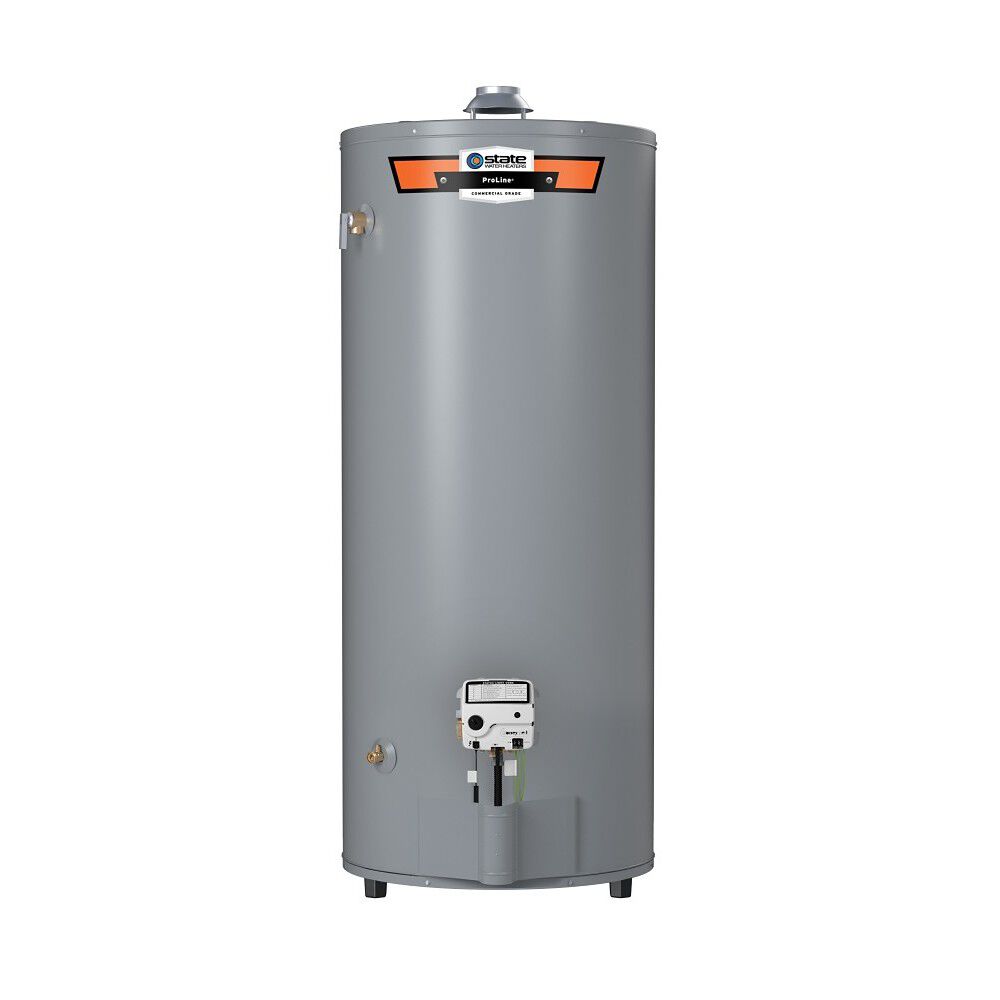

State GS675URRS ProLine® Low NOx 74-Gallon Water Heater

Product Description

The State GS675URRS ProLine® 74-Gallon High-Recovery Atmospheric Vent Gas Water Heater features a 75,100 BTU gas burner to deliver a first-hour rating of 125 gallons and a recovery rate up to 81 gallons per hour. The GS6-75-XRRS has a thermal efficiency of 80% and a Uniform Energy Factor of 0.60. A patented Green Choice® eco-friendly burner design reduces NOx emissions up to 33%.

• Delivers a 125-gallon first hour rating
• High capacity gas water heater uses 75,100 BTU atmospheric vent input
• Patented Green Choice® Gas Burner design reduces NOx emissions by up to 33%

Product Highlights

This ProLine® water heater features advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: GS675URRS
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 74 Gallons
• Rated Storage Volume: 71 Gallons
• UEF: 0.6
• Thermal Efficiency: 80%
• Maximum BTUs: 75,100
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Location: TOP
• Water Connection Size: 1"
• Emissions: Low NOx
• First Hour Rating: 125 Gallons
• ASME Certified: No
• Blanket Included: No
• Destination Country: US
• Flue Diameter: 5.00
• Fuel Source: NATURAL
• Ignition Type: Piezo Pushbutton
• Installation Type: INDOOR
• Application: RESIDENTIAL
• Side Loop: No
• Type: Water Heater
• Vent Type: Atmospheric Vent
• AFUE Rating: 0.6 %
• Additional Information: 1 in Water Inlet and Outlet, Short-Type
• BTU Rating: 75100 Btu/hr
• Capacity: 74 gal
• Dimensions: 26 in Dia x 57 in H
• Energy Factor: 0.6
• Finish: Blue Diamond Glass-Coated
• First Hour Delivery: 125 gal
• Fuel Type: Natural Gas
• Pressure Rating: 150 psi
• Recovery Rate: 81 gph
• Series: 100 Series
• Lead-Free/Contains Lead: Contains Lead
