Starrett 64220 Dial Test Indicator Kit 7 Piece

Product Description

The STARRETT 64220 is a 7-piece dial test indicator kit built for precision measurement in machine shop, toolroom, and manufacturing environments. The indicator features a 0.06 inch measuring range with a dial graduation of 0.0005 inches, making it suitable for runout checks, surface alignment, and part inspection work. The 1-3/8 inch diameter white dial reads 0-15-0 with a revolution count hand for clear tracking during use. The narrow body and angled head design allow access in tight setups. This kit is typically installed and used by machinists, tool-and-die workers, and metrology technicians.

The STARRETT 64220 is suited for use in precision machining and inspection applications, including setup on mill tables, lathe tailstocks, surface plates, and fixture verification. The dovetail mount and included dovetail body clamp allow secure attachment to standard indicator holders and magnetic base arms. The swivel post snug with dovetail indicator clamp and tool post holder expand mounting options for lathe and mill applications. The kit includes all commonly needed accessories for immediate deployment in a production or inspection setting.

Key Features

• 0.0005 inch dial graduation for high-resolution measurement
• 0.06 inch total measuring range with 0-15-0 dial reading
• Jeweled movement and precision gear-driven design for consistent accuracy
• Angled head and narrow body for access in confined setups
• Adjustable and replaceable carbide contact point with 0.078 inch ball diameter
• Satin chrome finish with dovetail mount for compatibility with standard holders

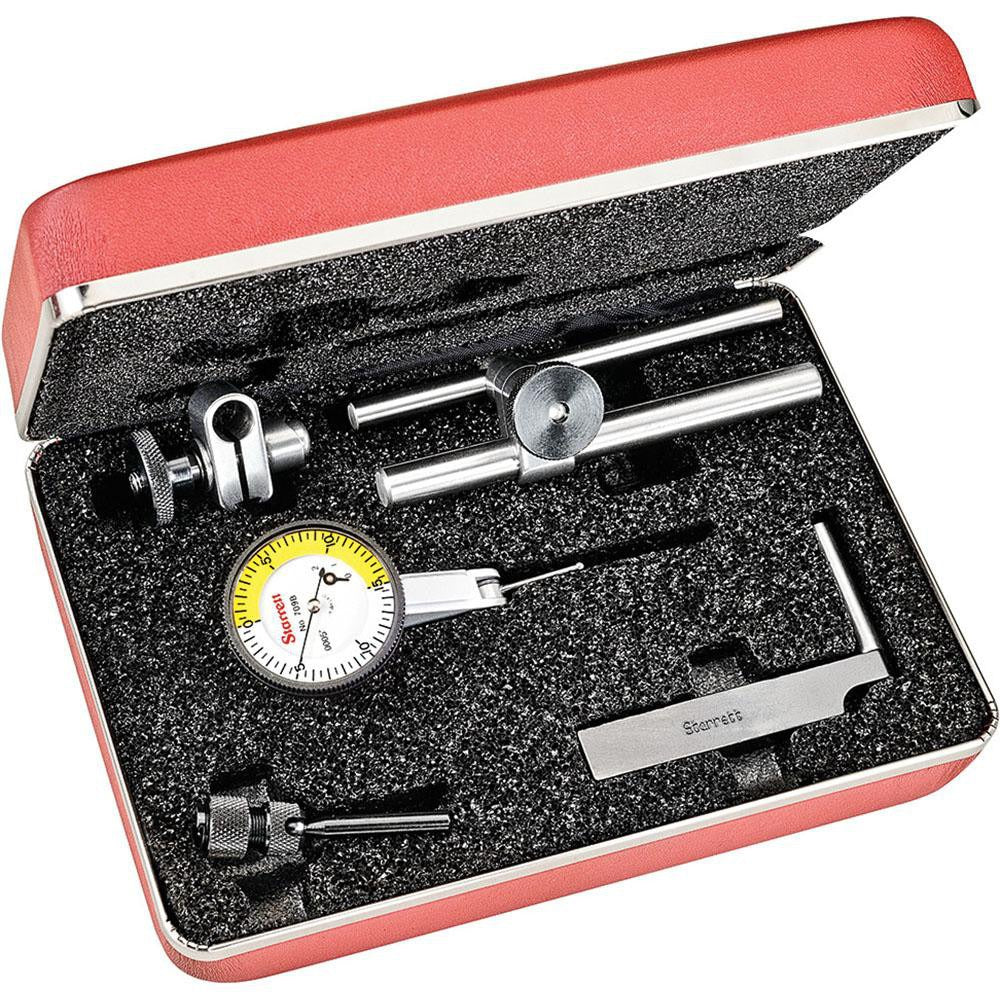

• 7-piece kit includes indicator, dovetail body clamp, snug and rod unit, swivel post snug with dovetail indicator clamp, tool post holder, carbide contact, and carrying case

Compatibility

Designed as an OEM-style precision measurement tool compatible with standard dovetail-style indicator holders, magnetic bases, and tool post mounts used in general machining and inspection setups. This unit is part of the STARRETT Series 709 and carries the manufacturer catalog number 709BCZ.

Installation Notes

Dial test indicators are installed by machinists and metrology technicians and require no electrical power or fluid shutoff prior to setup. Secure the dovetail mount or snug attachment firmly before zeroing the indicator to avoid measurement error from clamp movement. Do not overtighten the contact point or force the spindle beyond its rated travel range. Handle the jeweled movement with care to avoid impact damage that can affect calibration.
