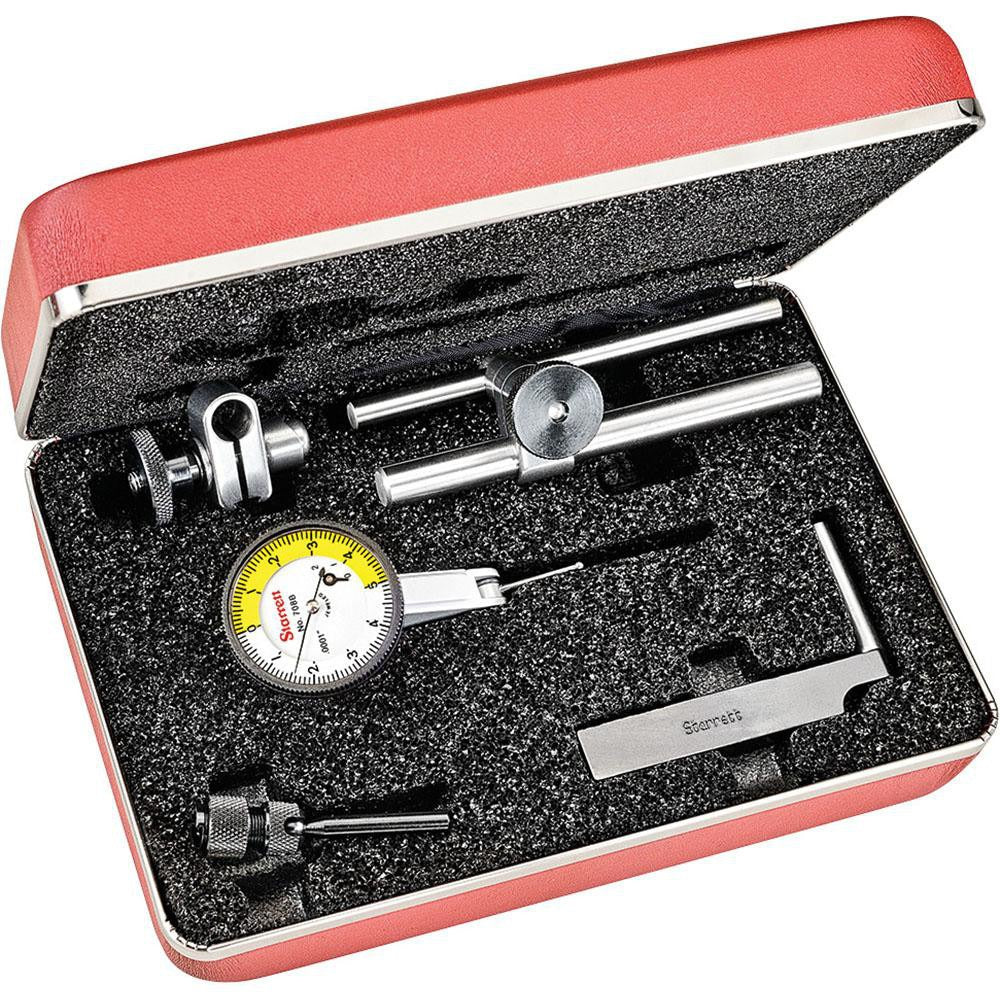

Starrett 64218 Dial Test Indicator Kit 7 Pc 0.02 in

Product Description

The STARRETT 64218 is a 7-piece dial test indicator kit built for precision measurement in machining, toolroom, and quality-control applications. The indicator features a 0.02 inch measuring range with a dial graduation of 0.0001 inches, delivering the resolution required for tight-tolerance work. The 1-3/8 inch (1.375 inch) white dial reads 0-5-0 with a revolution count hand for clear bidirectional measurement. A jeweled movement and precision gear-driven design maintain accuracy through repeated use. Licensed machinists, tool-and-die makers, and metrology technicians are the primary users of this kit.

This kit is suited for horizontal and vertical surface inspection, machine tool setup, runout checks, and fixture alignment in both shop and lab environments. The dovetail mount and narrow body allow the indicator to reach into confined areas. The included accessories cover a range of common mounting and positioning scenarios, making the kit ready for use without sourcing additional components separately.

Key Features

• 0.02 inch measuring range with 0.0001 inch dial graduation for high-resolution readings
• Jeweled movement and precision gear-driven design for long-term repeatability
• Angled head and narrow body for access in tight or obstructed measurement locations
• Dovetail mount with adjustable and replaceable carbide contact point
• Satin chrome finish on durable narrow body
• 7-piece kit includes carbide contact, case, dovetail body clamp, snug and rod unit, swivel post snug with dovetail indicator clamp, and tool post holder

Compatibility

The STARRETT 64218 belongs to the Series 708 line of dial test indicators. Designed as a dovetail-mount indicator compatible with standard dovetail clamps and toolholding accessories common to machine tool and metrology setups. No additional specific model compatibility was provided by the manufacturer for this listing.

Installation Notes

Installation and use of this indicator kit is typically performed by machinists or metrology technicians familiar with dial test indicator mounting and surface inspection procedures. Secure the dovetail clamp firmly before taking measurements to prevent indicator movement and false readings. Do not overtighten the dovetail clamp on the indicator body, as excessive clamping force can affect measurement accuracy. Always zero the indicator against a known reference surface before beginning a measurement sequence.
