Starrett 53400 Dial Drop Indicator 0 to 0.25 in Range

Product Description

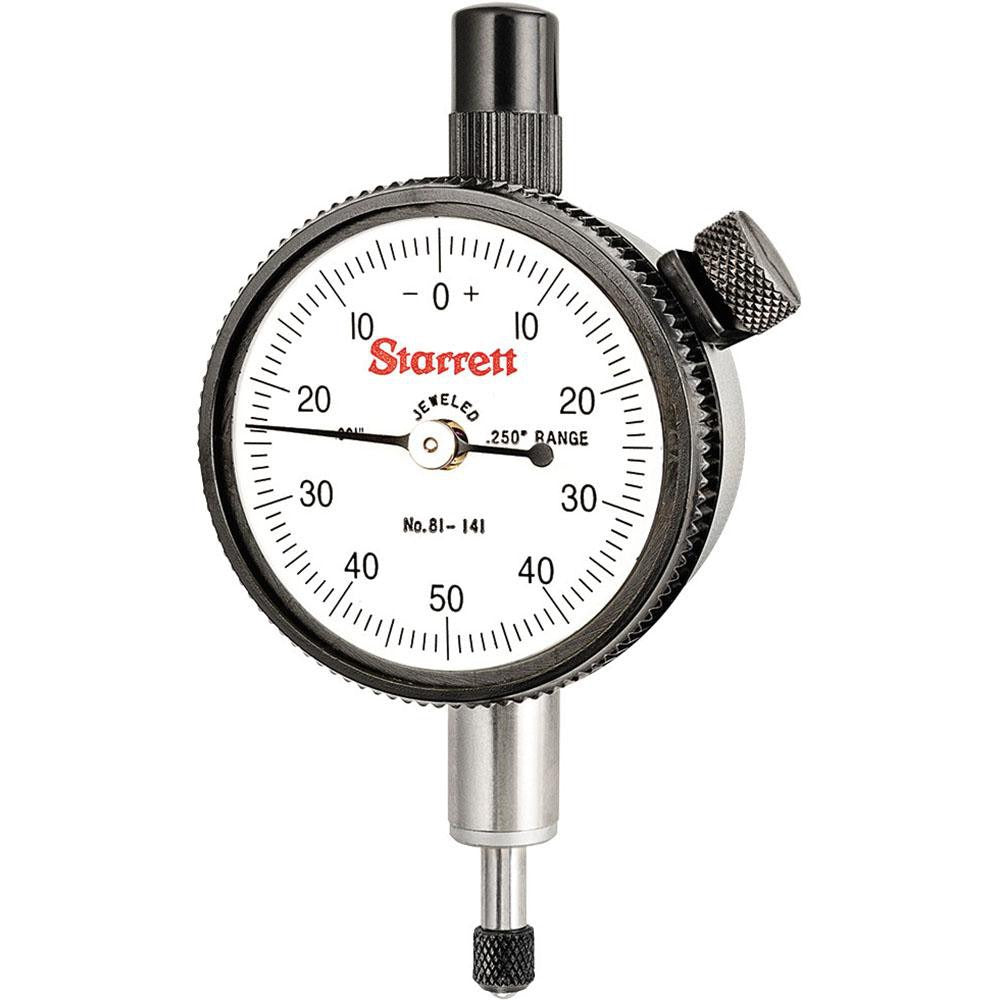

The STARRETT 53400 is a dial drop indicator designed for precise linear displacement measurement in machine shop, maintenance, and quality control applications. It covers a measuring range of 0 to 0.25 inches with a dial graduation of 0.001 inches, giving technicians clear, repeatable readings on a 0-50-0 dial face. The 1-11/16 inch diameter white dial carries a no-glare satin finish and is protected by an unbreakable crystal. A jeweled bearing mechanism supports smooth stylus travel, and the stainless steel stem adds durability in shop environments. The built-in revolution counter tracks full stem cycles, reducing read errors during longer measurements.

The 53400 suits precision alignment, runout checks, surface flatness verification, and fixture setup work in machining, fabrication, and maintenance trades. The lug back mount makes it easy to attach to magnetic bases, transfer arms, and indicator holders commonly used on mills, lathes, and surface plates. A flat back is included in the package for setups that require a flat-mounted configuration. The sharp bezel and rugged construction hold up to repeated handling in production and field service environments.

Key Features

• Measuring range of 0 to 0.25 inches with 0.001 inches graduation for fine displacement readings
• 0-50-0 balanced dial reading for bidirectional measurement without resetting the indicator
• 0.1 inches of travel per revolution keeps readings easy to track across the dial face
• Jeweled bearing for smooth, consistent stylus movement and long service life
• No-glare satin finish white dial with unbreakable crystal for clear visibility
• Lug back included; flat back also included for flexible mounting options
• Stainless steel stem resists corrosion in wet or coolant-exposed environments

Compatibility

Designed as an OEM-style dial drop indicator compatible with standard lug-back and flat-back indicator holders, magnetic bases, and transfer arms accepting a 0.375 inch stem diameter.

Installation Notes

Installation and setup are typically performed by machinists, metrology technicians, or maintenance mechanics. Before mounting, ensure the indicator holder or magnetic base is firmly locked and the workpiece or machine spindle is stationary. Secure the lug back or flat back attachment snugly to prevent indicator slippage during measurement. Do not exceed the stated 0.25 inch travel range, as overtravel can damage the internal mechanism.
