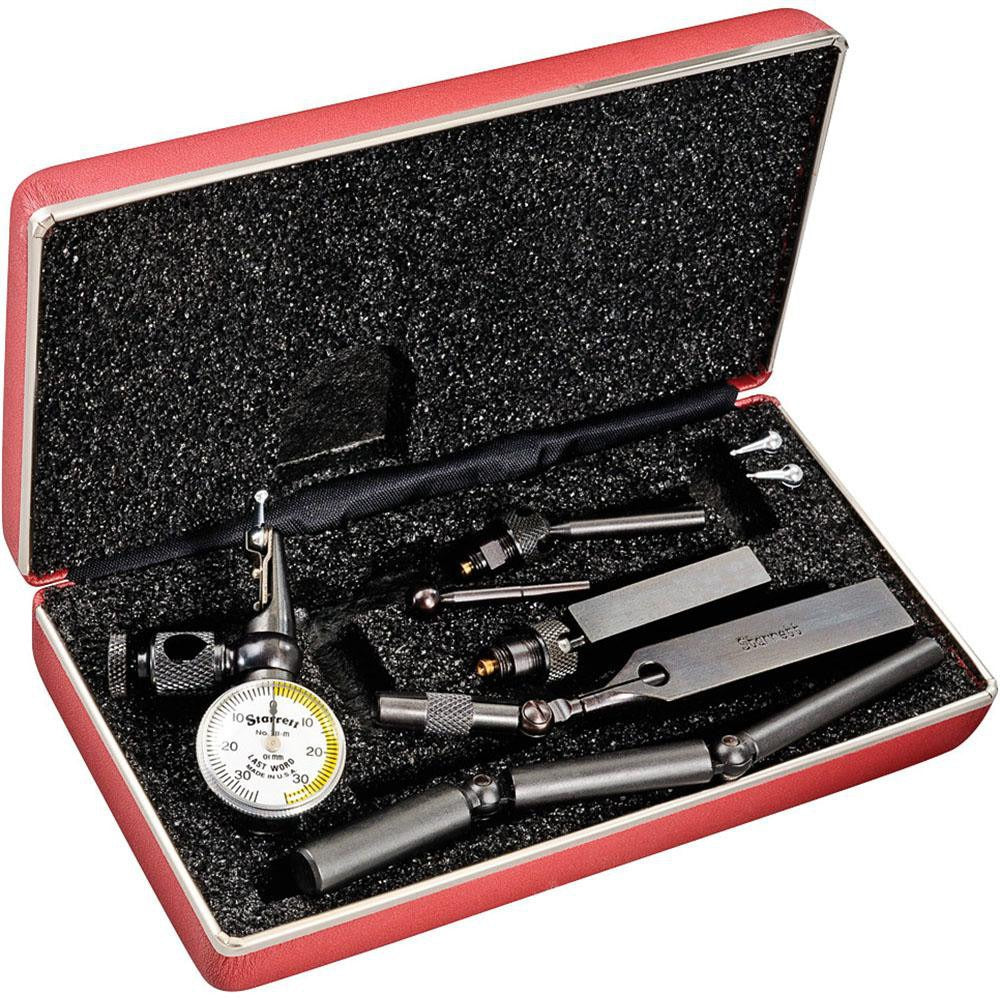

Starrett 52945 Dial Test Indicator Kit 11 Piece

Product Description

The STARRETT 52945 is an 11-piece dial test indicator kit designed for precise surface, height, and comparative measurement work in machine shops, tool rooms, and industrial maintenance environments. The kit centers on a Series 711 dial test indicator featuring a 15/16-inch diameter white dial with a 0-35-0 reading and 0.010 mm graduation. Jeweled lever action and a positive reversing switch provide smooth, repeatable measurement. The swiveling tubular body and interchangeable contact points give technicians the flexibility to reach tight or awkward measurement surfaces. Licensed machinists, tool and die makers, and precision maintenance techs are the primary installers and users of this equipment.

This kit is suited for layout and inspection work on machining centers, surface plates, and height gages in both job shop and production environments. The included attachments support surface gage, height gage, and double-jointed mounting configurations. All components store in a fitted case, keeping the kit organized and protected between uses. The three interchangeable ball-style contact points in 0.035, 0.062, and 0.120-inch diameters cover a wide range of bore, slot, and surface applications.

Key Features

• Jeweled lever action for smooth, accurate measurement with minimal wear
• Positive reversing switch allows quick direction change without removing the indicator
• Swiveling tubular body positions the dial face for easy reading at any angle
• Three interchangeable ball contact points: 0.035, 0.062, and 0.120 inches in diameter
• Includes surface gage attachment, height gage attachment, double-jointed attachment, universal friction holder, and universal shank with long and short arm
• Hard chrome-plated contact point for durability on hardened surfaces
• Complete kit stored in a fitted carrying case

Compatibility

Designed for use with standard surface gages, height gages, and universal friction holders common in precision measurement setups. All included attachments are matched to the Series 711 dial test indicator body.

Installation Notes

Dial test indicators are installed by machinists, quality technicians, and precision maintenance personnel using standard indicator holders, magnetic bases, or the included friction holder and shank hardware. Before mounting, ensure all contact surfaces and attachment threads are clean and free of chips or burrs. Avoid side-loading the indicator spindle beyond the specified range per revolution, as this can damage the jeweled lever mechanism. Store the kit in its case when not in use to protect the indicator and contact points from contamination and impact.
