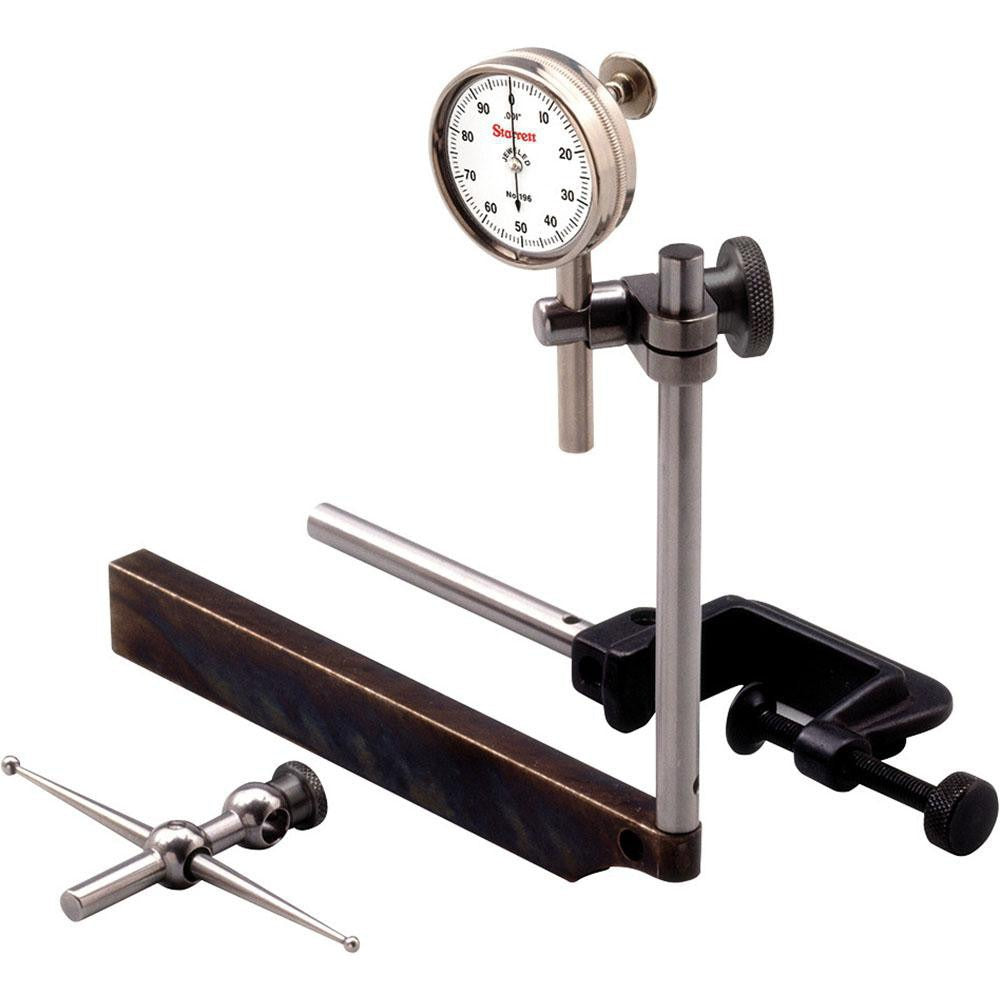

Starrett 50697 Dial Test Indicator Kit 10 Pc Series 196

Product Description

The STARRETT 50697 is a 10-piece dial test indicator kit designed for precision measurement in trade and industrial settings. Built around the Series 196 dial test indicator, the kit delivers a measuring range of 0 to 0.2 inches with a dial graduation of 0.001 inches, making it well-suited for runout checks, surface alignment, and machine setup work. The white-face dial reads 0 to 100 and measures 1-7/16 inches in diameter for clear visibility in tight work areas. The complete accessory set supports a wide variety of fixturing and mounting configurations without sourcing separate components. Machinists, millwrights, and tool-and-die technicians are the primary users of this kit.

The Series 196 dial test indicator kit is used in machine shops, manufacturing facilities, and maintenance environments where repeatable, accurate measurement is required. Typical applications include lathe and mill setup, spindle runout verification, surface plate inspection, and fixture alignment. The included contact points, adapter, hole attachment, snug, tool post holder, clamp, and carrying case make this kit ready for immediate deployment across multiple setup scenarios without additional tooling.

Key Features

• 0.2 inch total measuring range with 0.001 inch dial graduation for fine-resolution readings
• 1-7/16 inch white-face dial with 0-100 reading scale for easy interpretation
• 10-piece kit includes contact points, adapter, hole attachment, snug, tool post holder, clamp, and carrying case
• Series 196 indicator construction rated for accurate, rugged, and smooth operation
• Self-contained kit reduces time spent sourcing individual accessories

Compatibility

Designed as an OEM-style accessory kit built around the STARRETT Series 196 dial test indicator for use with standard indicator holders, tool posts, and surface plate setups common in machine shop and industrial maintenance environments.

Installation Notes

Installation and setup should be performed by a qualified machinist or maintenance technician familiar with precision measurement instruments. Power down and lock out any rotating equipment before mounting or adjusting the indicator and its fixtures. Use the included clamp, snug, and tool post holder to secure the indicator firmly before taking measurements to prevent false readings. Handle the dial face and contact points carefully to avoid damage that would affect calibration accuracy.
