Star Water Systems DW40E1726 Deep Well Ejector 90 Ft

Product Description

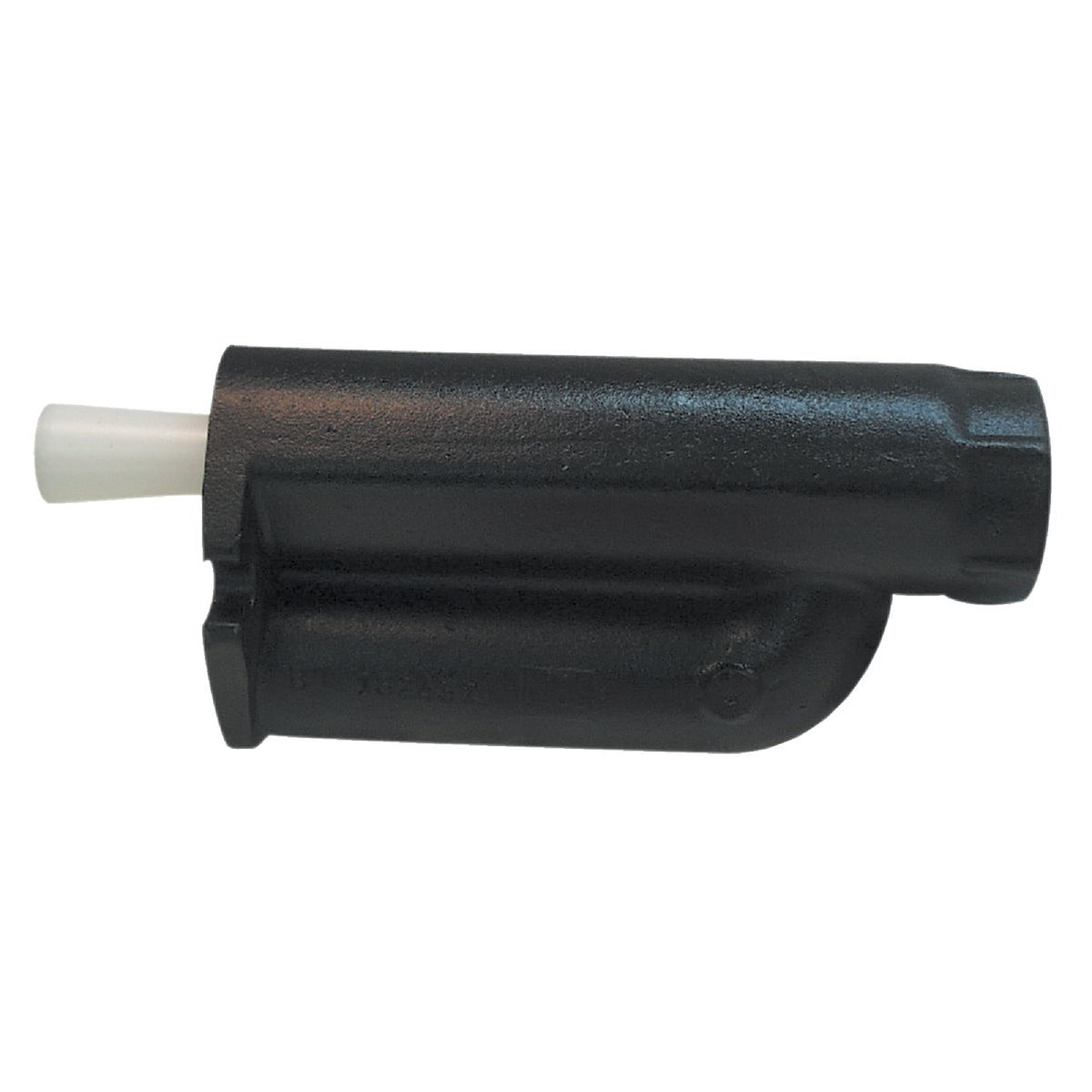

The STAR WATER SYSTEMS DW40E1726 is a deep well ejector assembly designed to lift water from depths of up to 90 feet. It ships as a complete kit including the ejector body, gasket, and mounting bolts, making it a ready-to-install solution for deep well pumping systems. The unit operates on dual voltage, accepting either 115 volts or 230 volts, giving installers flexibility across residential electrical configurations. The pressure switch comes factory preset to the charted discharge pressure, reducing field adjustment time. Licensed pump installers and well service professionals are the primary trade handling this component.

This ejector is intended for deep well applications in residential water supply systems. A minimum 4-inch well casing diameter is required for proper installation. The dual-voltage design makes it compatible with a wide range of existing pump motor configurations without requiring a separate transformer or voltage conversion. Typical installation scenarios include new well pump system setups and direct replacement of worn or failed ejector assemblies in residential submersible or jet pump configurations where the water table is below standard shallow-well limits.

Key Features

• Lifts water from depths of up to 90 feet for deep well applications
• Dual voltage operation at 115 volts or 230 volts for flexible installation
• Complete kit includes ejector, gasket, and bolts — no additional hardware needed
• Pressure switch factory preset to charted discharge pressure, minimizing field calibration
• Requires minimum 4-inch well casing diameter for proper fitment

Compatibility

Designed as an OEM-style deep well ejector replacement for residential jet pump systems requiring a minimum 4-inch well casing and capable of supporting up to 90 feet of lift depth.

Installation Notes

Installation should be performed by a licensed well pump installer or plumber familiar with local well codes and NFPA 70 (NEC) electrical requirements. Disconnect and lock out all power to the pump system before handling any components. Verify well casing diameter is at least 4 inches before proceeding with installation. Do not alter the factory-preset pressure switch setting without consulting the system specifications chart provided with the unit.

Technical Specifications

• Maximum Lift Depth: 90 feet
• Voltage: 115 volts / 230 volts (dual voltage)
• Minimum Well Casing Diameter: 4 inches
• Weight: 6.05 pounds
• Includes: Ejector, gasket, and bolts
• UOM: Each

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: DW40E1726
