Star Water Systems 4H10A10301 Submersible Well Pump 1 Hp

Product Description

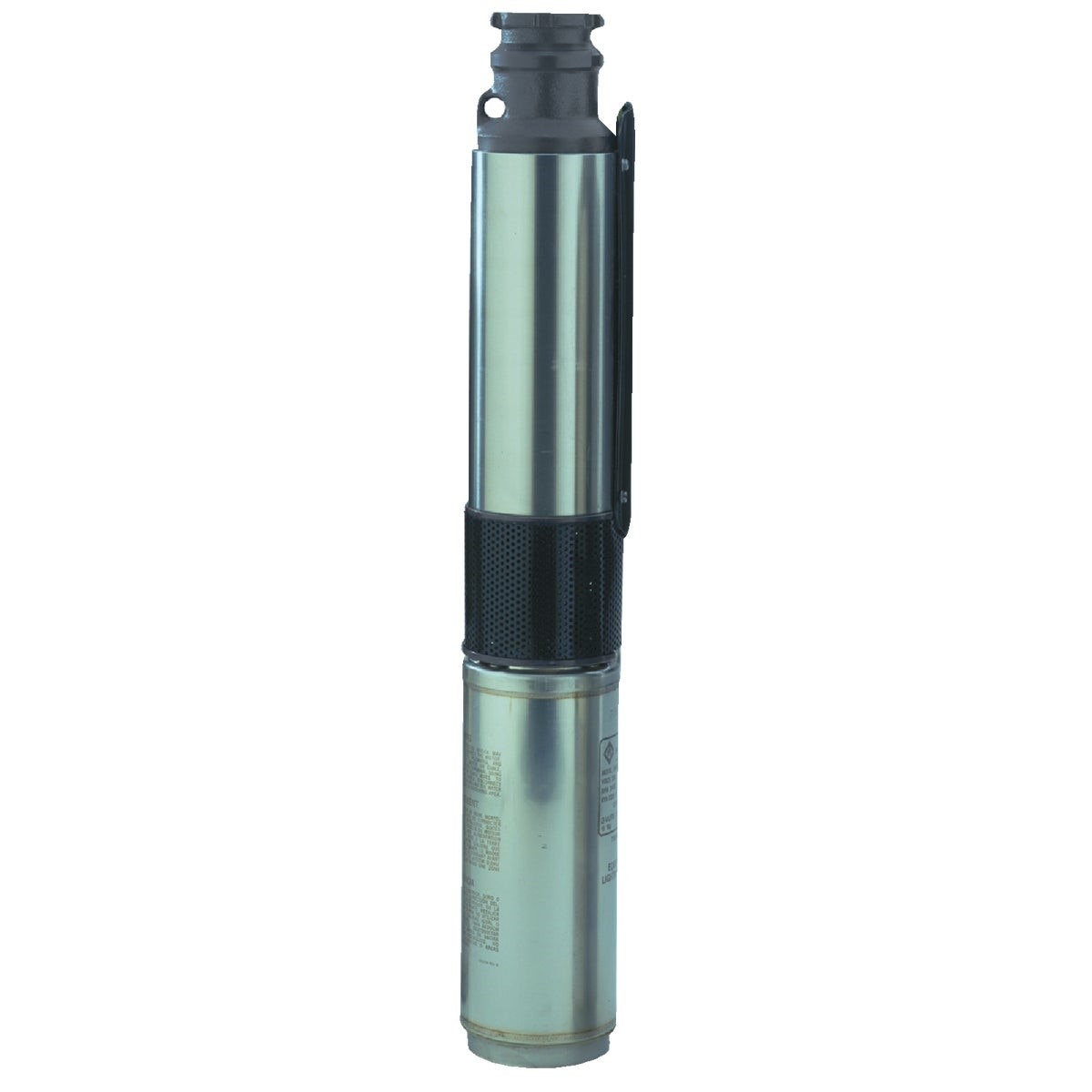

The STAR WATER SYSTEMS 4H10A10301 is a 1 HP submersible well pump built for residential water supply applications. Constructed with a 4-inch diameter stainless steel pump body, motor shell, and drive shaft, this unit is engineered for quiet, economical operation in standard residential wells. It delivers 10 GPM, which meets the typical demand of an average residential home and family. Power is supplied at 230 volts, 3-wire configuration. The pump uses a water-lubricated Franklin motor, a design well recognized among plumbing and well-service contractors for reliable long-term performance in submersible installations.

This pump is intended for 4-inch residential well casings and suits the average single-family home water supply system. The unit ships with heat-shrink splice kits and illustrated installation instructions included in the package, reducing job-site prep time. The cast-iron discharge port measures 1-1/4 inches and incorporates built-in lightning protection. Manufactured by Flint Walling under the Star Water Systems brand, this pump is a common choice for licensed well pump installers and plumbers handling residential groundwater service.

Key Features

• 4-inch diameter stainless steel pump body, motor shell, and drive shaft for corrosion resistance in submersible environments
• 10 GPM flow rate rated for average residential household demand
• Water-lubricated Franklin motor, contractor-recognized design for quiet and economical operation
• 1-1/4 inch cast-iron discharge with built-in lightning protection
• Heat-shrink splice kits and illustrated installation instructions included in package
• 1-year limited warranty

Compatibility

Designed for use in 4-inch residential well casings requiring a 10 GPM submersible pump at 230 volts. Suitable for standard single-family residential water supply systems.

Installation Notes

Installation should be performed by a licensed plumber or certified well pump installer in accordance with local codes and the included illustrated instructions. Disconnect and lock out all electrical power before handling the pump or wiring connections. The 230-volt, 3-wire electrical hookup must comply with NEC requirements and local jurisdiction standards. Use the included heat-shrink splice kit for watertight electrical connections at the pump drop cable.

Technical Specifications

• Horsepower: 1 HP
• Flow Rate: 10 GPM
• Voltage: 230 volts
• Wiring Configuration: 3-wire
• Pump Diameter: 4 inches
• Discharge Size: 1-1/4 inches
• Discharge Material: Cast iron
• Pump Body Material: Stainless steel
• Motor Type: Water-lubricated Franklin motor
• Lightning Protection: Included
• Weight: 33.6 pounds
• Warranty: 1-year limited

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 4H10A10301
