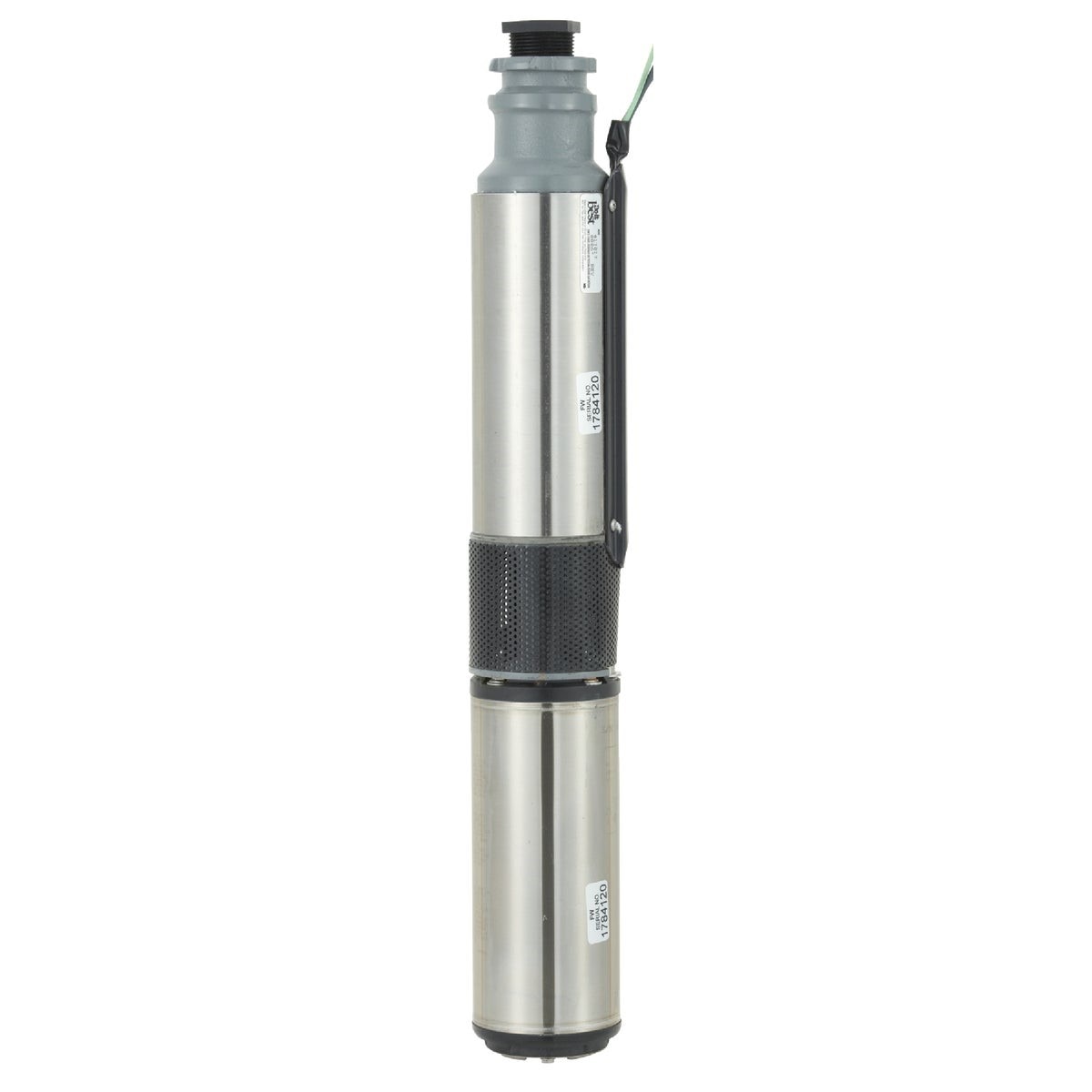

Star Water Systems 4H10A05005 Submersible Well Pump

Product Description

The STAR WATER SYSTEMS 4H10A05005 is a 1/2 HP submersible well pump built for residential water supply applications. Rated at 10 GPM, it delivers consistent flow from various water level depths to the well head. The pump, motor shell, and drive shaft are constructed from 4-inch diameter stainless steel for corrosion resistance and long service life. Operating on 115 volts single-phase power, it is designed for quiet, economical operation. Manufactured by Flint Walling, the unit uses a water-lubricated Franklin motor, a contractor-recognized standard in the well pump industry. The package includes heat-shrink splice kits and illustrated installation instructions.

This pump is sized for the average residential home and family, where 10 GPM capacity meets typical household demand. It is installed in 4-inch or larger well casings and suits standard single-family residential water systems. The cast-iron discharge fitting and built-in lightning protection add durability and electrical safety in field conditions. Licensed well pump contractors and plumbers routinely specify this unit for new installations and direct replacements in residential drilled wells.

Key Features

• 4-inch diameter stainless steel pump, motor shell, and drive shaft
• Water-lubricated Franklin motor for quiet, economical operation
• 10 GPM flow rate sized for average residential household demand
• 1-1/4 inch cast-iron discharge fitting
• Built-in lightning protection
• Heat-shrink splice kits and illustrated installation instructions included
• 1-year limited warranty

Compatibility

Designed as an OEM-style submersible well pump for installation in 4-inch or larger residential well casings requiring a 1/2 HP, 10 GPM, 115-volt single-phase pump.

Installation Notes

Installation should be performed by a licensed well pump contractor or plumber in accordance with applicable local codes and the manufacturer's illustrated instructions included in the package. Disconnect and lock out all electrical power before handling the pump or making any wiring connections. Use the included heat-shrink splice kits for all downhole wire connections to maintain a watertight seal. Do not run the pump dry, as the Franklin motor relies on water lubrication for cooling and bearing life.

Technical Specifications

• Horsepower: 0.5 HP
• Flow Rate: 10 GPM
• Voltage: 115 volts
• Wiring: 2-wire
• Pump Diameter: 4 inches
• Discharge Size: 1-1/4 inches
• Discharge Material: Cast iron
• Pump and Motor Shell Material: Stainless steel
• Motor Type: Water-lubricated Franklin motor
• Weight: 23.6 pounds
• Warranty: 1-year limited

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 4H10A05005
