Star Water Systems 148141 Pump Repair Kit

Product Description

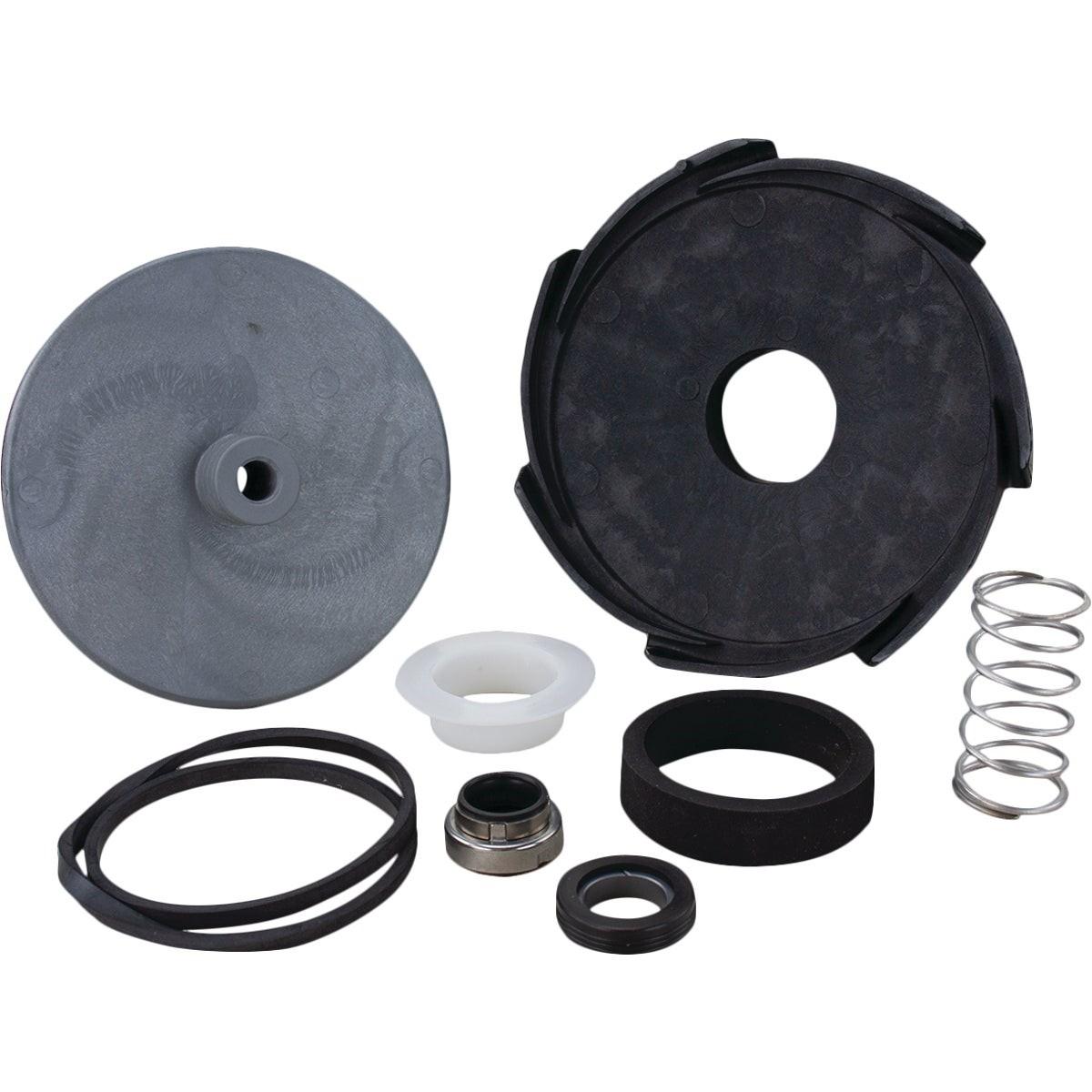

The STAR WATER SYSTEMS 148141 is a repair kit designed for 3/4 HP shallow well pumps and 1/2 HP convertible well pumps. It restores hydraulic performance by replacing the internal components most prone to wear during normal pump service. The kit includes a diffuser, quadraseal, rotary seal, impeller, and diffuser rubber — covering the core wear parts in a single package. Licensed plumbers and pump service technicians use this kit to return a degraded pump to factory-level output without sourcing individual components separately.

This repair kit suits residential well water applications, including shallow well and convertible jet pump configurations. It is applicable to 1/2 HP convertible and 3/4 HP shallow well installations. Typical use involves restoring suction and discharge performance in systems that have experienced reduced flow, pressure loss, or mechanical seal failure. The kit is suited for service calls where the pump housing is intact and only internal wear components require replacement.

Key Features

• Includes diffuser, quadraseal, rotary seal, impeller, and diffuser rubber in a single kit
• Covers 3/4 HP shallow well and 1/2 HP convertible well pump configurations
• Compatible with DIB Private Label, Flint and Walling, and Star jet pump lines
• Single-unit packaging simplifies parts ordering for service calls
• Lightweight at 0.68 pounds for easy transport to job sites

Compatibility

Compatible with 1/2 HP convertible and 3/4 HP shallow well pumps, including DIB Private Label, Flint and Walling, and Star jet pumps.

Installation Notes

Installation should be performed by a licensed plumber or qualified pump service technician. Disconnect and lock out electrical power to the pump before disassembly. Shut off the water supply and relieve system pressure before removing any pump components. Follow local plumbing codes and manufacturer service procedures when replacing internal pump components.

Technical Specifications

• Horsepower (Shallow Well): 3/4 HP
• Horsepower (Convertible Well): 1/2 HP
• Kit Contents: Diffuser, quadraseal, rotary seal, impeller, diffuser rubber
• Weight: 0.68 pounds
• Unit of Measure: Each
• UPC: 00054757100681

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 148141
