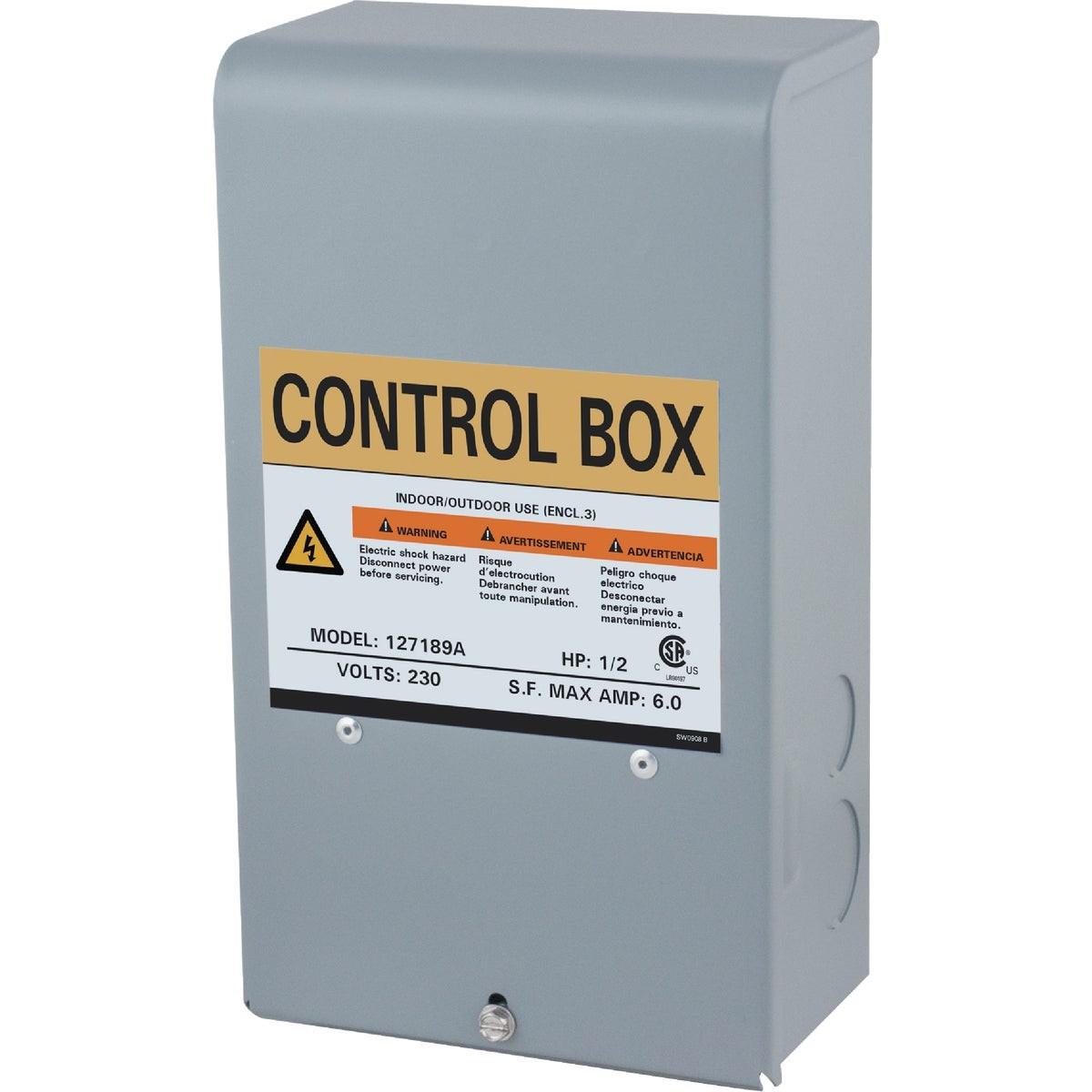

Star Water Systems 127189A Well Pump Control Box 1/2 Hp 230V

Product Description

The STAR WATER SYSTEMS 127189A is a quick-disconnect pump control box designed for 3-wire, 230-volt submersible well pump installations. Rated for use with 1/2 HP, 3/4 HP, and 1 HP submersible pumps, this control box consolidates all electrical components in an above-ground enclosure, keeping them accessible without pulling the pump. The snap-out cover allows fast access for inspection, troubleshooting, and component replacement. A separate 1-1/2 HP standard disconnect configuration is also supported. The unit weighs 0.285 pounds and is sold individually.

This control box is used in residential well water systems where a 3-wire submersible pump requires above-ground motor starting and protection components. It is suited for new installations and retrofit applications where quick-disconnect access is needed to reduce service time. Keeping all components above grade eliminates the need to pull the pump for routine electrical diagnosis, making it a practical choice for well service contractors and plumbers working on residential water supply systems.

Key Features

• Rated for 3-wire, 230-volt submersible well pump wiring configurations
• Compatible with 1/2 HP, 3/4 HP, and 1 HP submersible pump motors
• Quick-disconnect design for fast removal and reinstallation without tools
• Snap-out cover provides rapid access to internal components
• Above-ground component mounting eliminates pump pull for electrical service
• 1-1/2 HP standard disconnect configuration also supported

Compatibility

Designed for use with STAR WATER SYSTEMS 3-wire, 230-volt submersible well pumps rated at 1/2 HP, 3/4 HP, and 1 HP. A 1-1/2 HP standard disconnect configuration is also compatible per manufacturer specifications.

Installation Notes

Installation should be performed by a licensed plumber or well pump contractor familiar with 230-volt single-phase wiring and local electrical code requirements. Disconnect and lock out all power to the pump circuit before opening or replacing the control box. Verify that the pump horsepower rating matches the control box rating before wiring. All wiring must comply with applicable NEC requirements for outdoor or utility enclosures.

Technical Specifications

• Voltage: 230 volts
• Horsepower Range: 1/2 HP, 3/4 HP, 1 HP (quick disconnect); 1-1/2 HP (standard disconnect)
• Wiring Configuration: 3-wire
• Weight: 0.285 pounds
• Sold As: Each

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 127189A
